Introduction

EDOS is a Cisco Cloud provisioning platform used for Zero Touch Provisioning. It automatically provisions the device out of the box and provides a “plug and play” user experience.

Behind the scenes

  1. Service Provider/Distributor creates a Profile before / during the order process to ensure all the MAC addresses get automatically mapped to the profile when order is shipped.
  2. Once customer receives the device and plugs into the network, device calls Cisco Cloud/RC EDOS server.
  3. Cisco Cloud looks up profile based on device’s MAC address, then provides profile to device.
  4. Device is redirected to the SP Provisioning Server.
  5. SP Provisioning Server provides configuration information to device

Sample EDOS Configuration Profile

<?xml version="1.0" encoding="UTF-8"?>

<device>

<flat-profile>

<Primary_DNS>12.45.67.89</Primary_DNS>

<Provision_Enable>Yes</Provision_Enable>

<Resync_On_Reset>Yes</Resync_On_Reset>

<Resync_Periodic>7200</Resync_Periodic>

<Resync_Error_Retry_Delay>30</Resync_Error_Retry_Delay>

<Profile_Rule>http://yourserver.com/$PN/$PSN.xml</Profile_Rule>

</flat-profile>

</device>

Device Profile Setup Flow




Account Setup

Use cisco.com credentials to login to CDA web portal (https://software.cisco.com/software/cda/home) and request “Distributed Customer” role




Create a profile

  1. Login to https://software.cisco.com/software/cda/home using your Cisco account
  2. Navigate to Profile Management and Add Profile
  1. Select the appropriate PID

  2. Select “Create a New Profile”, enter the profile name, upload the profile xml file and click on Add Mapping”



Associate a MAC Address to the Profile

  1. Login to https://software.cisco.com/software/cda/home using your Cisco account
  2. Navigate to MAC Address Management
  3. Enter a MAC Address and click on Validate

  4. When you click on Validate, a pop-up window will appear. Select the MAC Address and click on Proceed

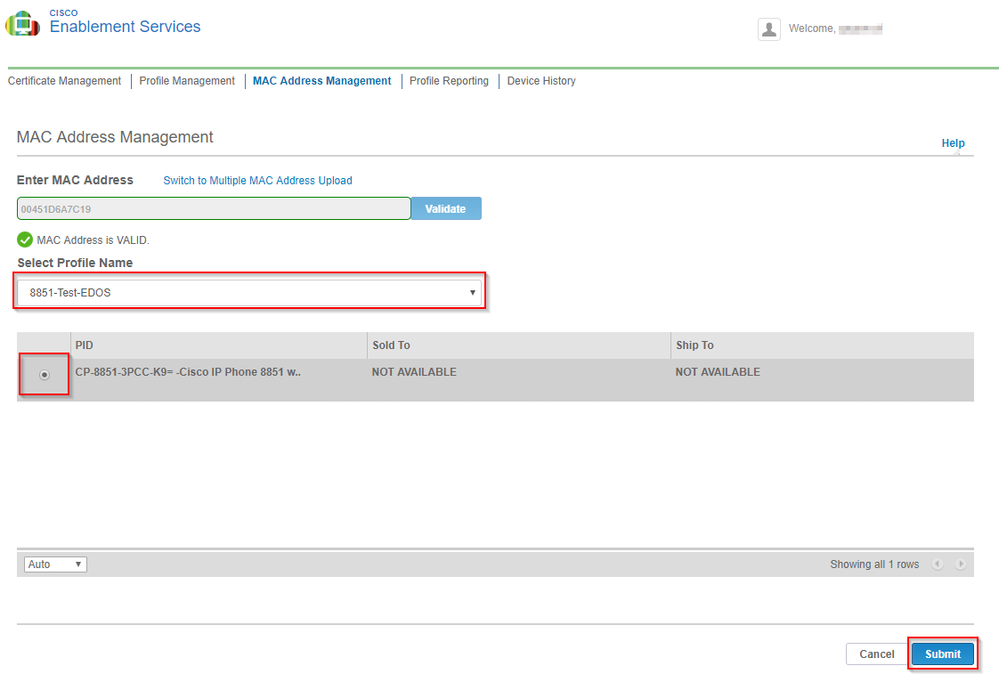

  5. Select the profile name and click on Submit
