We use Sprint as a switched long distance provider. Sprint is configured to prompt for a long distance access code when certain numbers dial long distance, and not prompt for others.
Until I migrated from MGCP to H323, this worked fine. Post migration, all numbers are getting prompted for long distance access codes. This is problematic for certain numbers (fax machines) that are getting prompted to enter a long distance code.
Sprint: Call traces say that when the call comes in, they are seeing the BTN (Billing telephone number) instead of the DID (calling party number) that I should be passing along.
XO (Telco provider): They say that everything should work. I've made sure that my PRI settings match what they were previously (ISDN switch type = NI2, etc).
When I view ISDN q931 debugs, I see the calling party number as it should be.
Here is a test call with q931 debugging enabled (I intentionally replaced area codes with X):
Jun 7 08:32:19: ISDN Se2/0:23 Q931: pak_private_number: Invalid type/plan 0x0 0x0 may be overriden; sw-type 13
Jun 7 08:32:19: ISDN Se2/0:23 Q931: Applying typeplan for sw-type 0xD is 0x2 0x1, Calling num XXX9463091
Jun 7 08:32:19: ISDN Se2/0:23 Q931: Sending SETUP callref = 0x0B30 callID = 0x8E85 switch = primary-ni interface = User
Jun 7 08:32:19: ISDN Se2/0:23 Q931: TX -> SETUP pd = 8 callref = 0x0B30
Bearer Capability i = 0x8090A2
Standard = CCITT
Transfer Capability = Speech
Transfer Mode = Circuit
Transfer Rate = 64 kbit/s
Channel ID i = 0xA9838B
Exclusive, Channel 11
Calling Party Number i = 0x2181, 'XXX9463091'
Plan:
CLV-MDF-RTR-02#ISDN, Type:National
Called Party Number i = 0x80, '1XXX4504372'
Plan:Unknown, Type:Unknown
Jun 7 08:32:19: ISDN Se2/0:23 Q931: RX <- CALL_PROC pd = 8 callref = 0x8B30
Channel ID i = 0xA9838B
Exclusive, Channel 11
CLV-MDF-RTR-02#
Jun 7 08:32:20: ISDN Se2/0:23 Q931: RX <- PROGRESS pd = 8 callref = 0x8B30
Cause i = 0x82FF - Interworking error; unspecified
Progress Ind i = 0x8281 - Call not end-to-end ISDN, may have in-band info
CLV-MDF-RTR-02#
Jun 7 08:32:28: ISDN Se2/0:23 Q931: TX -> DISCONNECT pd = 8 callref = 0x0B30
Cause i = 0x8090 - Normal call clearing
Jun 7 08:32:28: ISDN Se2/0:23 Q931: RX <- RELEASE pd = 8 callref = 0x8B30
Jun 7 08:32:28: ISDN Se2/0:23 Q931: TX -> RELEASE_COMP pd = 8 callref = 0x0B30
Here is my PRI configuration:
!
interface Serial2/0:23
no ip address
encapsulation hdlc
isdn switch-type primary-ni
isdn incoming-voice voice
isdn supp-service name calling
no cdp enable
end
Here is other related voice configuration:
!
isdn switch-type primary-ni
!
voice-card 0
!
voice-card 2
dspfarm
dsp services dspfarm
!
!
voice rtp send-recv
!
voice service voip
fax protocol t38 ls-redundancy 0 hs-redundancy 0 fallback none
h323
call preserve
!
voice class codec 1
codec preference 1 g711ulaw
codec preference 2 g729r8
!
voice class h323 1
h225 timeout tcp establish 3
h225 timeout connect 120
h225 timeout setup 5
h225 display-ie ccm-compatible
!
!
!
voice translation-rule 20
rule 1 // // type any unknown plan any unknown
!
!
voice translation-profile pri-inbound
translate called 1
!
voice translation-profile pri-outbound
translate calling 20
!
!
controller T1 2/0
pri-group timeslots 1-11,24
!
!
!
interface Serial2/0:23
no ip address
encapsulation hdlc
isdn switch-type primary-ni
isdn incoming-voice voice
isdn supp-service name calling
no cdp enable
!
voice-port 2/0/0
!
voice-port 2/0/1
!
voice-port 2/0:23
translation-profile incoming pri-inbound
bearer-cap Speech
!
!
sccp ccm group 1
description Call Manager DSP Resources
associate ccm 1 priority 1
associate ccm 2 priority 2
associate ccm 3 priority 3
associate profile 1 register CLV-MDF-CFB
!
dspfarm profile 1 conference
description Conferencing for Call Manager
codec g711ulaw
codec g711alaw
codec g729ar8
codec g729abr8
codec g729r8
codec g729br8
maximum sessions 2
associate application SCCP
!
dial-peer voice 1 pots
description Incoming T1/PRI calls
incoming called-number .
direct-inward-dial
!
dial-peer voice 2 voip
description Incoming voip calls
incoming called-number .
voice-class codec 1
voice-class h323 1
dtmf-relay h245-alphanumeric
no fax-relay sg3-to-g3
fax rate 14400
no vad
!
dial-peer voice 10 pots
preference 1
destination-pattern 9T
port 2/0:23
!
dial-peer voice 101 voip
preference 1
destination-pattern [1-8]...
modem passthrough nse codec g711ulaw
session target ipv4:10.1.3.11
voice-class codec 1
voice-class h323 1
dtmf-relay h245-alphanumeric
no fax-relay sg3-to-g3
fax rate 14400
no vad

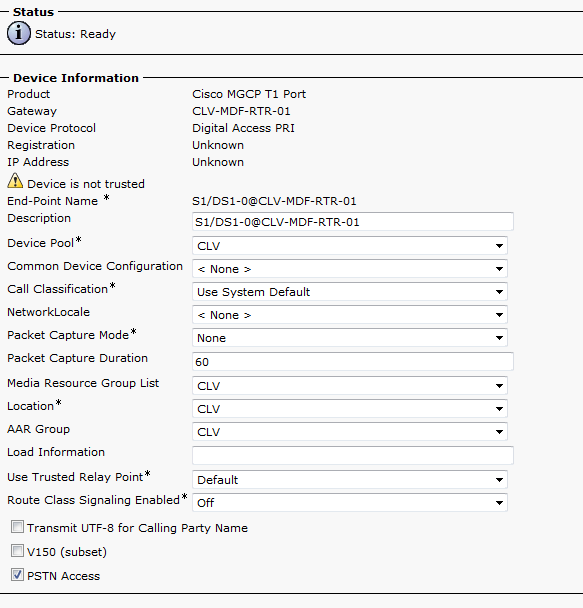

I've attached screenshots of the gateway when it was configured for MGCP
I'm pretty much lost.
