Multi line support MRA

[kdecker01]

Hello! We have implemented the use of MRA/Expressway in our org & have several 8865 series phones deployed with our users, these users have more than 1 line/number tied to their phone. The main 'user' line rings & allows for calls just fine but a secondary line on the phone does not ring nor can you make any outbound calls, when you dial a number it simply just sits at the number entry screen. Not to sure where to look first but any help would be greatly appreciated!

TYIA!

[Jaime Valencia]

Do you meet the minimum requirements regarding product versions for multiline?

If so, have you enabled path headers?

[Roger Kallberg]

Recommend to look through these links for needed steps to enable multi line support in MRA.

https://community.cisco.com/t5/ip-telephony-and-phones/mra-multiline-phone/m-p/3774701#M374381

https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/expressway/config_guide/X12-5/exwy_b_mra-expressway-deployment-guide/exwy_b_mra-expressway-deployment-guide_chapter_0111.html

[Chris Deren]

Is "SIP Path Headers"  enabled on Expressway-C under Configuration --> Unified Communications --> Advanced

[seanr1701]

Thanks Chris!  This fixed our problem, main number worked, others failed inbound/outbound but were configured correctly in CUCM.  Have 8841 phones with MRA 8.11.

+5

[Thats Mr Ted]

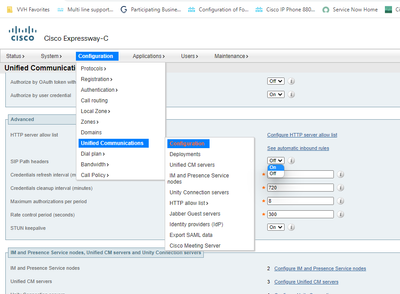

Thank you this resolved the issue for me as well. The location was slightly different so I've attached a screen shot for others.
