Since version 2.15, TRex supports SR-IOV support for XL710 and X710. I would like to describe how we tested this, and the performance we have seen.
What is SR-IOV

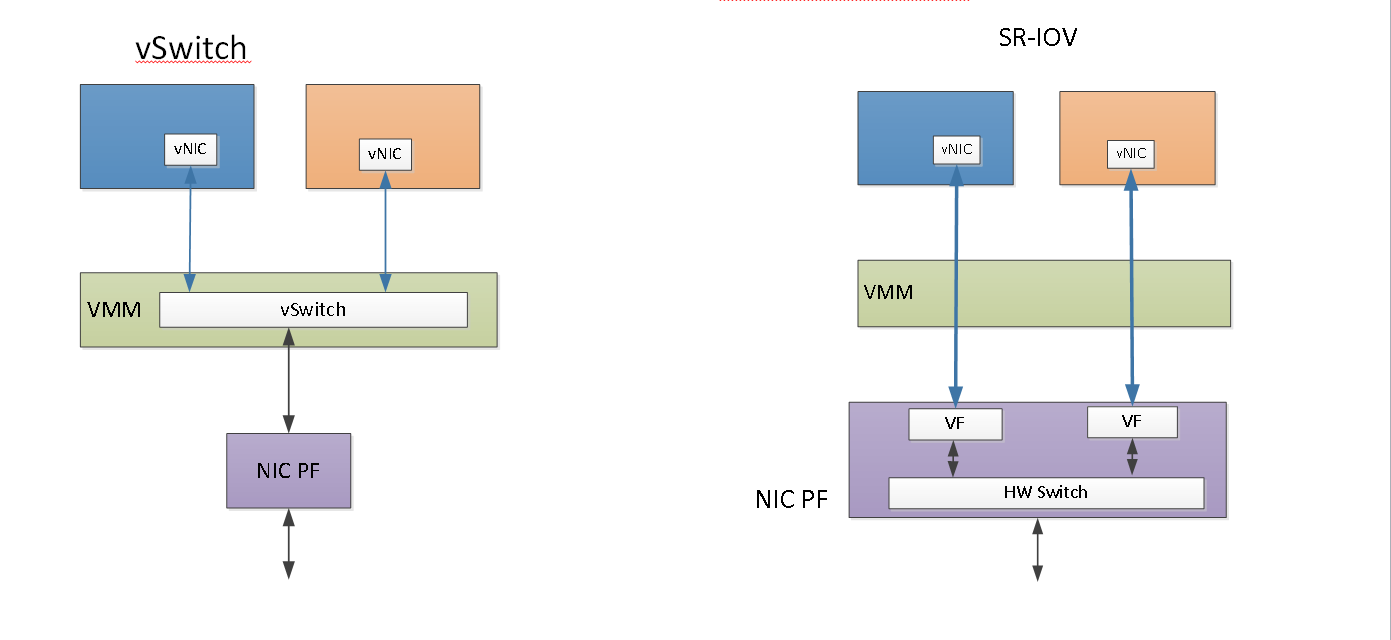

SR-IOV (Single root IO virtualization) is a specification that allows a PCIe device to appear to be multiple separate physical PCIe devices. For network cards, this means the ability of one card to appear as if it was few separate cards called virtual functions (VFs), each with its own PCI address. This is particularly useful on virtual machines environments, where you have one NIC, and you want each VM to view it as if it is the only consumer.
There are many resources about SR-IOV in the web. The below link for example gives very good explanation:
FAQ for Intel® Ethernet Server Adapters with SR-IOV


How we used SR-IOV
Good tutorial about SR-IOV configuration on Linux can be found in the following link:
SR-IOV and PCI device passthrough traps & tricks | Linux kernel ramblings and more
We used Centos 7. The steps we had to do to make SR-IOV work were:
- Load the latest i40e driver source from here: Download Intel® Network Adapter Driver for PCIe* Intel® 40 Gigabit Network Connections Under Linux*
- Compile the driver, and install on your system
- Add following line: “options i40e max_vfs=x,y” to some file in “/etc/modprobe.d/”. x and y should be replaced with the number of VFs you want create for each port of the NIC (each PF). For example, putting 2,3 will create 2 VFs on one port, and 3 on the second.
- Add the following file /etc/sysconfig/modules/i40e.modules, with content as described below:
#!/bin/sh
rmmod i40e >/dev/null 2>&1
exec /sbin/modprobe i40e >/dev/null 2>&1 - Reboot the system.
Now, when running:
sudo ./dpdk_setup_ports.py -s
You should see lines like this:
0000:04:02.0 'XL710/X710 Virtual Function' drv=igb_uio unused=i40evf,vfio-pci,uio_pci_generic
These are the ports that should be used in TRex config file.
TRex stateful performance
Using the following command, running on x710 card with VF driver, we can see that TRex can reach 30GBps, using only one core. We can also see that the average latency is around 20 usec, which is pretty much the same value we get on loopback ports with x710 physical function without VF.
sudo ./t-rex-64 -f cap2/http_simple.yaml -m 40000 -l 100 -c 1 –p
-Per port stats table
ports | 0 | 1
-----------------------------------------------------------------------------------------
opackets | 106573954 | 107433792
obytes | 99570878833 | 100374254956
ipackets | 107413075 | 106594490
ibytes | 100354899813 | 99590070585
ierrors | 1038 | 1027
oerrors | 0 | 0
Tx Bw | 15.33 Gbps | 15.45 Gbps
-Global stats enabled
Cpu Utilization : 91.5 % 67.3 Gb/core
Platform_factor : 1.0
Total-Tx : 30.79 Gbps
Total-Rx : 30.79 Gbps
Total-PPS : 4.12 Mpps
Total-CPS : 111.32 Kcps
Expected-PPS : 4.11 Mpps
Expected-CPS : 111.04 Kcps
Expected-BPS : 30.71 Gbps
Active-flows : 14651 Clients : 255 Socket-util : 0.0912 %
Open-flows : 5795073 Servers : 65535 Socket : 14652 Socket/Clients : 57.5
drop-rate : 0.00 bps
current time : 53.9 sec
test duration : 3546.1 sec
-Latency stats enabled
Cpu Utilization : 23.4 %
if| tx_ok , rx_ok , rx check ,error, latency (usec) , Jitter max window
| , , , , average , max , (usec)
----------------------------------------------------------------------------------------------------------------
0 | 5233, 5233, 0, 0, 19 , 580, 5 | 37 37 37 40 39 38 36 26 37 38 36 37 27
1 | 5233, 5233, 0, 0, 22 , 577, 5 | 38 40 39 38 39 39 40 29 39 39 40 38 27
TRex stateless performance
Using stateless with one core with x710 VF:
sudo ./t-rex-64 -i -c 1
trex>portattr
Port Status
port | 0 | 1
-------------------------------------------------------------
driver | net_i40e_vf | net_i40e_vf
description | XL710/X710 Virtual | XL710/X710 Virtual
With the console command:
start -f stl/imix.py -m 8mpps --force --port 0
We can see, that we can reach 8M packet per second, which in this case is around 24.28 Gbit/second.
Global Statistics
connection : localhost, Port 4501 total_tx_L2 : 24.28 Gb/sec
version : v2.15 total_tx_L1 : 25.55 Gb/sec
cpu_util. : 80.6% @ 1 cores (1 per port) total_rx : 24.28 Gb/sec
rx_cpu_util. : 66.8% total_pps : 7.99 Mpkt/sec
async_util. : 0.18% / 1.84 KB/sec drop_rate : 0.00 b/sec
queue_full : 3,467 pkts
Port Statistics
port | 0 | 1 | total
----------------------------------------------------------------------
owner | ibarnea | ibarnea |
link | UP | UP |
state | TRANSMITTING | IDLE |
speed | 40 Gb/s | 40 Gb/s |
CPU util. | 80.6% | 0.0% |
-- | | |
Tx bps L2 | 24.28 Gbps | 0.00 bps | 24.28 Gbps
Tx bps L1 | 25.55 Gbps | 0 bps | 25.55 Gbps
Tx pps | 7.99 Mpps | 0.00 pps | 7.99 Mpps
Line Util. | 63.89 % | 0.00 % |
--- | | |
Rx bps | 0.00 bps | 24.28 Gbps | 24.28 Gbps
Rx pps | 0.00 pps | 7.99 Mpps | 7.99 Mpps
---- | | |
opackets | 658532501 | 0 | 658532501
ipackets | 0 | 658612569 | 658612569
obytes | 250039721918 | 0 | 250039721918
ibytes | 0 | 250070124150 | 250070124150
tx-bytes | 250.04 GB | 0 B | 250.04 GB
rx-bytes | 0 B | 250.07 GB | 250.07 GB
tx-pkts | 658.53 Mpkts | 0 pkts | 658.53 Mpkts
rx-pkts | 0 pkts | 658.61 Mpkts | 658.61 Mpkts
----- | | |
oerrors | 0 | 0 | 0
ierrors | 0 | 15,539 | 15,539
status: /
Press 'ESC' for navigation panel...
For any issues, or questions, please respond here, or email the TRex dev team at our Google Groups
