Cannot enable model-driven streaming telemetry on Cisco IOS XE 16.12.3

[igorvurdelja]

Hello everyone,

I am using CSR1000v (IOS XE 16.12.3) in GNS3 and I have issues while trying to enable streaming telemetry.

I have followed page: Programmability Configuration Guide, Cisco IOS XE Gibraltar 16.12.x.

First issue that I am facing is that the output of command

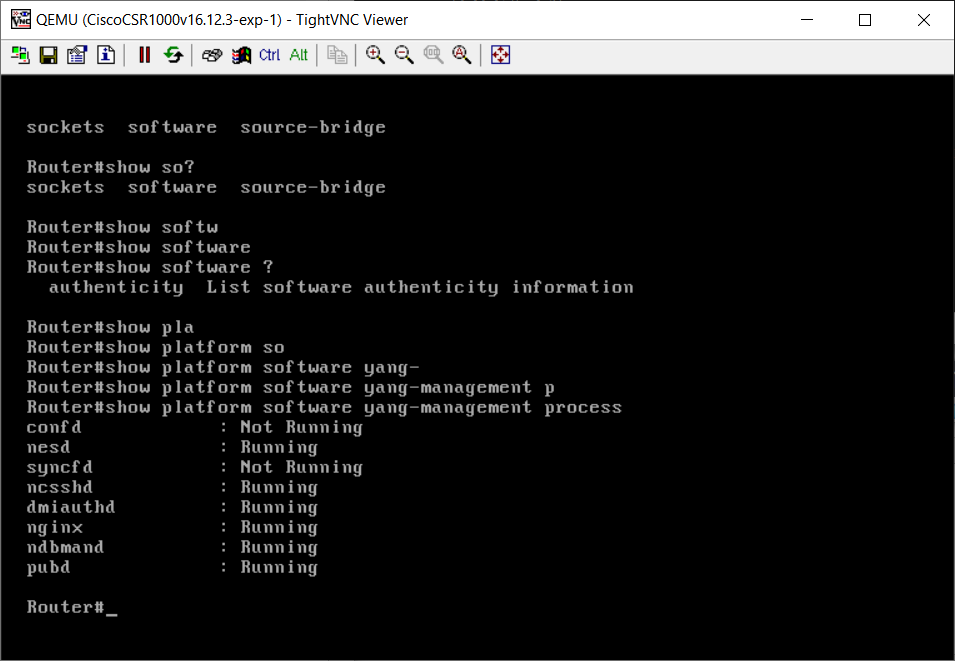

show platform software yang-management process

is not as expected. In my case two processes are not started (confd and syncfd):



Anyway, I have continued to follow the process described on the page. When I finished setting up streaming telemetry (as described on the page) I checked output of the command:

show telemetry ietf subscription 1 detail

Output was:

Apparently schema is not available and streaming telemetry won't work.

I didn't manage to find what this error means, nor how to fix it.

Do you have any ideas?

Best regards,

Igor

[mashrafi]

Hi

Can you share the configs and output sessions in text file?

[igorvurdelja]

Hi,

In archive (running-congif.zip) you can find output of command: show running-config.

Additionally I have tried to connect to device via Cisco Yang Suite and connection to NETCONF failed. Please see image below.

[igorvurdelja]

Hi,

Do you have any updates? Do you need anything else?
