No Internet Access?

I have a test lab environment at home. I have one Cisco 1841 router and a Zyxel Zywall USG 20.

The Zywall connects to my ISP. The Cisco router is behind that.



The Zywall is on the 10.10.10.0/24 network (10.10.10.1)



Router setup:

-fa0/0 10.10.10.254 255.255.255.0 (directly connected to my Zywall)

       -no shut

-fa0/1 10.10.11.254 255.255.255.0 (directly connected to my laptop)

       -no shut

-No routing protocols are configured on this router (eigrp, rip, ospf, etc...)



Why can't I get out to the internet with my laptop directly connected to the router with static IP of 10.10.11.1/24?

22 REPLIES 22
VIP Mentor

Re: No Internet Access?

Hello,



you probably need to configure NAT on your Cisco router. Add the below to your configuration:



interface FastEthernet0/0

ip nat outside

!

interface FastEthernet0/1

ip nat inside

!

ip nat inside source list 1 interface FastEthernet0/0 overload

!

access-list 1 permit 10.10.11.0 0.0.0.255

!

ip route 0.0.0.0 0.0.0.0 FastEthernet0/0

VIP Mentor

Re: No Internet Access?




@Georg Pauwen wrote:



ip route 0.0.0.0 0.0.0.0 FastEthernet0/0


Georg - Specifying a more of a specific static route to would cut down on unnecessary arp requests
ip route 0.0.0.0 0.0.0.0 fa0/0 10.10.10.1



kind regards
Paul

Please rate and mark posts accordingly if you have found any of the information provided useful.
It will hopefully assist others with similar issues in the future
Beginner

Re: No Internet Access?

Isn't NAT for routing internal private IP address out to the internet (Public IP address)?



Why would I use NAT when I'm using private IP addresses on both sides of the router? Remember my FireWall is facing the internet and then my router is behind that.



I can ping both sides of the router 10.10.11.254/24 and 10.10.10.254/24.



I can't ping the firewall 10.10.10.1/24

Hall of Fame Master

Re: No Internet Access?

There are at least 2 probable issues that may be causing your problem:

1) the firewall is probably not aware of the subnet where your PC is connected. It needs a route to that subnet. Or you need to configure nat so that the PC address looks like part of the subnet connecting the firewall and your router.

2) the firewall is probably not configured to perform address translation for the address of your PC. If you choose to add a route on the firewall for the subnet of your PC then you also need to add address translation for that subnet.



HTH



Rick

If you found this post helpful, please let the community know by clicking the helpful button!
By doing so, and until end of January, you are helping Doctors Without Borders
Beginner

Re: No Internet Access?

Getting closer... I can almost taste it!

After adding the static route to the new subnet (10.10.11.0/24) in the Firwall, I'm able to PING the Firewall's private (internal) IP address from my laptop. I still need to setup NAT for the 10.10.11.0/24 network in the Firewall.

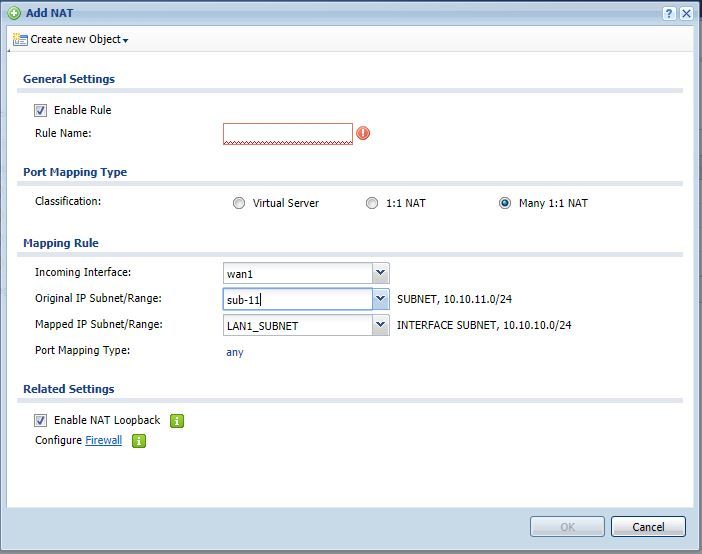

I've never done this before on the Zywall USG 20. I'm not sure of the terms it's asking me.


VIP Mentor

Re: No Internet Access?

Hello,



you need to create a new object for the 10.10.11.0/24 network and select that from the drop down list:



https://support.zyxel.eu/hc/en-us/articles/360001390934-NAT-Rule-Configuration-on-a-USG-Port-Forwarding-



If you configure the NAT on the 1841, you don't need to add anything on the Zyxel except a static route to the 10.10.11.0/24 network, so that is probably the easier option.

Beginner

Re: No Internet Access?

I followed your NAT directions to a "T" but I'm still not able to get out to the internet.









VIP Mentor

Re: No Internet Access?

Hello,



with the 1841 configured for NAT, can you ping the 10.10.11.0 network from the Zyxel ?



To be sure you configured it correctly, post the amended configuration of the 1841 again including the NAT part.

Beginner

Re: No Internet Access?

I can not PING the 10.10.11.0/24 (.254 or .1) network from a workstation that is on the 10.10.10.0/24 network. I can PING the FW (10.10.10.1) from a workstation that is on the 10.10.11.0/24.

Lets recap my setup in case we have some new viewers tuning in.

My setup so far:

  • I have a internet facing Firewall (Zywall USG 20) w/ a LAN IP of 10.10.10.1/24.
  • I also have a Cisco 1841 route connected to the Firewall w/ a IP 10.10.10.254/24. The other network is 10.10.11.0/24
  • I have a static route on the Firewall pointing to the 10.10.11.0/24 using the port that has the IP 10.10.10.254
  • I have NAT setup on the Cisco 1841 w/ an access list allowing the 10.10.11.0/24 to go to the 10.10.10.0/24 network

What else is there to do?

VIP Mentor

Re: No Internet Access?

Hello,



you must be missing something basic, post the full config of the 1841 again as it is currently configured.

Hall of Fame Master

Re: No Internet Access?

There has been some discussion about configuring the firewall to translate the addresses for network 10.10.11.0 (and to route to that network) and in some respects I consider this to be the more traditional and better solution. But there has also been discussion about configuring the 1841 to translate the 10.10.11.0 addresses and I believe that this is the approach currently being attempted by the original poster. (please correct me if I am not correct about that)



If the 1841 is correctly translating addresses for traffic originated in 10.10.11.0 using the router address in 10.10.10.0 then the firewall should not see anything from 10.10.11.0 and therefore has no need of translation or routing for that subnet. If traffic from that subnet is not working then it suggests that the address translation is not correctly configured. I agree that it would be very helpful to see the complete current running config.



HTH



Rick

If you found this post helpful, please let the community know by clicking the helpful button!
By doing so, and until end of January, you are helping Doctors Without Borders
Beginner

Re: No Internet Access?

Here is my running config on the Cisco 1841.



Also just to add a note, I can PING the WAN side of the Zywall (Public IP address) from the 10.10.11.0/24 network. I'm getting closer I just don't know what I'm missing.



R1#sh run
Building configuration...

Current configuration : 1141 bytes
!
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R1
!
boot-start-marker
boot-end-marker
!
enable secret 5 $1$OUBD$XFT4F6CbXxRlBO1bhKVAR0
!
no aaa new-model
!
resource policy
!
ip cef
!
!
!
!
no ip domain lookup
!
!
!
!
!
!
interface FastEthernet0/0
ip address 10.10.10.254 255.255.255.0
ip nat outside
duplex auto
speed auto
!
interface FastEthernet0/1
ip address 10.10.11.254 255.255.255.0
ip nat inside
duplex auto
speed auto
!
interface Serial0/0/0
no ip address
shutdown
no fair-queue
!
ip route 0.0.0.0 0.0.0.0 FastEthernet0/0
!
!
ip http server
no ip http secure-server
ip nat inside source list 1 interface FastEthernet0/0 overload
!
access-list 1 permit 10.10.11.0 0.0.0.255
!
!
!
control-plane
!
!
banner motd ^C
##########################################################

UNAUTHERIZED ACCESS TO THIS ROUTER IS PROHIBITED!!!

##########################################################
^C
!
line con 0
exec-timeout 0 0
password Password123
logging synchronous
login
line aux 0
line vty 0 4
login
!
scheduler allocate 20000 1000
end

R1#

VIP Mentor

Re: No Internet Access?

Hello

It looks like now after adding a static route on that FW you now have reachabilty to the 10.10.11.0/24 so  If your are natting on the Zywall then you dont need nat on the rtr1 so remove it let the Zywall fw to this.



You just now need to create a nat rule for that subnet 10.10.110/24 on the FW as explained before and you should be good to go.



kind regards
Paul

Please rate and mark posts accordingly if you have found any of the information provided useful.
It will hopefully assist others with similar issues in the future
Beginner

Re: No Internet Access?

Last time I made these settings it brought down the 10.10.10.0/24 network.
