Overview

OpenDaylight (ODL) is a collaborative, open-source project used to advance software-defined networking (SDN). OpenDaylight is a community-led, industry-supported framework consisting of code and blueprints. Using this framework, you can accelerate process adoption, foster innovation, reduce risk, and create a more transparent approach to SDN. OpenDaylight can be a core component within any SDN architecture. Building on open-source SDN and NFV controllers enables users to reduce operational complexity, extend the life of their existing infrastructure hardware, and enable new services and capabilities only available with SDN.

Check it out here: https://dcloud-cms.cisco.com/demo/odl-nitrogen-apps-8n-v1

Scenarios

• Scenario 1: Explore ODL Features
• Scenario 2: Explore DLUX
• Scenario 3: Install BGP Pathman Application
• Scenario 4: Enable OpenFlow in Karaf
• Scenario 5: Install OpenFlow Manager Application
• Scenario 6: Explore Pathman Segment Routing
• Scenario 7: Explore netACL Application
• Scenario 8: Explore Yangman

Requirements

Required	Optional
Laptop	Cisco® AnyConnect®

Components

• Cisco VIRL
• XRV 6.2.1
• ODL Nitrogen
• PC Workstation at 198.18.133.252
  • Includes PuTTY with shortcut for ODL host
  • VM Maestro with working VIRL file
  • Chrome with some extensions and Postman

Features

Cisco VM Maestro	Flexible network layout and connections Intuitive interface for creating network configurations Run user interface locally and perform computations in the cloud
Cisco VIRL	Virtual environment for building network topologies Simulation of networking components Capable of running a range of virtual machines (VMs) running Cisco operating systems (IOS-XE, IOS Classic, IOS-XR, and NX-OS) Support for third-party VMs Capture and analyze network traffic at any node Validate configurations prior to physical deployment

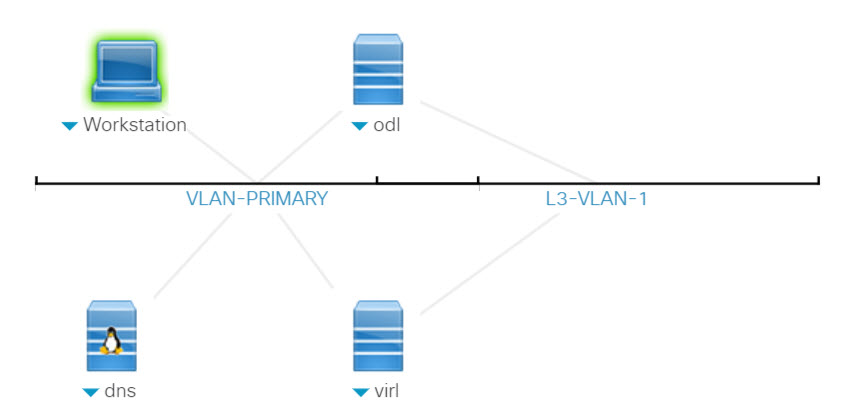

Topology
