I m not able to login via Jabber from outside using MRA , exp-c and exp-e , getting cannot open the page , try again

[Ibrahim Jamil]

Hi Guys

pls find attachment 's

Inside jabber works fine

so far , CUCM to EXP-C has tls connection = status = Active

the MRA zone is active between EXP-C and EXP-E , status = Green

the outside jabber user has the below nslookup:

> set type=srv
> _collab-edge._tls.abc.com
Server: <Public DNS>
Address: A.B.C.D

_collab-edge._tls.abc.com SRV service location:
priority = 1
weight = 1
port = 8443
svr hostname = EXP-E.abc.com
>

getting the below logs in exp-e: , 192.168.64.40 is exp-c

2018-12-29T08:44:48.037+03:00 sshdpfwd[12212]: Event="sshd" Module="openssh" Level="INFO" Detail="Disconnected from 192.168.64.40 port 32714" UTCTime="2018-12-29 05:44:48"
2018-12-29T08:44:48.037+03:00 sshdpfwd[12212]: Event="sshd" Module="openssh" Level="INFO" Detail="Received disconnect from 192.168.64.40 port 32714:11: disconnected by user" UTCTime="2018-12-29 05:44:48"
2018-12-29T08:44:47.899+03:00 sshdpfwd[12210]: Event="sshd" Module="openssh" Level="INFO" Detail="User child is on pid 12212" UTCTime="2018-12-29 05:44:47"
2018-12-29T08:44:47.898+03:00 sshdpfwd[12210]: Event="sshd" Module="openssh" Level="INFO" Detail="Accepted publickey for _pfwd from 192.168.64.40 port 32714 ssh2: RSA+cert SHA256:7/oY3dr9BmdGfUvK5smTMwuZ8CEdYw5Y4OZsxtwr3Q8" UTCTime="2018-12-29 05:44:47"
2018-12-29T08:44:47.898+03:00 sshdpfwd[12210]: Event="sshd" Module="openssh" Level="INFO" Detail="Authorized by X509(rsa) : OU=Temporary Certificate aaab84c0-f7b6-42ef-bc40-94c7fa9f3418,O=Temporary Certificate aaab84c0-f7b6-42ef-bc40-94c7fa9f3418,CN=EXP-C.abc.com" UTCTime="2018-12-29 05:44:47"

thanks all

[Jaime Valencia]

DUPLICATE

https://community.cisco.com/t5/telepresence-and-video/i-m-not-able-to-login-via-jabber-from-outside-using-mra-exp-c/m-p/3770380

[Ibrahim Jamil]

Hi Jaime

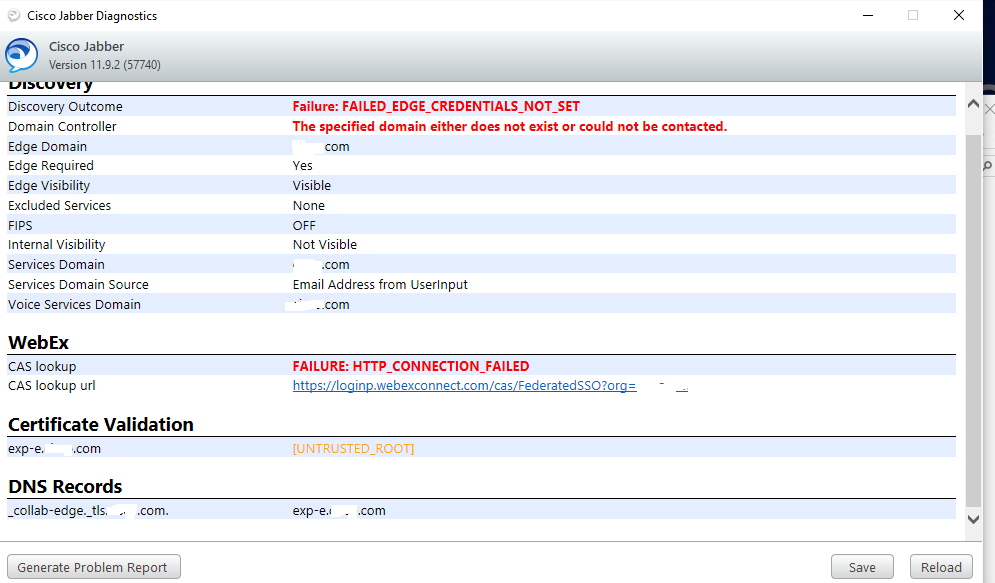

added 2nd Attachment , from jabber client CRL shif D , pls try to help :)
