Videoconference Proxy configuration with WPAD

p-calcaterra
Level 1
Level 1

Hi.

We have installed Cisco Web Security Appliance S695 version 14.5.0-537 as http proxy server with LDAP authentication.

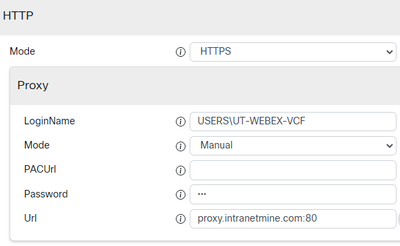

If we configure a videoconference SX20 version CE9.15.15.4 with manual proxy as showed in the following screenshot, the authentication works fine and the SX20 reaches the control hub on cloud:

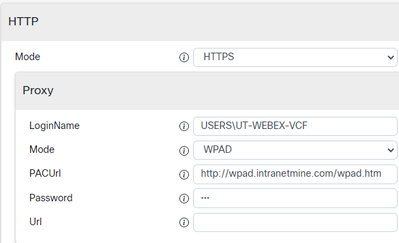

Instead, if we use the WPAD configuration, as showed in the following screenshot, the SX20 does not try to authenticate itself, so it can reach the control hub only if the proxy authentication is turned off:


What is wrong?
Do I have to introduce something in the wpad script?
(Note that wpad script works fine with all the other authenticated proxy clients)

Sincerly,
Paolo C.
