Jason Burns


    1.  Verify Hostname and Settings


    Certificates are based on names. Make sure the names are correct before starting.


    From SSH CLI
    admin: show web-security
    Subject: CN=CUCM7-PUB.bbbburns.lab, OU=TAC, O=Cisco, L=RTP, ST=North Carolina, C=US
    X509v3 Subject Alternative Name:
                DNS:CUCM7-PUB.bbbburns.lab, DNS:CUCM7-Pub


    Use CLI to change these settings if desired
        In the next example we move to BXB, and set an Alternate name of “ThePub” so we can type that into our browser
    admin: set web-security TAC Cisco BXB Massachusetts US ThePub


    After running "set web-security" Tomcat must be restarted for the new certificate to be used when accessing CCMAdmin and CCMUser.


    admin: utils service restart Cisco Tomcat

    2.  Generate and Download CSR

    OS Admin > Security > Certificate Management > tomcat.pem > Generate CSR
    Download CSR (CUCM7-Pub.csr)




    Note: Prior to CUCM 8.0(3), these Tomcat CSRs were generated with 1024 bit RSA keys. With the resolution of defect


    CSCso62711 Cert Manager should generates Tomcat CSR using RSA 2048 instead of 1024


    CUCM in versions 8.0(3) and later will generate a 2048 bit key / CSR for Tomcat. This defect currently only addresses Tomcat in 8.0(3). Other types of CSRs (like CallManager) will be addressed in future versions. Follow defect CSCtn01236 for 2048 bit updates.

    3.  Submit CSR to CA


    Open the CSR file downloaded from the previous step (CUCM7-Pub.csr in this example) in Notepad and copy the entire contents including the ---BEGIN CERTIFICATE REQUEST--- and ---END CERTIFICATE REQUEST-- lines.


    If your CA is Windows 2k3
    https://<CA Server Name: In my example JASBURNS-AD>/certsrv > Advanced Certificate Request


    Paste the contents into this window to submit the request.

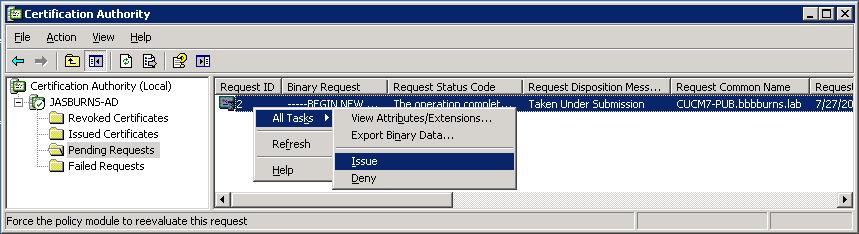

    4.  CA Approves CSR


    This is where the magic happens.
    The CA inspects the CSR and determines if the person submitting the CSR really owns CUCM7-PUB.bbbburns.lab
    With Verisign or GoDaddy this step will require payment, and email or maybe even human verification




    5.  Server Admin Downloads Issued Cert

    With Win2k3 go to CA MMC > Issued Certificates > Copy to file > Base-64 > (CUCM7-Pub.bbbburns.lab.cer)

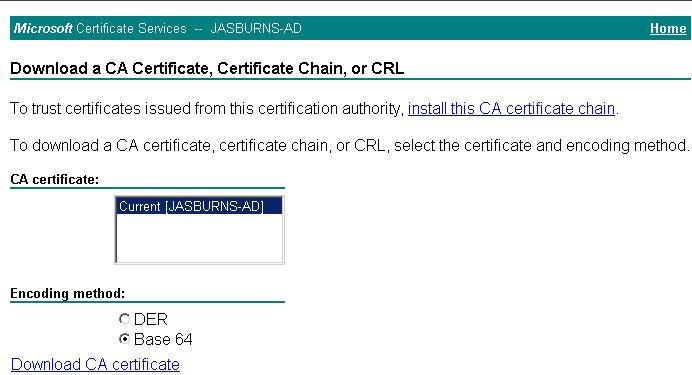

    6.  Server Admin downloads CA Cert


    The Server Admin must build a complete chain of certs, so needs to download the root CA cert
    https://<CA Server Name: In my example JASBURNS-AD>/certsrv > Download CA Cert > Base-64 > (jasburns-ad_PEM.cer)

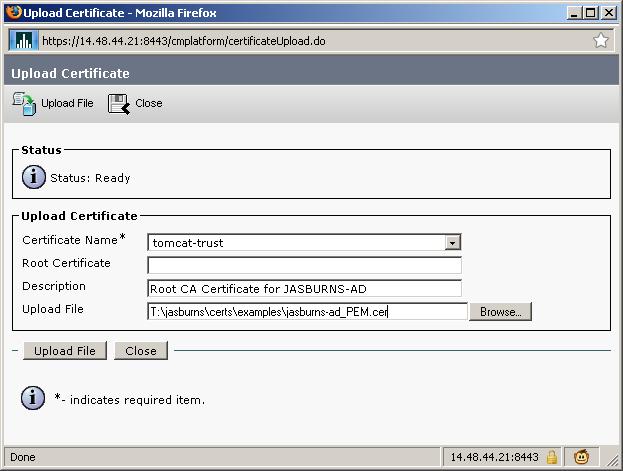

    7. Server Admin Uploads Root Certificate(s) as tomcat-trust


    CUCM Server needs to have all certificates in the chain uploaded, starting at the top (root).




    Note that the name of the file uploaded is jasburns-ad_PEM.cer. This is a Base64 encoded PEM file. Once it gets uploaded to CUCM though it will show up with filename JASBURNS-AD.pem. CUCM changes the name of the file to <SUBJECT CN>.pem.


    7b.  Uploading an intermediate certificate

    This step is only necessary if the Certficate Authority (CA) has provided a signed certificate with multiple certificates in the certificate chain as shown.

    multi-tier cert.png

    After uploading the root certificate in Step 7, export the intermedia certificate and upload it as a Tomcat-trust also while specifying the filename (minus the extension) of the root certificate in the "Root Certificate" field.


    multi-tier cert2.png


    If there are more intermediate certificates in the chain, each one will need to be uploaded in order until finally uploading the signed certificate as shown in Step 8.


    The purpose here is to build a chain of certificates. We upload the root certificate and leave the root cert field blank. When we upload the 1st intermediate certificate we put the file name of the root certificate in the root cert field. If there is 2nd intermediate, we put the name of the 1st intermediate in the root cert field. This builds the chain of trust that can be followed from the identity certificate to the root certificate.

    8.  Server Admin Uploads Identity Certificate as tomcat


    This is the identity certificate issued by the CA.
    Complete the cert chain by specifying .pem root cert. Note that the name below is JASBURNS-AD.pem. That's because I went to the OS Admin Certificate page to get the name of the newly uploaded tomcat-trust certificate from the last step. This is VERY important.




    The root certificate you specify here could be the name of the root cert, or the name of some intermediate cert. The purpose is to find the certificate that signed the identity certificate, and use that certificate file name in this root cert field.


    9.  Restart Tomcat

    This one is pretty simple. Just restart Tomcat from the SSH CLI


    admin: utils service restart Cisco Tomcat


    When Tomcat comes back up you can access the CCMAdmin or CCMUser GUI to verify your newly added certificates in use.

    Jason Nash

    As far as I can see I have followed this exact procedure on CUCM 7.1.3(b) but after restarting the Tomcat service the original self-signed cert is still in use. I can see the new cert and root cert in the list but it is just not in use.

    Am I missing something, is there anything else I can check?


    Vinay Kumar Dharmaraj
    Cisco Employee
    Cisco Employee

    If you have modified any details using 'Set Web-security ..' make sure you regenerate tomcat certificate before generating CSR.

    It can be done going to CLI

    'set cert regen tomcat'

    or GUI,

    OS Admin > Security > Certificate Management > Generate New >Tomcat

    Rest details remains same.

    Good document, informative !


    Excellent document! It might be useful to summarize how to test the newly added CERT's. Typically its by browsing to the Fully Qualified Domain Name (FQDN) and not the ip address or hostname!

    Also not sure if its worth mentioning that usually the chain of cert's from CA required will be in the DER encoded binary X.509 format.


    Can CUCM support wildcard certificates using these same procedural steps?

    Not applicable

    CUCM does not currently support wildcard certificates.  There is an enhancement request opened for it,


    oscar cordero


    I following this link.

    I need to do for SIP TLS between CUCM and UM Exchange. what is diferent in the procedure?. If you  know at leat one question please tell me any thing is help.

    1) what is the service i need to restart?

    2) in step 5 and 6 I dont know if is base 64 or DER?.

    3) I think the step 7 we need to choose "certificate name = calmanger-trust"

    4) I think the step 7 we need to choose "certificate name = calmanger"

    thanks very much.

    Jason Burns

    The procedure is very similar and uses the same basic concepts.

    1. You need to restart the CallManager service after completing all of the steps.

    2.  Open the certificate file with notepad.exe. If you can read the "begin  certificate" and "end certificate" lines you have a base64 PEM file. If  the file is just binary special characters then you probably have a DER  encoded file. Note that if you have a pkcs7 or pkcs12 file then you need  to follow a different procedure to extract the individual certs from  the file and save them as base64 PEM files. You can tell if you have the  pkcs7 or 12 files because they will end with a file extension  containing, 7, 12, of pfx.

    3. Yes.

    4. Correct.



    I'm tring to upload certificate to Unity Connection 8.6(2a)SU1

    Tried to follow the steps above, problem is that there is no Roote Cetrificate field under Certificate  management > Upload Certificate / Certificate chain??

    Any idea?


    Hi Jason,

    One of my client's CA root certitficate has expired, you can see the same in the screenshot.

    I understand that we will have to regenrate the certitifcate and get it signed from CA and then upload it the CUCM box.

    What I am trying to understand is what is the significance of these certificates and what will happen if I keep ignoring the expired certitifcate and do not regenrate it.

    What impact does the exipred certitifcate has on producation envirenment?

    Certificate was valid from: 8/10/2007 till 8/8/2012.

    Please explain.

    CUCM Certificate Issue.JPG

    Jason Burns


    Functionally there is no impact of this expired certificate. The session is still HTTPS / SSL encrypted. The only problem is that you will keep getting that warning, and might not notice if a REAL warning shows up about the site's authenticity.

    Hope this helps!


    Neal haas

    Am I correct in saying that there is no impact to phones when changing certs?

    Thank you

    Jason Burns

    You can change the Tomcat certificate with no impact to the phones.

    This gets a little more complicated if you're using CUCM 8.X and above. You can still change the Tomcat certificate with no problem, but you have to make sure you restart TVS and TFTP afterward because the new HTTPS and TVS services are going to rely on the Tomcat certificate when the phone goes to a secure service URL.

    If you start talking about changing certs OTHER than Tomcat I'd recommend caution and searching for my other document on Security By Default.

    Hi Jason

    As indicated by tdudas, there is no option to specify Root Certificate field in the Upload window.

    Can we just upload the 3 certificates the same way, without specifying the root certificate? Or is the procedure different for CUCM 8.X? It's not explained in details in the OS Admin Guide.

    You said that TFTP and TVS should be restarted as well for the Secure Service URL. I suppose that means that we have to add the hostnames/fqdn of external servers or load balancers which are used for CUCM services to the certificates?

    Also, if the cluster is in secure mode, does this mean we have to update the CTL with the new tomcat certificates?





    CUCM 10

    We are using 3rd party CA and we can only create 1 certificate per subject

    I created CSR, generated a certificate and installed it for tomcat service as well as root cetificate for tomcat-trust. Everything working fine for that service.

    I added root cetificate from our CA provider to Callmanager-trust

    Can I somehow export existing certificate with private key from tomcat service and re-use it for CallManager service or any other service on the server?
