Dialed Number Analyzer for CUBE

Tool Description

This tool helps validate Dial-Plan configuration of CUBE (Cisco Unified Border Element) and emulate call routing and number manipulation feature of CUBE. This tool eliminates the need of having entire UC solution setup to validate CUBE configuration and removes the dependency on service provider to generate real calls to test dial-plan and SIP Interoperability issues.

Key features of this tool,

  • Call routing logic ported from IOS
  • E164 and URI Dialing feature support
  • Supports 10 complex call routing features
  • Simple and Friendly user interface with 2 Input modes
  • Output SIP Invite generation
  • Real-time config editing and testing
  • Hover feature to quickly review config


Tool supports following call routing features

  • Dial-peer matching
  • Translation rules
  • E164 map
  • Dial-peer group
  • Dial-peer server group
  • COR List
  • URI Dialing
  • SIP Profile
  • Outgoing SIP Invite Generation


Following are the 2 Input modes supported by tool


1. Calling / Called Number



2. SIP Message



Output from the tool

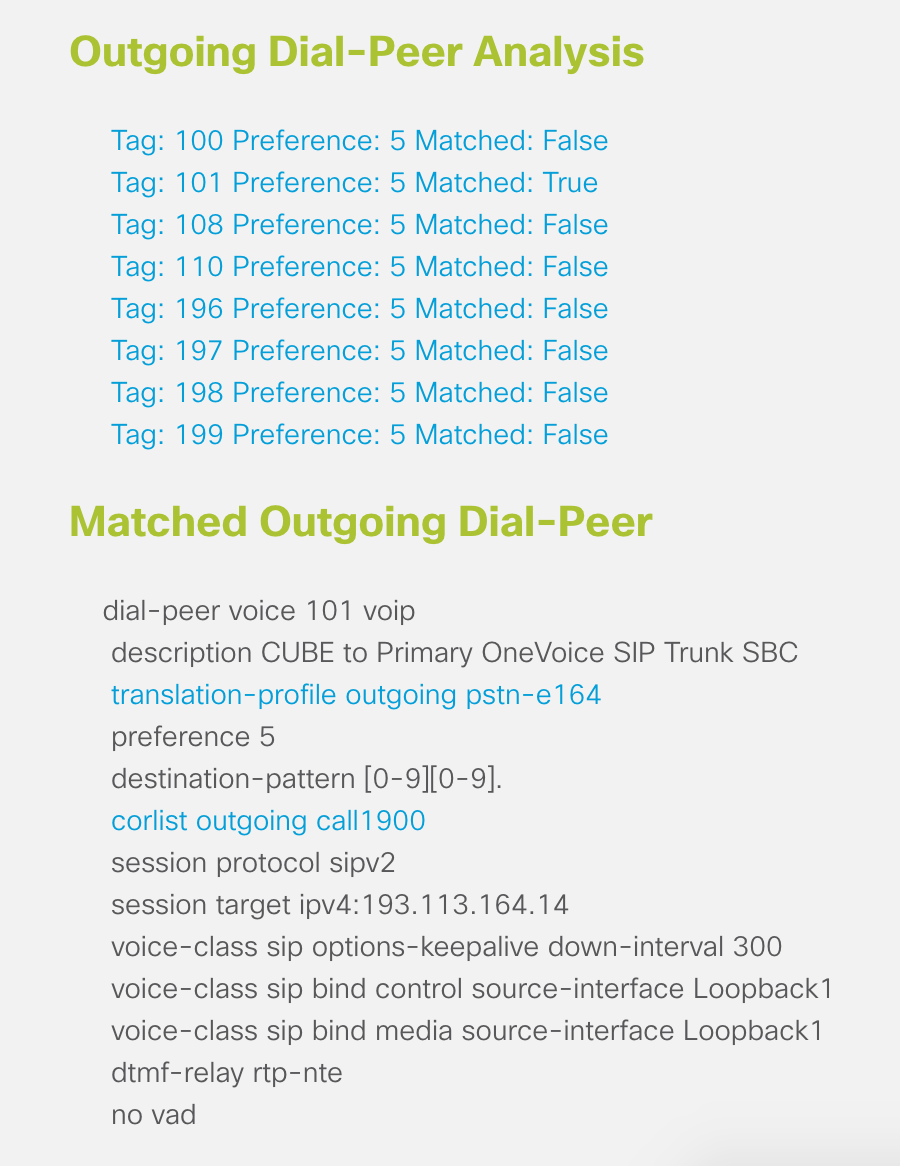

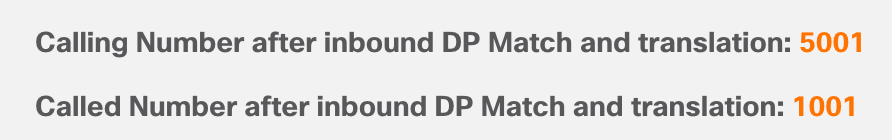

1. For "Calling / Called Number" input mode - Tool will display dial-plan information and its respective configuration block

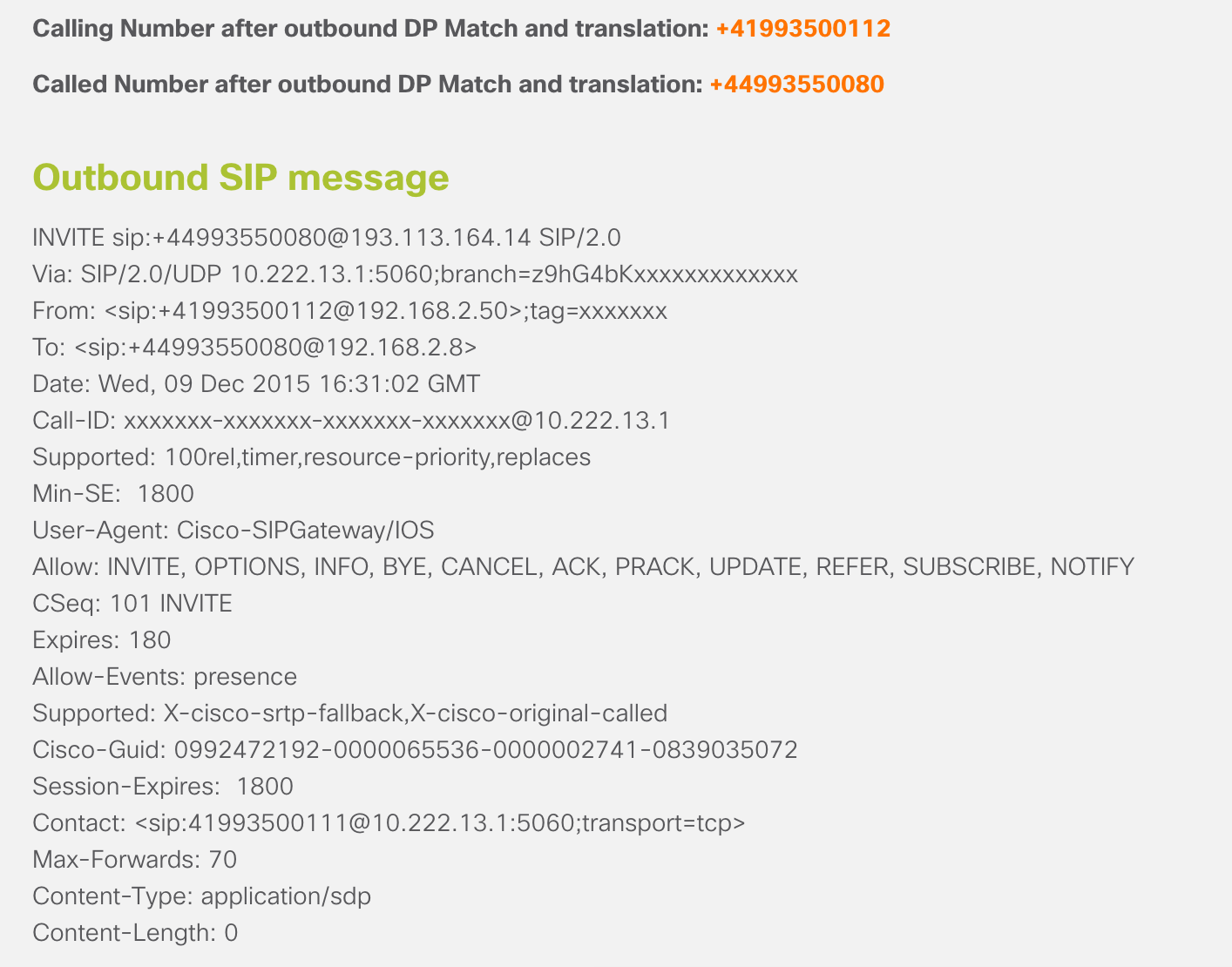

2. For "SIP Message: input mode - Tool will display outbound SIP Message along with dial-plan information


Use Cases

  • Dial-plan configuration validation
  • Helps understand dial-plan configuration
  • Helps understand complex call routing logic
  • Interoperability testing

Support and Feedback

Please Contact -

Cisco Employee
Cisco Employee

The Support and Feedback email ( does not work.


I'm getting the error "Error: 500 Internal Server Error. Try again later." when I try to use the tool. Any advise?

Level 4
Level 4

Hey, I confirm, the support and feedback email is not working, and the tool itself is not working, throwing an error even with the sample test files.




Will this tool be amended, to take "longest match" into consideration?

Cisco Employee
Cisco Employee

This tool is offline for maintenance.  For how long?  Will it be made available again?

As indicated by an earlier post here, the Support and Feedback email alias returns a 500 error now.

Level 1
Level 1

There is a URL published on the Support Tools Catalog page here Support Tools Catalog - Cisco   The padlock prevents access even after log in.  Is this Cisco / partner only access, or is the link just broken?

@rmaslanka2 - I clicked on the link and it takes me to a page entitled Retired Support Tools

That is a link to the target page. I don't know if you'd be able to get to that either. But that's where the CUBE DNA link takes you.
