Cisco Digital Network Architecture Center Modules (Design Module)Part.2

[Mohamed Alhenawy]

Cisco Digital Network Architecture Center Modules

(Design Module)Part.2

• In this article, we are going to talk about the Cisco Digital Network Architecture Center design Module.

 Cisco DNA Center gives us the flexibility and availability to configure multiple fabric sites and manage all of them through DNAC (Centralization Point).

• The continuity of IT operations is the basis of today’s business environment. Almost every single decision made by the business is either based on IT data or done using the IT platform. And so, the Design, security, availability, and performance of the IT infrastructure are the key foundation of a solid business and service environment.

• After we finished the DNAC deployment in the previous article we will start to configure DNAC, We will start by design module as I mentioned in the title.

          https://www.linkedin.com/pulse/cisco-digital-network-architecture-center-modules-design-alhenawy/

• We are going to write about Device Credentials.
• What is the device credentials Services in the network settings?

   The Device credentials are used to log in to the CLI of the devices in your network, Also Snmp Credentials, Https Credentials.

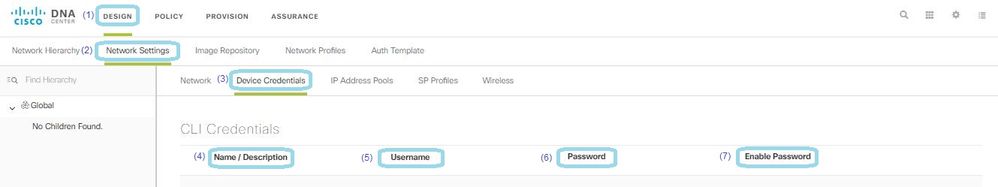

Configure Global CLI Credentials:

Design ----> Network Setting ----> Devices Credentials ----> Click Add ----> Write Name or description ----> Username to login CLI of the Network Devices ----> Password for the username of the CLI ----> Enable Password ----> SAVE.

Configure Global SNMPv2c Credentials: SNMP to manage and monitor the Network devices.

Design--- > Network Setting --- > Devices Credentials --- > SNMP read--- > Click Add --- > Write Name or description--- > read community string password [to read only the information of the network device] --- > SAVE.

Design--- > Network Setting --- > Devices Credentials--- > SNMP Write--- > Click Add --- > Write Name or description--- > Write community string password [ to make the change on the network device ]---- > SAVE.

Configure Global HTTPS Credentials:

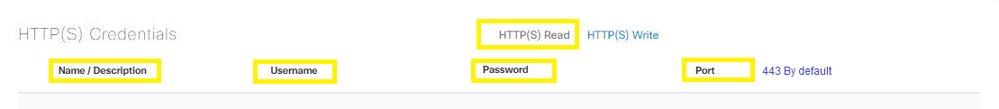

Design ---> Network Setting --->Devices Credentials--->HTTPs read --->Click Add---> Write Name or description --->Username of Https Auth ---> Password of Https Auth---> Port Number by default is 443--->SAVE.

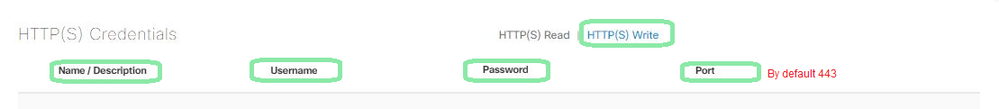

Design ---> Network Setting --->Devices Credentials--->HTTPs Write--->Click Add --->Write Name or description --->Username of Https Auth--->Password of Https Auth--->Port Number by default is 443--->SAVE.

*** I hope that has been informative for you and thank you ***

Mohamed Alhenawy

CCIE#60453

[Gioacchino]

*** I hope that has been informative for you and thank you ***

not really, this doesn't answer

https://community.cisco.com/t5/cisco-digital-network-architecture-dna/dna-center-cli-credentials/td-p/4083142

[Mohamed Alhenawy]

Oh , Long time @Gioacchino

you can check these options -->  Instead of using individual user credentials, you can create a dedicated service account with a fixed password on the switches. This service account should have appropriate privileges to perform the necessary operations within Cisco DNA Center. This way, you can configure the CLI credentials on DNA Center using the fixed password of the service account also Consider using RADIUS or TACACS+ authentication for your switches instead of RSA token-based authentication. RADIUS and TACACS+ provide centralized authentication and authorization, allowing you to use fixed credentials for authentication. You can configure the RADIUS or TACACS+ server (e.g., Cisco ISE) to handle the authentication and authorization process for your switches, and then configure DNA Center to use RADIUS or TACACS+ for device authentication.
