04-24-2023 07:00 AM
Hello all,
we are implementing DUO MFA für CheckPoint 80.40 (we can’t upgrade to the last version right now).

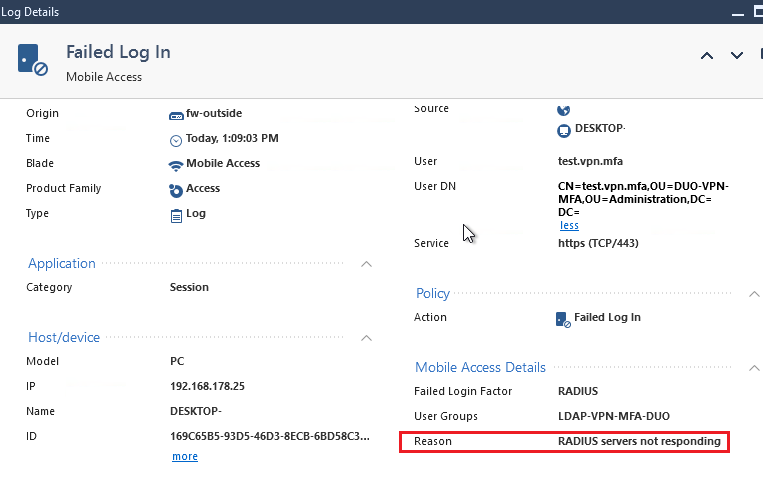

In our test environment everything works good, but in the production environment we faced an issue: even after connection was Approved in DUO App the CheckPorint VPN Client tells us: access denied - wrong credentials.
In DUO Proxy we don’t see any denies:
2023-04-24T15:20:59.251297+0200 [duoauthproxy.lib.log#info] Sending request from CheckPoint_10.10.10.1 to radius_server_auto
2023-04-24T15:20:59.252485+0200 [duoauthproxy.lib.log#info] Received new request id 170 from ('CheckPoint_10.10.10.1', 47357)
2023-04-24T15:20:59.252921+0200 [duoauthproxy.lib.log#info] (('CheckPoint_10.10.10.1', 47357), test.vpn.mfa, 170): login attempt for username 'test.vpn.mfa'
2023-04-24T15:20:59.253716+0200 [duoauthproxy.lib.log#info] Sending request for user 'test.vpn.mfa' to ('NPS_10.20.20.2', 1812) with id 106
2023-04-24T15:20:59.263847+0200 [duoauthproxy.lib.log#info] Got response for id 106 from ('NPS_10.20.20.2', 1812); code 2
2023-04-24T15:20:59.265053+0200 [duoauthproxy.lib.log#info] http POST to https://*****.duosecurity.com:443/rest/v1/preauth
2023-04-24T15:20:59.267428+0200 [duoauthproxy.lib.http._■■■■■■■■■■■■■■■■■■■■#info] Starting factory <_■■■■■■■■■■■■■■■■■■■■: b'https://*****.duosecurity.com:443/rest/v1/preauth'>
2023-04-24T15:20:59.395863+0200 [duoauthproxy.lib.log#info] (('CheckPoint_10.10.10.1', 47357), test.vpn.mfa, 170): Got preauth result for: 'auth'
2023-04-24T15:20:59.396312+0200 [duoauthproxy.lib.log#info] User IP not provided. Authorized Networks policies will not work for this authentication.
2023-04-24T15:20:59.396768+0200 [duoauthproxy.lib.log#info] http POST to https://*****.duosecurity.com:443/rest/v1/auth
2023-04-24T15:20:59.398511+0200 [duoauthproxy.lib.http._■■■■■■■■■■■■■■■■■■■■#info] Starting factory <_■■■■■■■■■■■■■■■■■■■■: b'https://*****.duosecurity.com:443/rest/v1/auth'>
2023-04-24T15:20:59.399225+0200 [duoauthproxy.lib.http._■■■■■■■■■■■■■■■■■■■■#info] Stopping factory <_■■■■■■■■■■■■■■■■■■■■: b'https://*****.duosecurity.com:443/rest/v1/preauth'>
2023-04-24T15:21:03.566848+0200 [duoauthproxy.lib.log#info] (('CheckPoint_10.10.10.1', 47357), test.vpn.mfa, 170): Duo authentication returned 'allow': 'Success. Logging you in...'
2023-04-24T15:21:03.568360+0200 [duoauthproxy.lib.log#info] (('CheckPoint_10.10.10.1', 47357), test.vpn.mfa, 170): Returning response code 2: AccessAccept
2023-04-24T15:21:03.568630+0200 [duoauthproxy.lib.log#info] (('CheckPoint_10.10.10.1', 47357), test.vpn.mfa, 170): Sending response
2023-04-24T15:21:03.568928+0200 [duoauthproxy.lib.http._■■■■■■■■■■■■■■■■■■■■#info] Stopping factory <_■■■■■■■■■■■■■■■■■■■■: b'https://*****.duosecurity.com:443/rest/v1/auth'>
2023-04-24T15:21:04.250528+0200 [duoauthproxy.lib.log#info] Sending request from CheckPoint_10.10.10.1 to radius_server_auto
2023-04-24T15:21:04.250895+0200 [duoauthproxy.lib.log#info] (('CheckPoint_10.10.10.1', 47357), test.vpn.mfa, 170): Received duplicate request
2023-04-24T15:21:04.251783+0200 [duoauthproxy.lib.log#info] (('CheckPoint_10.10.10.1', 47357), test.vpn.mfa, 170): Sending response
2023-04-24T15:21:09.250644+0200 [duoauthproxy.lib.log#info] Sending request from CheckPoint_10.10.10.1 to radius_server_auto
2023-04-24T15:21:09.250987+0200 [duoauthproxy.lib.log#info] (('CheckPoint_10.10.10.1', 47357), test.vpn.mfa, 170): Received duplicate request
2023-04-24T15:21:09.252491+0200 [duoauthproxy.lib.log#info] (('CheckPoint_10.10.10.1', 47357), test.vpn.mfa, 170): Sending response
TCP Dump shows that DUO answers:
14:50:29.972117 IP DUO_10.20.20.22.datametrics > CheckPoint_10.10.10.1.57779: RADIUS, Access-Accept (2), id: 0xa4 length: 222
14:50:30.484452 IP CheckPoint_10.10.10.1.57779 > DUO_10.20.20.22.datametrics: RADIUS, Access-Request (1), id: 0xa4 length: 128
14:50:30.485961 IP DUO_10.20.20.22.datametrics > CheckPoint_10.10.10.1.57779: RADIUS, Access-Accept (2), id: 0xa4 length: 222
14:50:35.484615 IP CheckPoint_10.10.10.1.57779 > DUO_10.20.20.22.datametrics: RADIUS, Access-Request (1), id: 0xa4 length: 128
14:50:35.485912 IP DUO_10.20.20.22.datametrics > CheckPoint_10.10.10.1.57779: RADIUS, Access-Accept (2), id: 0xa4 length: 222
We have already tried following, but nothing helped:
One Time Password (OTP) authentication fails with session timeout for Radius (checkpoint.com)
sk112933 is no more available…
very appreciated for any ideas!
Solved! Go to Solution.
05-22-2023 04:43 AM
Hello all,
the problem was on the CheckPoint: CheckPoint was sending request from incorrect interface. After fixing this issue (with setting a static route) everything works as expected
Thank you!
04-24-2023 02:40 PM
From that snippet of authproxy.log you posted, the user completes Duo 2FA and the Duo proxy server sends back the RADIUS accept to the Checkpoint device, and then the Checkpoint device sends the same access-request again to the Duo proxy (the log shows the device at 10.10.10.1 sending RADIUS access request ID 170 twice more after Duo returns access to the first instance of request ID 170).
You should concentrate your troubleshooting efforts on the Checkpoint device, to figure out why receiving the RADIUS accept the first time isn’t good enough. Is it hitting a timeout set on the Checkpoint before the accept comes in and therefore retrying, etc.?
05-02-2023 06:09 AM
Hey
You are corrent the SK was taken down (unplanned )
Action Plan:
05-22-2023 04:43 AM
Hello all,
the problem was on the CheckPoint: CheckPoint was sending request from incorrect interface. After fixing this issue (with setting a static route) everything works as expected
Thank you!
