Issue:-


How to access Cisco Router with CCP


Resolution:-


To access Cisco router with CCP following steps are required.


  1. Connect to your router using console and configure it for Telnet and SSH.
  2. Configure SSH and Telnet for local login and privilege level 15.
  3. Enable the router's HTTP or HTTPS server.
  4. Create a user with privilege level 15.
  5. Discover the router with CCP.


Router(config)# line vty 0 4
Router(config-line)# privilege level 15
Router(config-line)# login local
Router(config-line)# transport input telnet
Router(config-line)# transport input telnet ssh
Router(config-line)# exit
Router(config)# ip http server
Router(config)# ip http secure-server
Router(config)# ip http authentication local
Router(config)# username <username> privilege 15 password 0 <password>

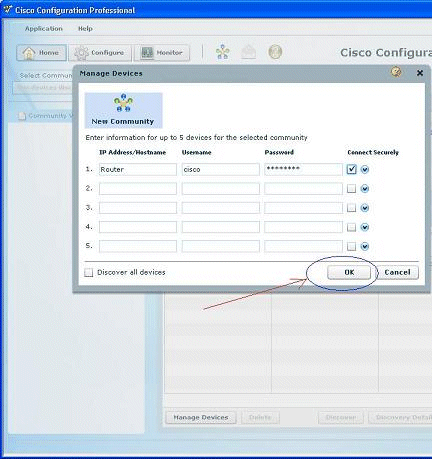

Once Router is configured, launch CCP from your PC add  new router and discover it.
Refer to following screen shots:-
