Orf Gelbrich
Cisco Employee
Cisco Employee
Task Name

XtremIO Example

Description
  1. Change the user of a running workflow
Prerequisites
  1. Tested on 5.3.1
CategoryWorkflow
ComponentsvSphere 5.x
User Inputs
  1. userid to change to
OutputInstructions for Regular Workflow Use:
  1. Download the attached .ZIP file below to your computer. *Remember the location of the saved file on your computer.
  2. Unzip the file on your computer. Should end up with a .WFD file.
  3. Log in to UCS Director as a user that has "system-admin" privileges.
  4. Navigate to "Policies-->Orchestration" and click on "Import".
  5. Click "Browse" and navigate to the location on your computer where the .WFD file resides. Choose the .WFD file and click "Open".
  6. Click "Upload" and then "OK" once the file upload is completed. Then click "Next".
  7. Click the "Select" button next to "Import Workflows". Click the "Check All" button to check all checkboxes and then the "Select" button.
  8. Click "Submit".
  9. A new folder should appear in "Policies-->Orchestration" that contains the imported workflow. You will now need to update the included tasks with information about the specific environment.

Thank you Mark Smith

Color:


Custom Tasks to do XtremIO storage provisioning using the XtremIO Rest API for the versions listed in the described document. Developed all Tasks needed for a bare metal provisioning workflow using boot from SAN. Attached is the workflow.

Create new tasks by cloning one of the existing tasks, adding any new input/output parameters and changing the JSON structure to match the new API call.

This document was the basis of the work:



     docu56460_XtremIO-3.0.1,-3.0.2-and-3.0.3-Storage-Array-RESTful-API-Guide.pdf

Screen Shot 2015-08-06 at 4.35.03 PM.png

     This can be obtained on the EMC site for download.

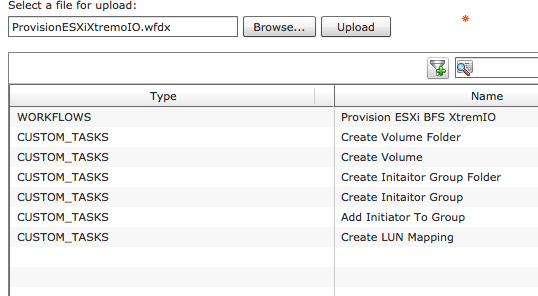

The workflows included:

Screen Shot 2015-07-28 at 4.08.11 PM.png

The workflow to Create a Volume:

Screen Shot 2016-02-08 at 10.23.15 AM.png

Comments
naresh.sankepalli
Community Member

Has anyone created a workflow to automatically select ESX cluster hosts and map lun from Xtremio?  I think built in task lets you map only one host at a time.

Orf Gelbrich
Cisco Employee
Cisco Employee

Take a look at this....

https://communities.cisco.com/docs/DOC-56419

-

Orf Gelbrich

Check out UCS Director Workflow INDEX<https://communities.cisco.com/docs/DOC-56419> on Cisco Communities Site

Orf Gelbrich
Cisco Employee
Cisco Employee

the picture I pasted did not come through there is the link

VMware ESX Cluster Node Name Determination.
