Cisco AIR-AP2802I-E-K9 configuration

[xavier ceglinska]

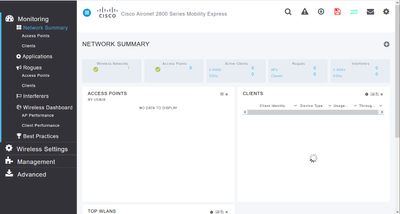

i have an AIR-AP2802I-E-K9 in autonomous mode and i can't configure it when i connect into the web interface i see 0 acces point

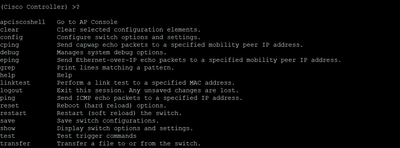

when i go in the access point with putty i cant go in the CLI im block in "Cisco Controller"

i just want to Configure my Acces point for one network

thanks in advance

[Daniel Ordóñez Flores]

Hi @xavier ceglinska

That's its because ME has two context one of them is the controller itself, the second is the AP in mode capwap. You need to do this steps:

• Go to cli controller context and type: apciscoshell

Then you will have to enter the AP management credentials that you configures in the WLC Wizard

• Once you are login in the AP context you will see the prompt change to <ap_mac_address>
• Type enable and enter your credentials.

Then Type: capwap ap primary-base <WLC_NAME> <IP_WLC>

The WLC name is the name of your ME AP and the IP that it's using

[Daniel Ordóñez Flores]

Hi @xavier ceglinska

did it work for you?
