HI All,

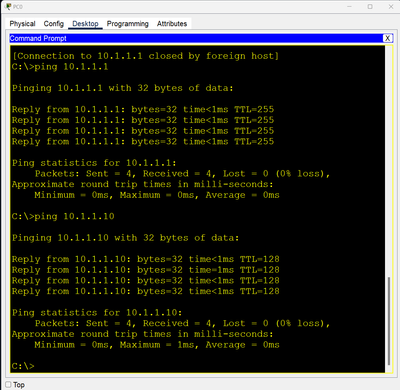

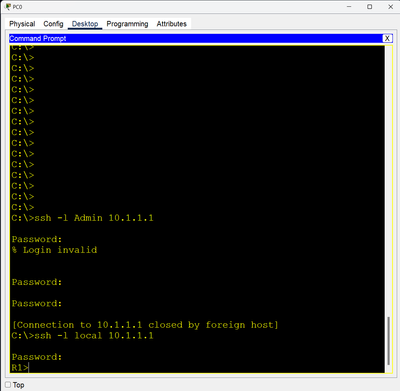

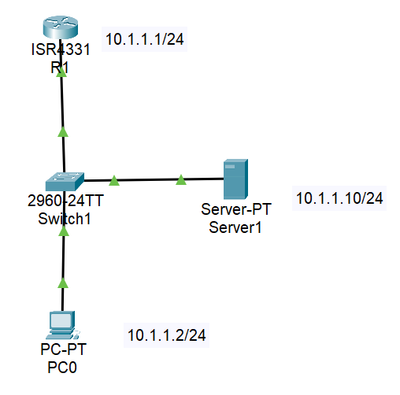

I am just wondering if anyone has tried the ssh/telnet via Radius/Tacacs+ on the latest Packet Tracer. Somehow, I do not think it is working. Initially, I did a dual DSWs and multiple ASWs running HSRP with an AAA server running Radius. I believe the individual user authentication via Radius is working because the wifi topology using WPA2 Enterprise and dot1x is authenticating fine. However, when I try to authenticate with the AAA for ssh or telnet (yes, the routing is ok, all pings were working.). So, I did another simple topology to test.
Router Config
hostname R1
ip domain-name cisco.com
aaa new-model
username local password cisco
enable password c1sco
crypto key generate rsa general-keys modulus 1024
ip ssh version 2
tacacs-server host 10.1.1.10 key cisco
aaa authentication login default local group tacacs+
line vty 0 4
transport input all
login authentication default
int g0/0/0
ip address 10.1.1.1 255.255.255.0
no shut
![woogx_0-1715224866771.png woogx_0-1715224866771.png](/t5/image/serverpage/image-id/217872iD320627087800ECC/image-size/medium?v=v2&px=400)
![woogx_1-1715225269652.png woogx_1-1715225269652.png](/t5/image/serverpage/image-id/217873iF7E84AAA07F87289/image-size/medium?v=v2&px=400)
![woogx_2-1715225340410.png woogx_2-1715225340410.png](/t5/image/serverpage/image-id/217874iCE728B47AC6AB489/image-size/medium?v=v2&px=400)
![woogx_3-1715225443027.png woogx_3-1715225443027.png](/t5/image/serverpage/image-id/217875i34D5C1F5B82757A5/image-size/medium?v=v2&px=400)
I'd appreciate it if someone can take a look to rule out if it is something I caused. Many thanks.
