Greetings community, I would like to know if there is a Moquery-type command or Python script that can deliver VPCs that are not in use.
It already uses the functionality of the acitoolkit Lint but it does not deliver this object.
- Labels:
-
Cisco ACI
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
02-17-2023 05:28 AM
What do you mean by "not in use". Are you looking for configured VPCs, but nothing physically connected?, Configured and connecteed but no EPGs mapped? etc.
Robert
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
02-17-2023 07:44 AM
HI Robert
What I need to see are the VPC policy-groups that do not have associated physical interfaces (interface-selector), also the VPCs that do not have associated EPGs
Andres
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
02-17-2023 10:59 AM - edited 02-17-2023 11:02 AM
While I don't have cycles to create a script for you, this is something you should be able to figure out. Best way would be a python script (no single API call will accomplish this). I can point you in the right direction to get started.
Step1. Get a list of all objects of class 'infraAccBndlGrp' and pull them into an array/list
Step2. Using the list as input, run a loop using the following query for each Policy Group (infraAccBndleGrp) object in the list
Ex.
'/api/node/mo/uni/infra/funcprof/[infraAccBndlGrp_Array_Item].json?query-target=children&target-subtree-class=relnFrom'
Step3. Use some logic to determine if that PolicyGrp is in use. If the returned objects = '0' then this is an orphaned object which you can then delete. Else, if the returned Obects is >0, its being referenced (in use)

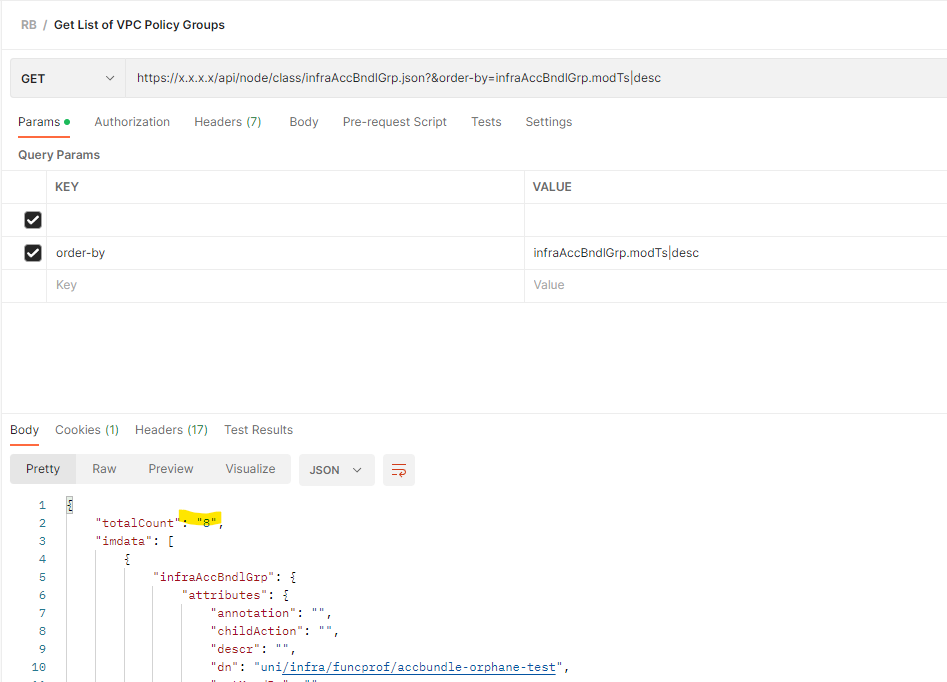

Here's a sample postman API call to grab all VPC Policy Groups from the fabric. You'd just need the dn property from each returned object.
Here's a postman API call to look for any relations to a specific AccBndlGrp object which happens to have no relations (orphaned
Here's a postman API call to look for any relations to a specific AccBndlGrp object which happens to be in use (has 2 relations):
If anyone else has a pre-made script or another method to accomplish this hopefully they'll share it. If not, this shouldn't be too hard to figure out.
Hope this helps,
Robert
