05-22-2023 10:46 PM
Here I got a configured Catalyst 3850 switch from my client side.
Now am not able to hard reset the switch, when I try to flash it is reloading the old vlans.
I tried both by mode button and the reset button behind the switch.
So anyone who knows this thing to sort out please share your knowledge..
thank you.
Solved! Go to Solution.
- Labels:
-
hard reset Catalyst 3850
Accepted Solutions
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
05-23-2023 03:11 AM
Hi
Hardware reset the switch means unpplug the Power cable and plug it again. As switches dont have switch button for turn on and off.
If you are trying to factory reset this switch you need to do like this:
-
Power down the switch.
-
Hold the Mode button.
-
Keep holding the button and apply power.
-
Keep holding down the Mode button for another 45 seconds and then release.
-
See if the console goes to ROMMON or not.
-
If in console, enter this command: SWITCH_IGNORE_STARTUP_CFG=1.
-
Reload the switch (use the power cable).
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
05-23-2023 07:46 AM - edited 05-23-2023 07:46 AM
From the switch: prompt, run "boot flash:packages.conf"
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
05-23-2023 03:11 AM
Hi
Hardware reset the switch means unpplug the Power cable and plug it again. As switches dont have switch button for turn on and off.
If you are trying to factory reset this switch you need to do like this:
-
Power down the switch.
-
Hold the Mode button.
-
Keep holding the button and apply power.
-
Keep holding down the Mode button for another 45 seconds and then release.
-
See if the console goes to ROMMON or not.
-
If in console, enter this command: SWITCH_IGNORE_STARTUP_CFG=1.
-
Reload the switch (use the power cable).
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
05-23-2023 03:55 AM
I already tried this .
But no result its booting into the old configurations.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
05-23-2023 04:23 AM
Are you doing the step 6?
Step 6 is which makes the switch ignores current config
But, if you final goal is erase the config, just run the command " write erase" and then "reload", dont save config.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
05-23-2023 07:41 AM

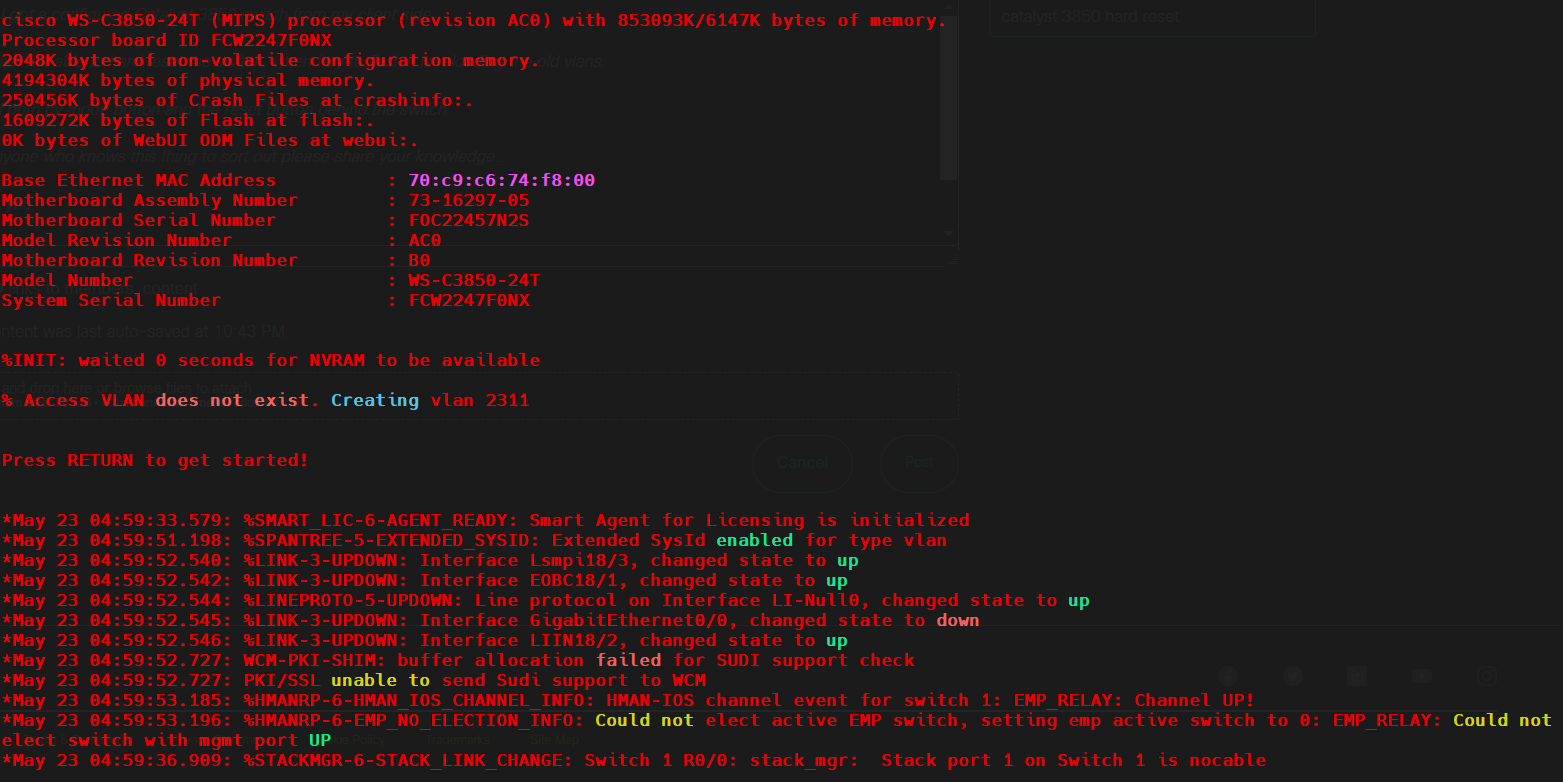

after pressing and holding the button for 45 sec the screen appeared like this
im not sure about which mode is this
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
05-23-2023 07:46 AM - edited 05-23-2023 07:46 AM
From the switch: prompt, run "boot flash:packages.conf"
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
05-23-2023 08:16 AM
yeah that changed the switch to factory reset .
thank you.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
05-23-2023 08:18 AM
Great @arjitsabu ! Glad you sorted this out. Now you can have fun!!
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
05-24-2023 11:35 PM
it helped to reset to the old.
but when i restart the switch after saving the configuration , it is not actually saving the configuration.
It is reverting to the previous stage like.
switch>
can you please sort this out..
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
05-25-2023 12:29 AM
Hi
It seeems the config-reguster might be wrong. Make sure it is 2101
