ISE PassiveID and WMI pulling

vfranjic
Cisco Employee
Cisco Employee

Hi team,



we have project for both StealthWatch and ISE. Plan is to configure ISE 2.4 patch 9 to pull events through WMI from Windows Server 2016 to ISE and share it with Stealthwatch. We have problems with ISE collecting events from AD. We used Domain admin account and event went through manual configuration of WMI on DC providing all needed rights and created registry keys. There is no L3/L4 obsticle.



1. Connection to DC is green in PassiveID dashboard and test WMI is ok, it gets right Domain name, etc

2. WMI DC is configured automatically and manually we checked all permisions and created Registry keys for Account that ISE uses when contacting DC

3. No sessions are collected from DC

4. We set DEBUG level for PassiveID and we get below:


2019-09-18 16:11:04,202 DEBUG [Thread-82275][] com.cisco.idc.dc-probe- DCOM timeout reached on DC. Identity Mapping.NTLMv2 = true , Identity Mapping.dc-domainname = XXXXXX , Identity Mapping.probe = WMI , Identity Mapping.dc-windows-version = Win2016 , Identity Mapping.dc-username = XXXXX , Identity Mapping.dc-name = XXXXXXX , Identity Mapping.dc-host = XXXXXXX/10.239.5.20



5. On Windows side we have Event log error with ID 5858 for WMI Activity with ResultCode: 0x80041032



Can someone provide help? Also we did this with two ISEs but problem remains same.

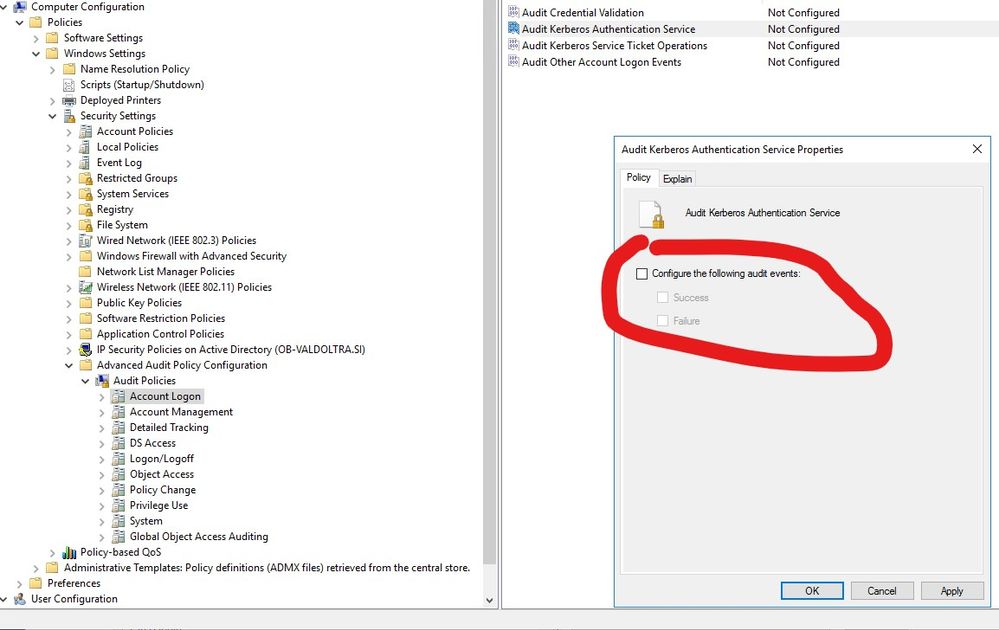

Does anybody know which Security logon event ID ISE PassiveID requests from DC: 4768 or 4624, because user has no 4768 events and if we look into WMI error we see ISE requesting 4768 event ID from DC.



Tnx in advance.



Regards,

Vedran.



1 Accepted Solution
