hi,
i'm trying to figure out why anyconnect VPN doesn't work during "failover" to secondary ASA. it only works on the primary.
i already applied the anyconnect apex/premium license on the primary and from my understanding should be "shared" with secondary.
checking 'show failover' it seems there's an interface failure but i don't see any L1 issue on the MGMT0/0 port on both primary and secondary. i can ping each other's MGMT IP and can see the MGMT0/0 MAC address on the ports on separate switches.

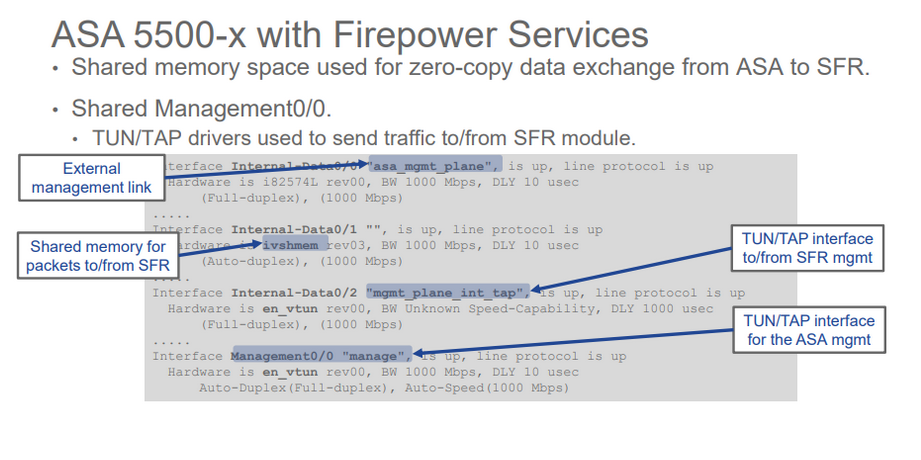

the only difference is that primary has FP/SFR module while secondary doesn't. also secondary Internal-Data0/1 is down/down. can someone advise what else needs to be checked? perhaps this is a bug?
should i monitor the 'MGMT' interface in admin context: monitor-interface MGMT?
ciscoasa/pri/act# sh ver
Cisco Adaptive Security Appliance Software Version 9.8(4)20 <system>
Firepower Extensible Operating System Version 2.2(2.124)
Device Manager Version 7.12(2)
Compiled on Thu 02-Apr-20 10:26 PDT by builders
System image file is "disk0:/asa984-20-smp-k8.bin"
Config file at boot was "startup-config"
ciscoasa up 231 days 13 hours
failover cluster up 2 years 303 days
Hardware: ASA5545, 12288 MB RAM, CPU Lynnfield 2659 MHz, 1 CPU (8 cores)
ASA: 6454 MB RAM, 1 CPU (1 core)
Internal ATA Compact Flash, 8192MB
BIOS Flash MX25L6445E @ 0xffbb0000, 8192KB
Encryption hardware device : Cisco ASA Crypto on-board accelerator (revision 0x1)
Boot microcode : CNPx-MC-BOOT-2.00
SSL/IKE microcode : CNPx-MC-SSL-SB-PLUS-0005
IPSec microcode : CNPx-MC-IPSEC-MAIN-0026
Number of accelerators: 1
Baseboard Management Controller (revision 0x1) Firmware Version: 2.4
0: Int: Internal-Data0/0 : address is 6cb2.ae69.6618, irq 11
1: Ext: GigabitEthernet0/0 : address is 6cb2.ae69.661d, irq 5
2: Ext: GigabitEthernet0/1 : address is 6cb2.ae69.6619, irq 5
3: Ext: GigabitEthernet0/2 : address is 6cb2.ae69.661e, irq 10
4: Ext: GigabitEthernet0/3 : address is 6cb2.ae69.661a, irq 10
5: Ext: GigabitEthernet0/4 : address is 6cb2.ae69.661f, irq 5
6: Ext: GigabitEthernet0/5 : address is 6cb2.ae69.661b, irq 5
7: Ext: GigabitEthernet0/6 : address is 6cb2.ae69.6620, irq 10
8: Ext: GigabitEthernet0/7 : address is 6cb2.ae69.661c, irq 10
9: Int: Internal-Data0/1 : address is 0000.0001.0002, irq 0
10: Int: Internal-Control0/0 : address is 0000.0001.0001, irq 0
11: Int: Internal-Data0/2 : address is 0000.0001.0003, irq 0
12: Ext: Management0/0 : address is 6cb2.ae69.6618, irq 0
13: Int: Internal-Data0/3 : address is a2c2.f400.0011, irq 0
Licensed features for this platform:
Maximum Physical Interfaces : Unlimited perpetual
Maximum VLANs : 300 perpetual
Inside Hosts : Unlimited perpetual
Failover : Active/Active perpetual
Encryption-DES : Enabled perpetual
Encryption-3DES-AES : Enabled perpetual
Security Contexts : 10 perpetual
Carrier : Disabled perpetual
AnyConnect Premium Peers : 2500 perpetual <<<
AnyConnect Essentials : Disabled perpetual
Other VPN Peers : 2500 perpetual
Total VPN Peers : 2500 perpetual
AnyConnect for Mobile : Enabled perpetual
AnyConnect for Cisco VPN Phone : Enabled perpetual
Advanced Endpoint Assessment : Enabled perpetual
Shared License : Disabled perpetual
Total TLS Proxy Sessions : 2 perpetual
Botnet Traffic Filter : Disabled perpetual
IPS Module : Disabled perpetual
Cluster : Enabled perpetual
Cluster Members : 2 perpetual
This platform has an ASA5545 VPN Premium license.
Failover cluster licensed features for this platform:
Maximum Physical Interfaces : Unlimited perpetual
Maximum VLANs : 300 perpetual
Inside Hosts : Unlimited perpetual
Failover : Active/Active perpetual
Encryption-DES : Enabled perpetual
Encryption-3DES-AES : Enabled perpetual
Security Contexts : 20 perpetual
Carrier : Disabled perpetual
AnyConnect Premium Peers : 2500 perpetual <<<
AnyConnect Essentials : Disabled perpetual
Other VPN Peers : 2500 perpetual
Total VPN Peers : 2500 perpetual
AnyConnect for Mobile : Enabled perpetual
AnyConnect for Cisco VPN Phone : Enabled perpetual
Advanced Endpoint Assessment : Enabled perpetual
Shared License : Disabled perpetual
Total TLS Proxy Sessions : 4 perpetual
Botnet Traffic Filter : Disabled perpetual
IPS Module : Disabled perpetual
Cluster : Enabled perpetual
This platform has an ASA5545 VPN Premium license.
ciscoasa/pri/act# sh int ip b
Interface IP-Address OK? Method Status Protocol
GigabitEthernet0/0 unassigned YES unset up up
GigabitEthernet0/0.1605 unassigned YES unset up up
GigabitEthernet0/1 unassigned YES unset up up
GigabitEthernet0/1.50 unassigned YES unset up up
GigabitEthernet0/1.1610 unassigned YES unset up up
GigabitEthernet0/1.1650 unassigned YES unset up up
GigabitEthernet0/2 unassigned YES unset up up
GigabitEthernet0/2.317 unassigned YES unset up up
GigabitEthernet0/2.1653 unassigned YES unset up up
GigabitEthernet0/2.1655 unassigned YES unset up up
GigabitEthernet0/2.1660 unassigned YES unset up up
GigabitEthernet0/2.1666 unassigned YES unset up up
GigabitEthernet0/2.1667 unassigned YES unset up up
GigabitEthernet0/3 unassigned YES unset up up
GigabitEthernet0/3.1137 unassigned YES unset up up
GigabitEthernet0/3.1229 unassigned YES unset up up
GigabitEthernet0/3.1350 unassigned YES unset up up
GigabitEthernet0/4 unassigned YES unset up up
GigabitEthernet0/4.1601 unassigned YES unset up up
GigabitEthernet0/4.1651 unassigned YES unset up up
GigabitEthernet0/4.1652 unassigned YES unset up up
GigabitEthernet0/4.1800 unassigned YES unset up up
GigabitEthernet0/5 unassigned YES unset administratively down down
GigabitEthernet0/6 unassigned YES unset administratively down down
GigabitEthernet0/7 172.31.0.65 YES unset up up
Internal-Control0/0 127.0.1.1 YES unset up up
Internal-Data0/0 unassigned YES unset up up
Internal-Data0/1 unassigned YES unset up up
Internal-Data0/2 unassigned YES unset up up
Internal-Data0/3 unassigned YES unset up up
Management0/0 unassigned YES unset up up
ciscoasa/pri/act# sh failover history
==========================================================================
From State To State Reason
==========================================================================
17:50:55 UTC Mar 1 2021
Active Config Applied Active Other unit wants me Active
17:19:02 UTC Mar 24 2021
Active Failed Interface check
17:19:05 UTC Mar 24 2021
Failed Standby Ready Interface check
17:19:27 UTC Mar 24 2021
Standby Ready Failed Interface check
17:24:07 UTC Mar 24 2021
Failed Standby Ready Interface check
17:24:30 UTC Mar 24 2021
Standby Ready Failed Interface check
17:24:32 UTC Mar 24 2021
Failed Standby Ready Interface check
17:28:33 UTC Mar 24 2021
Standby Ready Just Active Set by the config command
17:28:33 UTC Mar 24 2021
Just Active Active Drain Set by the config command
17:28:33 UTC Mar 24 2021
Active Drain Active Applying Config Set by the config command
17:28:33 UTC Mar 24 2021
Active Applying Config Active Config Applied Set by the config command
17:28:33 UTC Mar 24 2021
Active Config Applied Active Set by the config command
==========================================================================
ciscoasa/pri/act# sh failover state
State Last Failure Reason Date/Time
This host - Primary
Active Ifc Failure 17:24:30 UTC Mar 24 2021
admin MGMT: Failed
Other host - Secondary
Standby Ready Ifc Failure 12:48:17 UTC Feb 25 2021
admin MGMT: Failed
====Configuration State===
Sync Done - STANDBY
====Communication State===
Mac set
/pri/act# sh failover
Failover On
Failover unit Primary
Failover LAN Interface: failover GigabitEthernet0/7 (up)
Reconnect timeout 0:00:00
Unit Poll frequency 1 seconds, holdtime 15 seconds
Interface Poll frequency 5 seconds, holdtime 25 seconds
Interface Policy 1
Monitored Interfaces 12 of 316 maximum
MAC Address Move Notification Interval not set
Version: Ours 9.8(4)20, Mate 9.8(4)20
Serial Number: Ours FCH21411111, Mate FCH21412222
Last Failover at: 17:28:33 UTC Mar 24 2021
This host: Primary - Active
Active time: 80373 (sec)
admin Interface MGMT (10.1.1.93): Normal (Monitored)
slot 1: SFR5545 hw/sw rev (N/A/6.2.0-362) status (Up/Up)
ASA FirePOWER, 6.2.0-362, Up, (Not-Monitored)
slot 1: SFR5545 hw/sw rev (N/A/6.2.0-362) status (Up/Up)
ASA FirePOWER, 6.2.0-362, Up, (Not-Monitored)
Other host: Secondary - Standby Ready
Active time: 570 (sec)
slot 0: ASA5545 hw/sw rev (3.1/9.8(4)20) status (Up Sys)
admin Interface MGMT (10.1.1.94): Normal (Monitored)
ciscoasa/pri/act/admin# sh run monitor
monitor-interface outside
no monitor-interface service-module
ciscoasa/pri/act/admin# ping MGMT 10.1.1.94 repeat 1000
Type escape sequence to abort.
Sending 1000, 100-byte ICMP Echos to 10.1.1.94, timeout is 2 seconds:
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!
Success rate is 100 percent (1000/1000), round-trip min/avg/max = 1/1/10 ms
ciscoasa/pri/act# sh module
Mod Card Type Model Serial No.
---- -------------------------------------------- ------------------ -----------
0 ASA 5545-X with SW, 8 GE Data, 1 GE Mgmt ASA5545 FCH21411111
ips Unknown N/A FCH21411111
cxsc Unknown N/A FCH21411111
sfr FirePOWER Services Software Module ASA5545 FCH21411111
Mod MAC Address Range Hw Version Fw Version Sw Version
---- --------------------------------- ------------ ------------ ---------------
0 6cb2.ae69.6618 to 6cb2.ae69.6621 3.1 2.1(9)8 9.8(4)20
ips 6cb2.ae69.6616 to 6cb2.ae69.6616 N/A N/A
cxsc 6cb2.ae69.6616 to 6cb2.ae69.6616 N/A N/A
sfr 6cb2.ae69.6616 to 6cb2.ae69.6616 N/A N/A 6.2.0-362
Mod SSM Application Name Status SSM Application Version
---- ------------------------------ ---------------- --------------------------
ips Unknown No Image Present Not Applicable
cxsc Unknown No Image Present Not Applicable
sfr ASA FirePOWER Up 6.2.0-362
Mod Status Data Plane Status Compatibility
---- ------------------ --------------------- -------------
0 Up Sys Not Applicable
ips Unresponsive Not Applicable
cxsc Unresponsive Not Applicable
sfr Up Up
Mod License Name License Status Time Remaining
---- -------------- --------------- ---------------
ips IPS Module Disabled perpetual
-----
ciscoasa/sec/stby# sh ver
Cisco Adaptive Security Appliance Software Version 9.8(4)20 <system>
Firepower Extensible Operating System Version 2.2(2.124)
Device Manager Version 7.12(2)
Compiled on Thu 02-Apr-20 10:26 PDT by builders
System image file is "disk0:/asa984-20-smp-k8.bin"
Config file at boot was "startup-config"
ciscoasa up 231 days 12 hours
failover cluster up 2 years 303 days
Hardware: ASA5545, 12288 MB RAM, CPU Lynnfield 2660 MHz, 1 CPU (8 cores)
ASA: 6454 MB RAM, 1 CPU (1 core)
Internal ATA Compact Flash, 8192MB
BIOS Flash MX25L6445E @ 0xffbb0000, 8192KB
Encryption hardware device : Cisco ASA Crypto on-board accelerator (revision 0x1)
Boot microcode : CNPx-MC-BOOT-2.00
SSL/IKE microcode : CNPx-MC-SSL-SB-PLUS-0005
IPSec microcode : CNPx-MC-IPSEC-MAIN-0026
Number of accelerators: 1
Baseboard Management Controller (revision 0x1) Firmware Version: 2.4
0: Int: Internal-Data0/0 : address is 6cb2.ae69.6528, irq 11
1: Ext: GigabitEthernet0/0 : address is 6cb2.ae69.652d, irq 5
2: Ext: GigabitEthernet0/1 : address is 6cb2.ae69.6529, irq 5
3: Ext: GigabitEthernet0/2 : address is 6cb2.ae69.652e, irq 10
4: Ext: GigabitEthernet0/3 : address is 6cb2.ae69.652a, irq 10
5: Ext: GigabitEthernet0/4 : address is 6cb2.ae69.652f, irq 5
6: Ext: GigabitEthernet0/5 : address is 6cb2.ae69.652b, irq 5
7: Ext: GigabitEthernet0/6 : address is 6cb2.ae69.6530, irq 10
8: Ext: GigabitEthernet0/7 : address is 6cb2.ae69.652c, irq 10
9: Int: Internal-Data0/1 : address is 0000.0001.0002, irq 0
10: Int: Internal-Control0/0 : address is 0000.0001.0001, irq 0
11: Int: Internal-Data0/2 : address is 0000.0001.0003, irq 0
12: Ext: Management0/0 : address is 6cb2.ae69.6528, irq 0
13: Int: Internal-Data0/3 : address is a2c2.f400.0011, irq 0
Licensed features for this platform:
Maximum Physical Interfaces : Unlimited perpetual
Maximum VLANs : 300 perpetual
Inside Hosts : Unlimited perpetual
Failover : Active/Active perpetual
Encryption-DES : Enabled perpetual
Encryption-3DES-AES : Enabled perpetual
Security Contexts : 10 perpetual
Carrier : Disabled perpetual
AnyConnect Premium Peers : 2 perpetual <<<
AnyConnect Essentials : Disabled perpetual
Other VPN Peers : 2500 perpetual
Total VPN Peers : 2500 perpetual
AnyConnect for Mobile : Disabled perpetual
AnyConnect for Cisco VPN Phone : Enabled perpetual
Advanced Endpoint Assessment : Disabled perpetual
Shared License : Disabled perpetual
Total TLS Proxy Sessions : 2 perpetual
Botnet Traffic Filter : Disabled perpetual
IPS Module : Disabled perpetual
Cluster : Enabled perpetual
Cluster Members : 2 perpetual
This platform has an ASA5545 VPN Premium license.
Failover cluster licensed features for this platform:
Maximum Physical Interfaces : Unlimited perpetual
Maximum VLANs : 300 perpetual
Inside Hosts : Unlimited perpetual
Failover : Active/Active perpetual
Encryption-DES : Enabled perpetual
Encryption-3DES-AES : Enabled perpetual
Security Contexts : 20 perpetual
Carrier : Disabled perpetual
AnyConnect Premium Peers : 2500 perpetual
AnyConnect Essentials : Disabled perpetual
Other VPN Peers : 2500 perpetual
Total VPN Peers : 2500 perpetual
AnyConnect for Mobile : Enabled perpetual
AnyConnect for Cisco VPN Phone : Enabled perpetual
Advanced Endpoint Assessment : Enabled perpetual
Shared License : Disabled perpetual
Total TLS Proxy Sessions : 4 perpetual
Botnet Traffic Filter : Disabled perpetual
IPS Module : Disabled perpetual
Cluster : Enabled perpetual
This platform has an ASA5545 VPN Premium license.
ciscoasa/sec/stby# sh int ip b
Interface IP-Address OK? Method Status Protocol
GigabitEthernet0/0 unassigned YES unset up up
GigabitEthernet0/0.1605 unassigned YES unset up up
GigabitEthernet0/1 unassigned YES unset up up
GigabitEthernet0/1.50 unassigned YES unset up up
GigabitEthernet0/1.1610 unassigned YES unset up up
GigabitEthernet0/1.1650 unassigned YES unset up up
GigabitEthernet0/2 unassigned YES unset up up
GigabitEthernet0/2.317 unassigned YES unset up up
GigabitEthernet0/2.1653 unassigned YES unset up up
GigabitEthernet0/2.1655 unassigned YES unset up up
GigabitEthernet0/2.1660 unassigned YES unset up up
GigabitEthernet0/2.1666 unassigned YES unset up up
GigabitEthernet0/2.1667 unassigned YES unset up up
GigabitEthernet0/3 unassigned YES unset up up
GigabitEthernet0/3.1137 unassigned YES unset up up
GigabitEthernet0/3.1229 unassigned YES unset up up
GigabitEthernet0/3.1350 unassigned YES unset up up
GigabitEthernet0/4 unassigned YES unset up up
GigabitEthernet0/4.1601 unassigned YES unset up up
GigabitEthernet0/4.1651 unassigned YES unset up up
GigabitEthernet0/4.1652 unassigned YES unset up up
GigabitEthernet0/4.1800 unassigned YES unset up up
GigabitEthernet0/5 unassigned YES unset administratively down down
GigabitEthernet0/6 unassigned YES unset administratively down down
GigabitEthernet0/7 172.31.0.66 YES unset up up
Internal-Control0/0 127.0.1.1 YES unset up up
Internal-Data0/0 unassigned YES unset up up
Internal-Data0/1 unassigned YES unset down down <<<
Internal-Data0/2 unassigned YES unset up up
Internal-Data0/3 unassigned YES unset up up
Management0/0 unassigned YES unset up up
ciscoasa/sec/stby# sh failover history
==========================================================================
From State To State Reason
==========================================================================
17:50:55 UTC Mar 1 2021
Active Standby Ready Set by the config command
17:19:02 UTC Mar 24 2021
Standby Ready Just Active Other unit wants me Active
17:19:02 UTC Mar 24 2021
Just Active Active Drain Other unit wants me Active
17:19:02 UTC Mar 24 2021
Active Drain Active Applying Config Other unit wants me Active
17:19:02 UTC Mar 24 2021
Active Applying Config Active Config Applied Other unit wants me Active
17:19:02 UTC Mar 24 2021
Active Config Applied Active Other unit wants me Active
17:28:33 UTC Mar 24 2021
Active Standby Ready Other unit wants me Standby
==========================================================================
ciscoasa/sec/stby# sh failover state
State Last Failure Reason Date/Time
This host - Secondary
Standby Ready Ifc Failure 12:48:17 UTC Feb 25 2021
admin MGMT: Failed
Other host - Primary
Active Ifc Failure 17:24:30 UTC Mar 24 2021
admin MGMT: Failed
====Configuration State===
Sync Done
Sync Done - STANDBY
====Communication State===
Mac set
ciscoasa/sec/stby# sh module
Mod Card Type Model Serial No.
---- -------------------------------------------- ------------------ -----------
0 ASA 5545-X with SW, 8 GE Data, 1 GE Mgmt ASA5545 FCH21412222
ips Unknown N/A FCH21412222
cxsc Unknown N/A FCH21412222
sfr Unknown N/A FCH21412222
Mod MAC Address Range Hw Version Fw Version Sw Version
---- --------------------------------- ------------ ------------ ---------------
0 6cb2.ae69.6528 to 6cb2.ae69.6531 3.1 2.1(9)8 9.8(4)20
ips 6cb2.ae69.6526 to 6cb2.ae69.6526 N/A N/A
cxsc 6cb2.ae69.6526 to 6cb2.ae69.6526 N/A N/A
sfr 6cb2.ae69.6526 to 6cb2.ae69.6526 N/A N/A
Mod SSM Application Name Status SSM Application Version
---- ------------------------------ ---------------- --------------------------
ips Unknown No Image Present Not Applicable
cxsc Unknown No Image Present Not Applicable
sfr Unknown No Image Present Not Applicable
Mod Status Data Plane Status Compatibility
---- ------------------ --------------------- -------------
0 Up Sys Not Applicable
ips Unresponsive Not Applicable
cxsc Unresponsive Not Applicable
sfr Unresponsive Not Applicable
Mod License Name License Status Time Remaining
---- -------------- --------------- ---------------
ips IPS Module Disabled perpetual
