APIC 6.0(x) Initial setup with JSON string, without GUI

romavill
Cisco Employee
Cisco Employee

Introduction

In APIC 6.0 code the initial setup dialog was reworked and GUI wizard introduced for APIC bootstrap and configuration. But, there is a way to configure Initial setup with JSON string.

Pre-requisites: ACI Initial Setup Knowledge

Requirements: APIC Initial Setup access via CIMC KVM

Components Used: APIC 6.0(x) & JSON string
Note: Prepare your JSON string. Just adjust the values based for your requirements. Needs to be just 1 line.



{"cluster":{"fabricName":"FABRICNAME","layer3":false,"fabricId":1,"clusterSize":3,"infraVlan":3967,"gipoPool":"225.0.0.0/15","adminPassword":"FABRIC123."},"nodes":[{"controllerType":"physical","serialNumber":"WZP10000000","nodeId":1,"nodeName":"FABRIC-APIC1","podId":1,"oobNetwork":{"enableIPv4":true,"address4":"192.168.100.24/24","gateway4":"192.168.100.1"},"cimc":{"address4":"192.168.100.21","username":"admin","password":"password"}}],"pods":[{"podId":1,"tepPool":"100.69.0.0/16"}]}





{"cluster":{"fabricName":"FABRICNAME","layer3":false,"fabricId":1,"clusterSize":3,"infraVlan":3967,"gipoPool":"225.0.0.0/15","adminPassword":"FABRIC123."},"nodes":[{"controllerType":"physical","serialNumber":"WZP20000000","nodeId":2,"nodeName":"FABRIC-APIC2","podId":1,"oobNetwork":{"enableIPv4":true,"address4":"192.168.100.25/24","gateway4":"192.168.100.1"},"cimc":{"address4":"192.168.100.22","username":"admin","password":"password"}}],"pods":[{"podId":1,"tepPool":"100.69.0.0/16"}]}





{"cluster":{"fabricName":"FABRICNAME","layer3":false,"fabricId":1,"clusterSize":3,"infraVlan":3967,"gipoPool":"225.0.0.0/15","adminPassword":"FABRIC123."},"nodes":[{"controllerType":"physical","serialNumber":"WZP30000000","nodeId":3,"nodeName":"FABRIC-APIC3","podId":1,"oobNetwork":{"enableIPv4":true,"address4":"192.168.100.26/24","gateway4":"192.168.100.1"},"cimc":{"address4":"192.168.100.23","username":"admin","password":"password"}}],"pods":[{"podId":1,"tepPool":"100.69.0.0/16"}]}



Configurations

After you configure CIMC Initial Setup, after a few minutes; you will see a screen as shown below:
APIC Version: 6.0(2a)
Welcome to Cisco APIC Setup Utility
Press Enter Or Input JSON string to bootstrap your APIC node.Press Enter Or Input JSON string to bootstrap your APIC nodePress Enter Or Input JSON string to bootstrap your APIC node

At top-left click the tree lines > File >
Paste Clipboard TextPaste Clipboard Text









*Paste JSON string click SEND
If your JSON String are incorrect the APIC will give you an error
If your JSON String are correct you will see: System bootstrapped successfully. if not, just verify your JSON string and send again

Verify

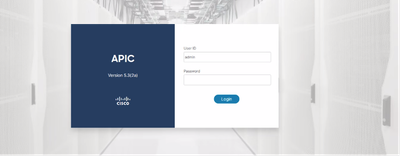

Please wait around 5-10 min and Connect to APIC GUI in your browser. You will see the username and password screen instead the new way to Initial Setup.

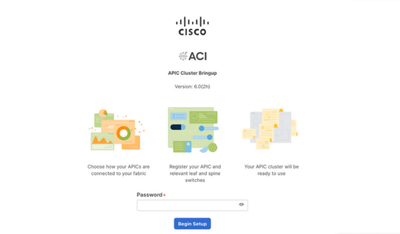

Note: If you see the New APIC Cluster Bring Up GUI, just need wait until bootstrap process finish and try again.

new way bootstrap.pnguserand password.png















Some Notes:
- In case APIC Replacement: You can use APIC 1, Clusted size 1 script for all New 3 APICs, then downgrade to the 5.3.x version (Note: Older apic must be in 5.3.x too), After downgrade, for all 3 new APICs erase all APIC config (clean commands), perform the replacement with the same APIC versions  and same info in your APICs from the older ones with the new ones, after replacement (optional) you can upgrade to the desired version.

- For New ACI Fabrics
   Option 1:  Depend of the version - You can Configure all 3 New APICs and you will see during the discovered process
   Option 2:  Depend of the version - You can Configure APIC 1 and perform APIC 2-3 once you discovered Leafs conencted to the APIC 2 and 3. Because if you try APIC 2,3 from the beginning you could see “Node 1 must be present in bootstrap cluster request “

3 Replies 3

nkhawaja1
Level 1
Level 1

Hi,

Thanks for sharing this. We used the json script for controller 1, however the same script (with modification for controller 2 and 3) cant be used, it says "Code: 400 Message: Node 1 must be present in bootstrap cluster request"

It looks like we need a modified code for controller 2 and 3. Any idea. Thanks,

Thanks for share your experience -  I just added some example for APIC1-3 script, also some notes for tested scenarios.

julian.bendix
Level 4
Level 4

Cool stuff, gonna try that for sure.
