Introduction
Après de nombreuses questions sur "IP non numéroté" et sur l'apparence de la configuration, je me suis tourné vers l'approche "IP numérotée" ou "P2P" déjà publiée, que j'avais publiée.

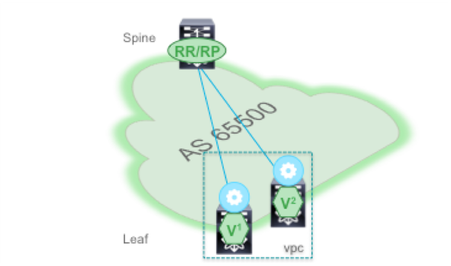

Pour cet exemple, nous utilisons l'exemple de topologie suivant.
L'exemple de configuration couvre la configuration des composants logiciels suivants
- Assemblage avec OSPF, PIM Sparse (ASM) et Anycast-RP
- Interfaces non numérotées IP
- VXLAN
- Plan de contrôle EVPN MP-BGP
- VPC
Nous allons nous concentrer sur la configuration de Épine "1", Feuille "V1" et Feuille "V2"
Configuration Épine "1"
hostname SPINE1
nv overlay evpn
feature ospf
feature bgp
feature pim
feature nv overlay
ip pim anycast-rp 10.254.254.254 10.250.250.101
ip pim rp-address 10.254.254.254 group-list 239.239.239.0/24
interface Ethernet3/1
description Link to Leaf "V2"
mtu 9216
ip unnumbered loopback0
ip ospf network point-to-point
ip router ospf UNDERLAY area 0.0.0.0
ip pim sparse-mode
no shutdown
interface Ethernet3/2
description Link to Leaf "V1"
mtu 9216
ip unnumbered loopback0
ip ospf network point-to-point
ip router ospf UNDERLAY area 0.0.0.0
ip pim sparse-mode
no shutdown
interface loopback0
ip address 10.250.250.101/32
ip ospf network point-to-point # will change OSPF interface back to Loopback; required for VPC
ip router ospf UNDERLAY area 0.0.0.0
ip pim sparse-mode
interface loopback254
ip address 10.254.254.254/32
ip ospf network point-to-point
ip router ospf UNDERLAY area 0.0.0.0
ip pim sparse-mode
router ospf UNDERLAY
router-id 10.250.250.101
log-adjacency-changes detail
router bgp 65500
router-id 10.250.250.101
address-family ipv4 unicast
neighbor 10.250.250.0/24 remote-as 65500
update-source loopback0
address-family ipv4 unicast # optional for "show ip bgp summary" support
address-family l2vpn evpn
send-community both
route-reflector-client
Configuration Feuille "V1"
hostname LeafV1
nv overlay evpn
feature ospf
feature bgp
feature pim
feature interface-vlan
feature vn-segment-vlan-based
feature nv overlay
feature vpc
fabric forwarding anycast-gateway-mac 2020.DEAD.BEEF
ip pim rp-address 10.254.254.254 group-list 239.239.239.0/24
vlan 1,99-101,2500,3000
vlan 99
name L2onlyHostSegment
vn-segment 30099
vlan 100
name L2L3HostSegment
vn-segment 30000
vlan 101
name L2L3HostSegment
vn-segment 30001
vlan 2500
name FabricBD
vn-segment 50000
vlan 3000
name VPCL3Peering
route-map FABRIC-RMAP-REDIST-SUBNET permit 10
match tag 21921
vrf context TENANT1
vni 50000
rd auto
address-family ipv4 unicast
route-target both auto
route-target both auto evpn
address-family ipv6 unicast
route-target both auto
route-target both auto evpn
vpc domain 1
peer-switch
peer-keepalive destination 10.2.8.1 source 10.2.8.2 vrf management
peer-gateway
ip arp synchronize
interface Vlan100
no shutdown
vrf member TENANT1
ip address 192.168.100.1/24 tag 21921
fabric forwarding mode anycast-gateway
interface Vlan101
no shutdown
vrf member TENANT1
ip address 192.168.101.1/24 tag 21921
fabric forwarding mode anycast-gateway
interface Vlan2500
description FabricBD
no shutdown
mtu 9216
vrf member TENANT1
ip forward
interface Vlan3000
description VPC Layer-3 Peering for VXLAN
no shutdown
ip address 10.3.1.1/30 # Requires to be individual IP per VPC member
ip ospf network point-to-point
ip router ospf UNDERLAY area 0.0.0.0
ip pim sparse-mode
nve infra-vlans 3000
# required for Nexus 9x00-EX/FX or Nexus 9200
interface port-channel1
description VPC Peer-Link
switchport mode trunk
spanning-tree port type network
lacp suspend-individual
vpc peer-link
hardware access-list tcam region vacl 0
# example region to free up space for arp-ether region
hardware access-list tcam region arp-ether 256 double-wide
# required for ARP suppression, requires reboot
# double-wide is required starting 7.0(3)I3(1)
# not required for Nexus 9x00-EX/FX or Nexus 9200
interface nve1
mtu 9216
no shutdown
source-interface loopback1
host-reachability protocol bgp
member vni 30000
suppress-arp
mcast-group 239.239.239.100
member vni 30001
suppress-arp
mcast-group 239.239.239.101
member vni 30099
mcast-group 239.239.239.99
member vni 50000 associate-vrf
interface Ethernet1/1
switchport mode trunk
spanning-tree port type edge trunk
spanning-tree bpduguard enable
interface Ethernet1/47
description Link for VPC Peer-Link
switchport mode trunk
channel-group 1 mode active
interface Ethernet1/48
description Link for VPC Peer-Link
switchport mode trunk
channel-group 1 mode active
interface Ethernet2/1
description Link to Spine "1"
no switchport
mtu 9216
ip unnumbered loopback0
ip ospf network point-to-point
ip router ospf UNDERLAY area 0.0.0.0
interface loopback0 # Loopback for Router ID, routing adjacency and peering
ip address 10.250.250.102/32
ip router ospf UNDERLAY area 0.0.0.0
ip pim sparse-mode
interface loopback1 # Loopback for VTEP only
ip address 10.254.254.102/32
ip address 10.254.254.1/32 secondary
ip ospf network point-to-point # will change OSPF interface back to Loopback; required for VPC
ip router ospf UNDERLAY area 0.0.0.0
ip pim sparse-mode
router ospf UNDERLAY
router-id 10.250.250.102
log-adjacency-changes detail
router bgp 65500
router-id 10.250.250.102
address-family ipv4 unicast
neighbor 10.250.250.101 remote-as 65500
update-source loopback0
address-family ipv4 unicast # optional for "show ip bgp summary" support
address-family l2vpn evpn
send-community both
vrf TENANT1
address-family ipv4 unicast
advertise l2vpn evpn
redistribute direct route-map FABRIC-RMAP-REDIST-SUBNET
evpn
vni 30000 l2
rd auto
route-target import auto
route-target export auto
vni 30001 l2
rd auto
route-target import auto
route-target export auto
vni 30099 l2
rd auto
route-target import auto
route-target export auto
Configuration Feuille "V2"
hostname LeafV2
nv overlay evpn
feature ospf
feature bgp
feature pim
feature interface-vlan
feature vn-segment-vlan-based
feature nv overlay
feature vpc
fabric forwarding anycast-gateway-mac 2020.DEAD.BEEF
ip pim rp-address 10.254.254.254 group-list 239.239.239.0/24
vlan 1,99-101,2500,3000
vlan 99
name L2onlyHostSegment
vn-segment 30099
vlan 100
name L2L3HostSegment
vn-segment 30000
vlan 101
name L2L3HostSegment
vn-segment 30001
vlan 2500
name FabricBD
vn-segment 50000
vlan 3000
name VPCL3Peering
route-map FABRIC-RMAP-REDIST-SUBNET permit 10
match tag 21921
vrf context TENANT1
vni 50000
rd auto
address-family ipv4 unicast
route-target both auto
route-target both auto evpn
address-family ipv6 unicast
route-target both auto
route-target both auto evpn
vpc domain 1
peer-switch
peer-keepalive destination 10.2.8.2 source 10.2.8.1 vrf management
peer-gateway
ip arp synchronize
interface Vlan100
no shutdown
vrf member TENANT1
ip address 192.168.100.1/24 tag 21921
fabric forwarding mode anycast-gateway
interface Vlan101
no shutdown
vrf member TENANT1
ip address 192.168.101.1/24 tag 21921
fabric forwarding mode anycast-gateway
interface Vlan2500
description FabricBD
no shutdown
mtu 9216
vrf member TENANT1
ip forward
interface Vlan3000
description VPC Layer-3 Peering for VXLAN
no shutdown
ip address 10.3.1.2/30 # Requires to be individual IP per VPC member
ip ospf network point-to-point
ip router ospf UNDERLAY area 0.0.0.0
ip pim sparse-mode
nve infra-vlans 3000
# required for Nexus 9300-EX/FX or Nexus 9200
interface port-channel1
description VPC Peer-Link
switchport mode trunk
spanning-tree port type network
lacp suspend-individual
vpc peer-link
hardware access-list tcam region vacl 0
# example region to free up space for arp-ether region
hardware access-list tcam region arp-ether 256 double-wide
# required for ARP suppression, requires reboot
# double-wide is required starting 7.0(3)I3(1)
# not required for Nexus 9300-EX/FX or Nexus 9200
interface nve1
mtu 9216
no shutdown
source-interface loopback1
host-reachability protocol bgp
member vni 30000
suppress-arp
mcast-group 239.239.239.100
member vni 30001
suppress-arp
mcast-group 239.239.239.101
member vni 30099
mcast-group 239.239.239.99
member vni 50000 associate-vrf
interface Ethernet1/1
switchport mode trunk
spanning-tree port type edge trunk
spanning-tree bpduguard enable
interface Ethernet1/47
description Link for VPC Peer-Link
switchport mode trunk
channel-group 1 mode active
interface Ethernet1/48
description Link for VPC Peer-Link
switchport mode trunk
channel-group 1 mode active
interface Ethernet2/1
description Link to Spine "1"
no switchport
mtu 9216
ip unnumbered loopback0
ip ospf network point-to-point
ip router ospf UNDERLAY area 0.0.0.0
ip pim sparse-mode
no shutdown
interface loopback0 # Loopback for Router ID, routing adjacency and peering
ip address 10.250.250.103/32
ip router ospf UNDERLAY area 0.0.0.0
ip pim sparse-mode
interface loopback1 # Loopback for VTEP only
ip address 10.254.254.103/32
ip address 10.254.254.1/32 secondary
ip ospf network point-to-point # will change OSPF interface back to Loopback; required for VPC
ip router ospf UNDERLAY area 0.0.0.0
ip pim sparse-mode
router ospf UNDERLAY
router-id 10.250.250.103
log-adjacency-changes detail
router bgp 65500
router-id 10.250.250.103
address-family ipv4 unicast
neighbor 10.250.250.101 remote-as 65500
update-source loopback0
address-family ipv4 unicast # optional for "show ip bgp summary" support
address-family l2vpn evpn
send-community both
vrf TENANT1
address-family ipv4 unicast
advertise l2vpn evpn
redistribute direct route-map FABRIC-RMAP-REDIST-SUBNET
maximum-paths ibgp 2
evpn
vni 30000 l2
rd auto
route-target import auto
route-target export auto
vni 30001 l2
rd auto
route-target import auto
route-target export auto
vni 30099 l2
rd auto
route-target import auto
route-target export auto
Publié par: Lukas Krattiger / Version originale en anglais
