pdate firmware of c9200l-24p-4x switch using gui/web

[imranhoque11273]

Hi, i want to update firmware of c9200l-24p-4x switch using gui/web. is it possible ? i am not seeig the firmware update option there. can you please suggest what to do ?

[Leo Laohoo · Accepted solution]

1. Log into the switch with https://IP_address
2. Administration > Software Management
3. Under Software Upgrade, choose INSTALL as the "Upgrade Method".
4. Point to the file and start the process with "Download & Install".

IMPORTANT:

• Read the Release Notes very carefully.
• Do not forget to apply SMU patches (same process as above) if necessary.

[imranhoque11273]

 

thanks a lot for the reply. but i am not getting software upgrade opting in administration tab. can you please tell me exactly where it the option.

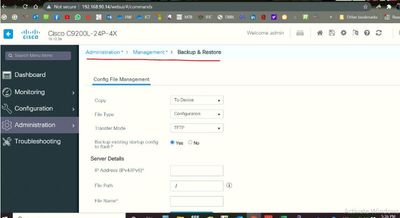

FYI, i have went to Administartion >> Management >> Backup & restore
here i only see config file management (which is related to configuration but not firmware upgrade )

also another thing is, i have downloaded the latest firmware file (.bin file) from cisco site. will it work okay ?

your reply will be very much appreciated.

BR

Imran

[imranhoque11273]

thanks a lot for the reply. but i am not getting software upgrade opting in administration tab. can you please tell me exactly where it the option.

FYI, i have went to Administartion >> Management >> Backup & restore
here i only see config file management (which is related to configuration but not firmware upgrade )

 

also another thing is, i have downloaded the latest firmware file (.bin file) from cisco site. will it work okay ?

your reply will be very much appreciated.

BR

Imran
