ISE pushs Profils but switch doesn't change any config

[Andy VALHE]

Hi everyboy,

I'm working on ISE since a few months and after a lot of work I begin to have something correct... But I have a issue that I don't understand that's why I need your expertise.

My ISE is in 2.4 patch 5

Switchs 3850 in 16.3.5b

PC on windows 8.1 with windows native supplicant 802.1x

The computer boot ISE authenticate it with mab before 802.1x, I can see it on ISE live log. Windows supplicant can be a little bit longer so why not but that's not my principal problem.

When ISE receveid the right information for 802.1x configuration, nothing happen on the switch configuration with dynamic VLAN. On other switch (same version), sometimes it works perfectly.

Do you have any explication or do you need more information ?

Cordially,

Anthony

[Francesco Molino]

Hi

On your switch, are you using ibns 2.0 configuration type? Can you share it please?
When ise authenticates your user using dot1x, can you share ise authentication log result to see what authz is being pushed?
If nothing is applied, can you run some debug radius and debug aaa on your switch to see what's happening?

[Andy VALHE]

Hello Francesco,

Thank you to take your time to answer me.

I don't use ibns 2.0, I share the configuration of one interface. Keep in mind that Vlan 200 is by default and don't need ACL at this time.

interface GigabitEthernet4/0/4

switchport access vlan 200
switchport mode access
switchport voice vlan 216
authentication event server dead action authorize vlan 200
authentication event server alive action reinitialize
authentication host-mode multi-domain
authentication order dot1x mab
authentication priority dot1x
authentication port-control auto
mab
dot1x pae authenticator
dot1x timeout tx-period 10
no macro auto processing
spanning-tree portfast

!

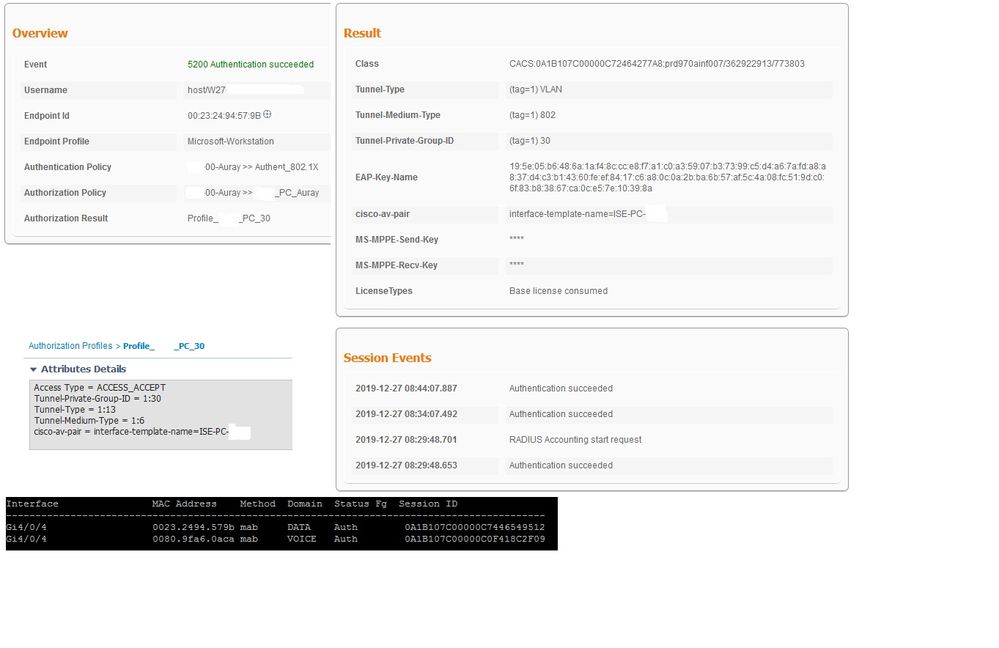

On the first image, I made result of log ISE (I hidded personnal informations), the authorization profile (It matched).

To understand, Interface template here is ISE-PC-TOTO

On the second image, I made Authentication details where you can see dot1x method authentication.

On last image, I showed the result on the switch. To understand, Interface template here is ISE-PC-OTHER and not ISE-PC-TOTO like the first screen.

ISE-PC-OTHER is the default config if nothing matched.

It seems that the switch didn't accept the Profils pushed by ISE. The voice access is correct with the right configuration by mab. The data access should be dot1x and not mab.

If you need others things, don't hesitate.

Thanks,

Andy

[Arne Bier]

It appears that the workstation performs a MAB auth before the intended 802.1X happens. I suspect that your Windows supplicant is configured for User Auth (and not Computer Auth). Once the switch has authorised that Endpoint using MAB, it thinks its job is done. Do we expect an EAP session start (from the supplicant) to change all that if one came along? Perhaps this works with CoA only. Have you enabled CoA on the switch ?

[Andy VALHE]

Hi Arne,

I have got Computer Auth on all workstations. It's strange because sometimes everything is correct sometimes no !

I just tried the CoA with the " aaa serveur radius dynamic-author command but nothing change even if I shut / no shut the interface.

[Francesco Molino]

How does your interface template looks like.
Can you configure your switch using the following guide:
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/ibns/configuration/15-e/ibns-15-e-book/ibns-int-temp.html

Test it again and let us know

[Andy VALHE]

Hello Francesco,

My template is just a description for this time so I haven't something special.

ibns is different that I wanted/understood in first, what's the real difference or interest ?

Thanks

[Jason Kunst · Accepted solution]

---

@Francesco Molino wrote:
How does your interface template looks like.
Can you configure your switch using the following guide:
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/ibns/configuration/15-e/ibns-15-e-book/ibns-int-temp.html

Test it again and let us know

---

For ISE use this guide

https://community.cisco.com/t5/security-documents/ise-secure-wired-access-prescriptive-deployment-guide/ta-p/3641515

Otherwise reach out to switching community for more questions
