Hi guys,
i am facing the issue that a high amount of packets drop occour at the dmz interface of my ASA and result in a poor performace.
I think its due to overload this interface but i am not sure. I think these are caused by FIFO drops. Maybe you could have a look and give me some hints.
A http webserver is behind the dmz interface and his one and only to-do is to deliver large downloads to a mobile device application.
Used:
ASA5520 with Software Version 9.1(2)
Interface:
Interface GigabitEthernet1/1 "dmz", is up, line protocol is up
Hardware is VCS7380 rev01, BW 1000 Mbps, DLY 10 usec
Auto-Duplex(Full-duplex), Auto-Speed(1000 Mbps)
Input flow control is unsupported, output flow control is off
Media-type configured as RJ45 connector
MAC address e05f.b904.442f, MTU 1500
IP address 194.XXX.XXX.XXX, subnet mask 255.255.255.248
700818945 packets input, 533657238216 bytes, 0 no buffer
Received 86031 broadcasts, 0 runts, 0 giants
44542 input errors, 503 CRC, 0 frame, 44039 overrun, 0 ignored, 0 abort
0 pause input, 0 resume input
1 L2 decode drops
633286935 packets output, 329190807035 bytes, 0 underruns
0 pause output, 0 resume output
0 output errors, 0 collisions, 0 interface resets
0 late collisions, 0 deferred
0 rate limit drops
0 input reset drops, 0 output reset drops
input queue (blocks free curr/low): hardware (0/0) RX and TX are rings full???
output queue (blocks free curr/low): hardware (0/0)
Traffic Statistics for "dmz":
694978423 packets input, 520532256773 bytes
633334954 packets output, 317560628598 bytes
1123842 packets dropped
1 minute input rate 36 pkts/sec, 11542 bytes/sec
1 minute output rate 40 pkts/sec, 20800 bytes/sec
1 minute drop rate, 0 pkts/sec
5 minute input rate 50 pkts/sec, 22335 bytes/sec
5 minute output rate 55 pkts/sec, 33085 bytes/sec
5 minute drop rate, 0 pkts/sec
---> The CRC Errors are solved by changing the wires. No Layer 2 issues anymore.
GigabitEthernet1/1:
received (in 14459.120 secs):
1455190 packets 1357176600 bytes
100 pkts/sec 93268 bytes/sec
transmitted (in 14459.120 secs):
1205554 packets 530192157 bytes
83 pkts/sec 36074 bytes/sec
1 minute input rate 46 pkts/sec, 17419 bytes/sec
1 minute output rate 55 pkts/sec, 30982 bytes/sec
1 minute drop rate, 0 pkts/sec
5 minute input rate 45 pkts/sec, 16497 bytes/sec
5 minute output rate 52 pkts/sec, 27821 bytes/sec
5 minute drop rate, 0 pkts/sec
---> Average packet size 100 / 93268 = 933 byte/packet
--> One minute average = 17419 / 46 = 379 byte/packet
Show blocks:
SIZE MAX LOW CNT
0 700 654 700
4 300 299 299
80 1155 1093 1154
256 3636 3403 3628
1550 9801 9264 9542
2048 3100 3054 3100
2560 2052 2051 2052
4096 100 98 100
8192 100 98 100
16384 154 152 154
65536 16 14 16
Show blocks interface:
Memory Pool SIZE LIMIT/MAX LOW CNT GLB:HELD GLB:TOTAL
DMA 2048 512 0 235 0 57096
Memory Pool SIZE LIMIT/MAX LOW CNT GLB:HELD GLB:TOTAL
DMA 1550 2560 1170 1537 0 0
Show conn count:
5791 in use, 10474 most used
Show resource usage:
Resource Current Peak Limit Denied Context
Telnet 0 2 5 0 System
SSH 0 1 5 0 System
ASDM 1 3 30 0 System
Syslogs [rate] 178 2493 N/A 0 System
Conns 6142 10474 280000 0 System
Xlates 38 51 N/A 0 System
Hosts 4935 9566 N/A 0 System
Conns [rate] 110 1405 N/A 0 System
Inspects [rate] 5 969 N/A 0 System
Routes 119 150 unlimited 0 System
Show cpu
CPU utilization for 5 seconds = 12%; 1 minute: 16%; 5 minutes: 17%
Show perfmon
PERFMON STATS: Current Average
Xlates 0/s 0/s
Connections 80/s 0/s
TCP Conns 31/s 0/s
UDP Conns 41/s 0/s
URL Access 0/s 0/s
URL Server Req 0/s 0/s
TCP Fixup 0/s 0/s
TCP Intercept Established Conns 0/s 0/s
TCP Intercept Attempts 0/s 0/s
TCP Embryonic Conns Timeout 0/s 0/s
HTTP Fixup 0/s 0/s
FTP Fixup 0/s 0/s
AAA Authen 0/s 0/s
AAA Author 0/s 0/s
AAA Account 0/s 0/s
VALID CONNS RATE in TCP INTERCEPT: Current Average
N/A 707875.00%
I think the percentage is a cosmetic error!
Within the ASA logs i see a lot of FIN TIMEOUTS. Source my mobile device on port 50973 --> Destination the Webserver on Port 80.

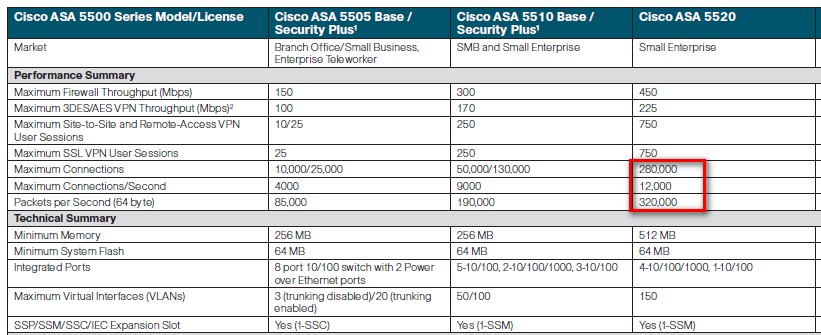

Could i handle this issue by enabling flowcontrol? Which watermark values i should use? Or is the ASA with its specs not performant enough to process the traffic that occurs?
It would be nice if you could share your ideas.
