Dynamic(Lock and Key) ACL
- Dynamic (Lock-and-key) Access Control Lists are used to block user traffic until the user telnet to the router.
- Dynamic Access List is based on Extended ACL which starts with an entry that blocks traffic through the router.
- When the user try to telnet to the router a dynamic entry is added in the ACL that allow user traffic to pass, and telnet connection is dropped. Then user traffic will pass through the router until timeout timer expire.
Client# ping 172.16.0.2
! ! ! ! !
ROUTER(config)# username admin password 0 pass
ROUTER(config)# enable secret pass
ROUTER(config)# line vty 0 4
ROUTER(config-line)# login local
ROUTER(config-line)# autocommand access-enable host timeout 5
ROUTER(config)# ip access-list extended 100
ROUTER(config-ext-nacl)# permit tcp 10.0.0.0 0.0.0.255 host 10.0.0.1 eq telnet
ROUTER(config-ext-nacl)# dynamic MYLIST timeout 5 permit ip 10.0.0.0 0.0.0.255 172.16.0.0 0.0.0.255
ROUTER(config)# interface fastEthernet 0/0
ROUTER(config-if)# ip access-group 100 in
- The line “autocommand access-enable host timeout 5” will trigger the ACL to create a temporary access list entry and enable access for the host from which the telnet session was originated. The timeout 5 is idle timeout, if no activity will happen within these 5 minutes the access will be blocked.

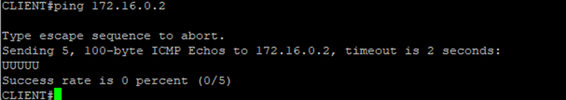

- Now, let’s try to issue a ping from Client(Host) to Server:
Good! That’s what we were expecting.
Further will telnet to Router to initiate dynamic ACL entry and allow traffic to pass.
If you verify your ACL in Router we can see one new entry (Dynamic entry) is added, so that we can see the communication up to 5 minutes.
The last entry was created dynamically and allow traffic from host 10.0.0.2 (Client) to go to 172.16.0.0/24 network (Server network).
Thank you very much...!
