This document gives several answers on frequently asked questions for PFRv3 channel state behavior.
Q1: What are all the channel operational states from a BR (border role) perspective and what are the rules/conditions to be in each state?
A1: Channel state machine from border perspective:
Overview
In PfRv3, border channel has the following three stats:
- Provisional State: to indicate whether there's TC relying on this group on Channel <DSCP, Peer-Site-ID, Any-WAN-Exit>.
- RX State: detected by local data plane to indicate the Channel reachability from remote to local.
- TX State: detected by remote site, sending to local MC by unreachable TCA.
Rx state:
Tx state:
Q2: What are all the channel operational states from a master perspective and what are the rules/conditions to be in each state?

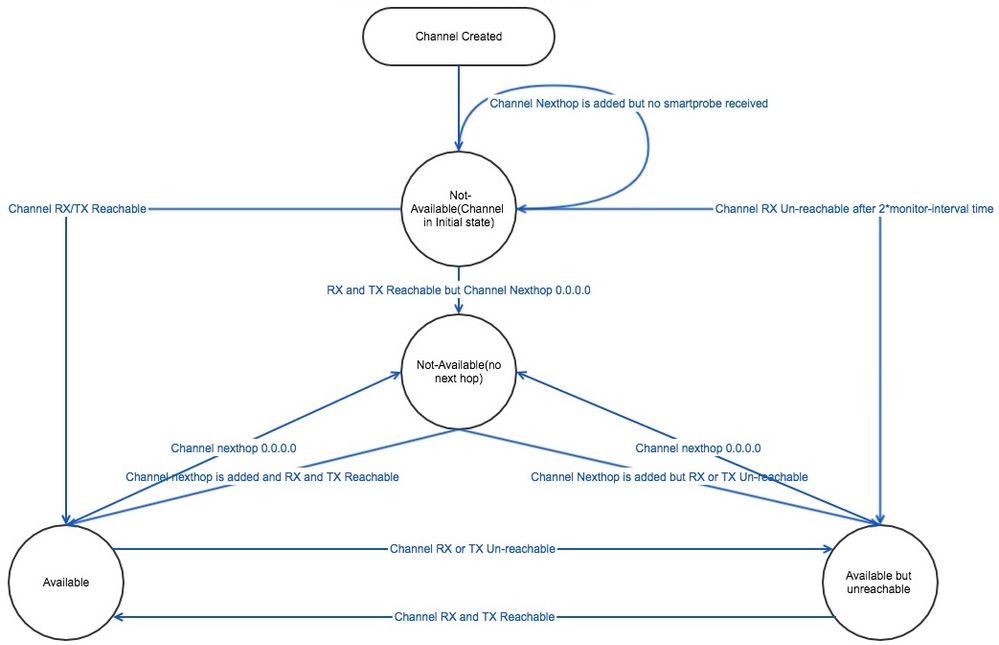

A2: Channel state machine from a master perspective:
In PfRv3, master channel has the following three stats:
- Not-available (Initial state);
- Not-available (no next-hop);
- Available;
- Available, but unreachable.
Q3: What are the channel states for Internet channels (site-id 255.255.255.255)?
A3: Channel states differ from the states for regular channels:

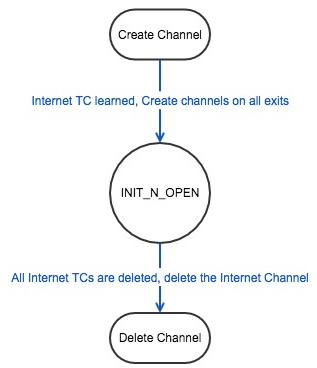

Channel Provisional State Machine:
Channel Rx State Machine:
Channel Tx State Machine:
Channel OIperational State Machine:
