Dear all,

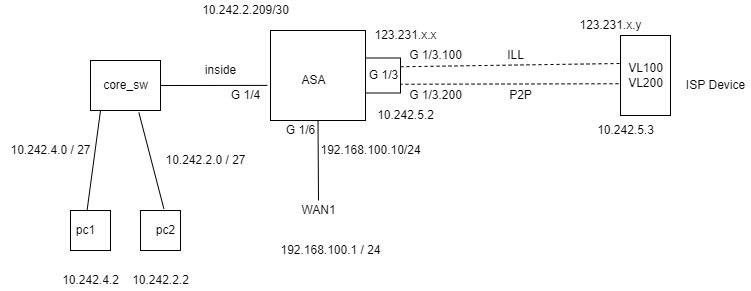

Please refer to below diagram,
Need some help regarding PBR,
The scenario is we had an ILL connected to Cisco ASA Gig 1/3. Due to company requirement we had to connect a P2P link to same physical port using sub-interfaces because of no extra physical ports left.
We have configured our existing ILL link to Gig 1/3.100 and new P2P link to Gig 1/3.200.
Now we have old PBR configuration issue in the inside Gig 1/4 interface. Even the traffic which need to go through the P2P, flow through the PBR.
PBR configurations as below.
!
interface GigabitEthernet1/4
nameif inside
security-level 100
ip address 10.242.2.209 255.255.255.248
policy-route route-map inside_routemap
!
!
route-map inside_routemap permit 5
match ip address aclinside1_4_https
set ip next-hop 192.168.100.1
!
access-list aclinside1_4_https extended deny ip 10.242.1.0 255.255.255.0 10.242.2.0 255.255.255.240
access-list aclinside1_4_https extended permit ip 10.242.1.0 255.255.255.0 any
access-list aclinside1_4_https extended deny ip 10.242.4.0 255.255.255.0 object-group DM_INLINE_NETWORK_6
access-list aclinside1_4_https extended permit ip 10.242.4.0 255.255.255.0 any
Our remote site LAN block is 172.19.8.0/24. When we ping to 172.19.8.16 from 10.242.4.2 , it goes through the PBR,
How do I exclude the traffic that goes to 172.19.8.0/24 from inside zone.
NOTE - we have already configured static route and access rules for P2P connection.
Thanks.
