why is my web server unable to ping my HQ through firewall.Please help me, my hair is dropping off..

[lightning668]

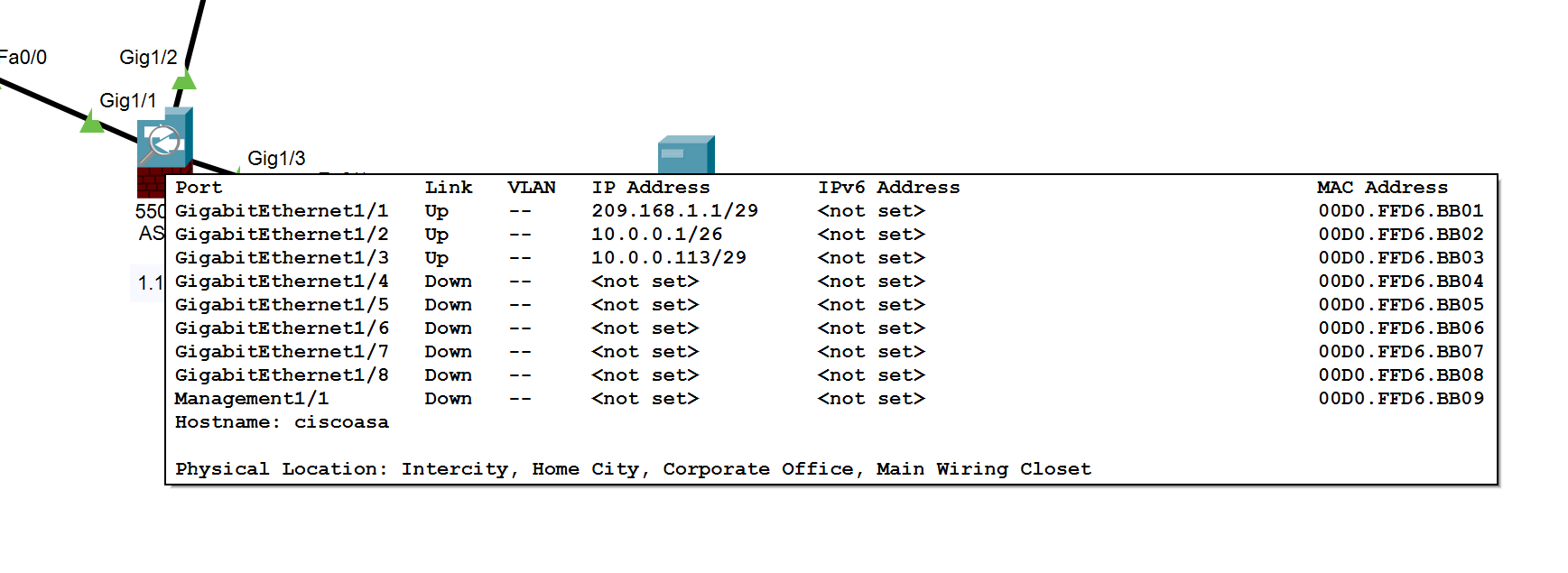

Hi guys, my webserver IP address is 10.0.0.114. I've configured my g1/1 nameif as outside and g1/2 nameif as inside, objects network and access-list to permit over port 443. however, it seems like it just can't ping from HQ to the web server. neither can web server ping HQ.

[Georg Pauwen]

Hello,

do you have the below configured on the firewall:

class-map inspection_default
match default-inspection-traffic
!
policy-map global_policy
class inspection_default
inspect icmp
!
service-policy global_policy global

If it still does not work after adding this, post the zipped Packet Tracer project (.pkt) file.

[lightning668]

it still doesn't work, below is my vlsm table and pkt file

[Georg Pauwen · Accepted solution]

What are the username/password combinations for the routers ?

Change the IP addresses of the link between the ASA outside interface and the HQ to something other than the 10 subnet, e.g.:

ASA

interface GigabitEthernet1/2
nameif outside
security-level 0
ip address 209.12.12.2 255.255.255.252
!
route outside 0.0.0.0 0.0.0.0 209.12.12.1 1

HQ Router

interface FastEthernet0/0
ip address 209.12.12.1 255.255.255.252

[lightning668]

Username for routers is cisco password is cisco . for the firewall, there is no password configured. I tried to change the link between the ASA outside interface and the HQ to 209 address but it still doesn't seem to be working

[Georg Pauwen · Accepted solution]

Hello,

for some reason, the ASA does not work when you use the same classfull network on the inside and on the network on the outside.

I changed the IP address of GigabitEthernet1/1 to 192.168.10.0/24, at least the PC2 on the very right can now ping the laptop on the very top left. I also added a 'default-infornation originate' to the OSPF process on the HQ router.

Attached the revised file.
