Applcation-Aware-Routing is working incorrectly

Ha Dao
Level 1
Level 1

I am using version 20.1.6, with cEdge ISR4331. I deploy AAR follow this guide:

https://www.cisco.com/c/en/us/td/docs/solutions/CVD/SDWAN/cisco-sdwan-application-aware-routing-deploy-guide.html#ProcessMonitortheWANtransportpathcharacteristics



My policy is prefer windows share file (dest port 445) on Internet tunnel.

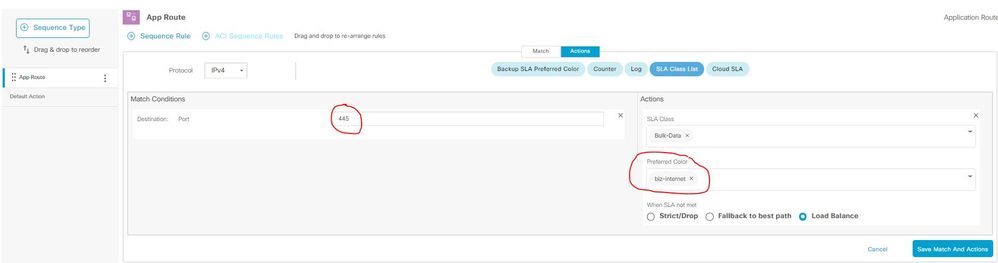

I setup like this:

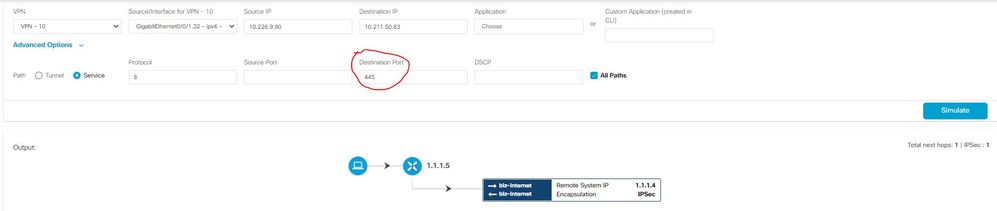

If I check by simulate function, it is ok:

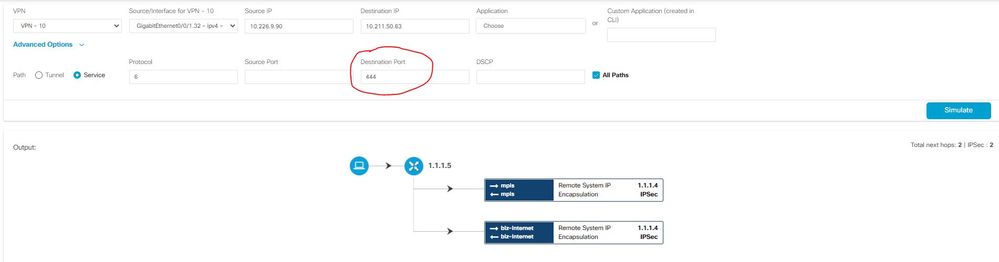

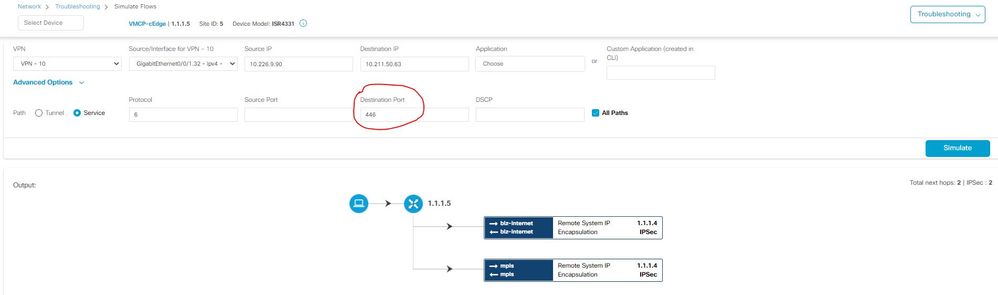

For other port than 445, traffic is load-balanced:






But when I test copy data by window share file between 2 sites, I see the traffic is still load-balanced. I checked it on other NMS then I am sure about that:




And when I try to shutdown the MPLS tunnel Interface then speed is good, it really only transport via Internet tunnel:




How can I fix it, guys ?
