Forwarding Class in Centralized Data Policy - SDWAN

[shubhjais]

I want to assign forwarding class/QOS Map to application list in Centralized data Policy. I see an option in traffic policy in Centralized Policy-->traffic Policy-->traffic data-->sequence type QOS--match application list and accept forwarding class. However, I dont see any way of creating forwarding class in centralized policy. Has anybody tried it?

[Kanan Huseynli]

Hi,

put class value manually by typing.

https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/policies/ios-xe-17/policies-book-xe/centralized-policy.html

Forwarding Class

Assign a forwarding class to matching data packets.

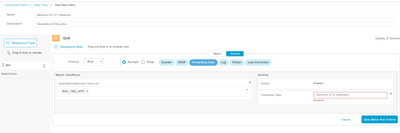

In the Match conditions, click Forwarding Class. In the Forwarding Class field, type the class value, which can be up to 32 characters long.
