JumpCloud is a cloud-based open directory solution that offers, among others, features such as Cloud Directory, Multi-Factor Authentication (MFA), Single Sign-On (SSO), and Mobile Device Management (MDM).
For more information on JumpCloud, please see www.jumpcloud.com.
This article intends to provide example configuration for authenticating users logging into the Cisco ISE Sponsor Portal against JumpCloud using SAML/SSO.
The content assumes the reader is familiar with Cisco ISE basic functionality as well as the Guest/Sponsor features. If you are new to Cisco ISE or these features, please see the available documentation as well as the ISE Webinars available from the link below.
https://cs.co/ise-resources#Learn
This configuration was tested in a Non-Production lab environment using the following components:
The following diagram illustrates the high level communication flow for the SAML/SSO authentication for the Sponsor Portal.
Example:
Example:
Example:
Example:
Example:
Example:
Example:

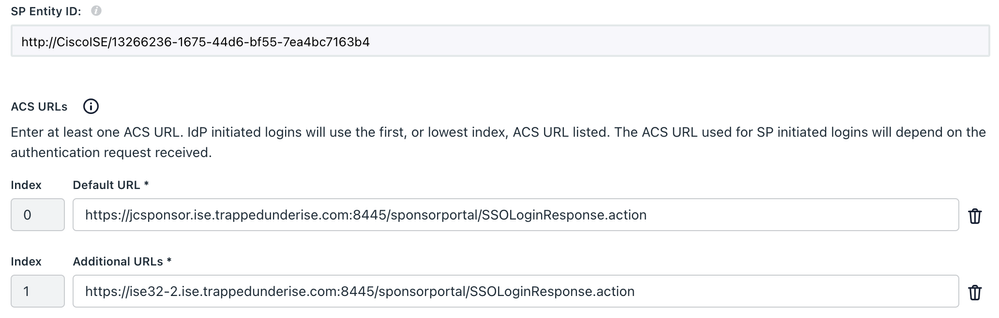

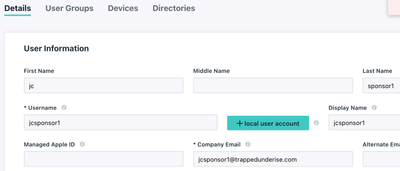

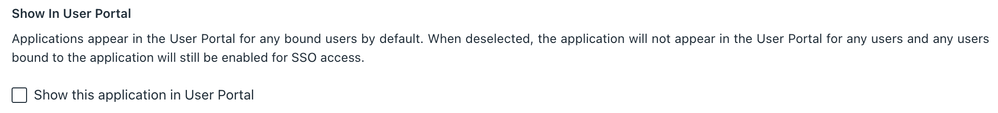

JumpCloud will create a public certificate and pop a message with a link to download the certificate. When testing this flow, it was not found to be necessary to upload this certificate to ISE.
When the user opens a browser and connects to the 'friendly FQDN' configured for the Sponsor Portal (jcsponsor.ise.trappedunderise.com; in this example), they will be redirected to the JumpCloud SSO login portal to enter their email and password.
Example:
Upon successful login, the browser will be redirected back to the Sponsor Portal and display the next page in the configured portal flow; in this case, the Acceptable Use Policy.
Example:
More detail on the SAML flow can be seen by using the SAML-tracer extension in Firefox, or another similar browser tool.
In this example, when the SAML response from JumpCloud is redirected back to ISE through the browser, you can see the POST message for the SSOLoginResponse.action target.
In the Summary tab, the following information can be seen from the assertion data sent by JumpCloud:
To see the details on the ISE side, the Debug Wizard can be used to set the necessary logs to Debug level.
2023-08-25 09:37:39,196 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-7][[]] cisco.cpm.saml.framework.SAMLUtils -::::- SAMLUtils::isLoadBalancerConfigured() - LB NOT configured for: Jumpcloud_SSO
2023-08-25 09:37:39,196 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-7][[]] cisco.cpm.saml.framework.SAMLUtils -::::- SAMLUtils::isOracle() - checking whether IDP URL indicates that its OAM. IDP URL: https://sso.jumpcloud.com/saml2/ciscoise
2023-08-25 09:37:39,196 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-7][[]] cisco.cpm.saml.framework.SAMLUtils -::::- SPProviderId for Jumpcloud_SSO is: http://CiscoISE/13266236-1675-44d6-bf55-7ea4bc7163b4
2023-08-25 09:37:39,196 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-7][[]] cisco.cpm.saml.framework.SAMLUtils -::::- SAMLUtils::isLoadBalancerConfigured() - LB NOT configured for: Jumpcloud_SSO
2023-08-25 09:37:39,196 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-7][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- SAML request - providerId (as should be found in IdP configuration):http://CiscoISE/13266236-1675-44d6-bf55-7ea4bc7163b4
2023-08-25 09:37:39,196 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-7][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- SAML request - returnToId (relay state):_13266236-1675-44d6-bf55-7ea4bc7163b4_DELIMITERportalId_EQUALS13266236-1675-44d6-bf55-7ea4bc7163b4_SEMIportalSessionId_EQUALS8aa0a2b7-57ed-4409-aa50-b59c04a2134f_SEMItoken_EQUALS49WXXFLSZ5GV9NOM02CFAOQO6G536GNY_SEMI_DELIMITERjcsponsor.ise.trappedunderise.com
2023-08-25 09:37:39,196 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-7][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- SAML request - spUrlToReturnTo:https://jcsponsor.ise.trappedunderise.com:8445/sponsorportal/SSOLoginResponse.action
2023-08-25 09:37:40,389 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- SAML HTTPRequest - Portal Session info:portalId=13266236-1675-44d6-bf55-7ea4bc7163b4;portalSessionId=8aa0a2b7-57ed-4409-aa50-b59c04a2134f;token=49WXXFLSZ5GV9NOM02CFAOQO6G536GNY;
2023-08-25 09:37:40,389 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- SAML response - Relay State:_13266236-1675-44d6-bf55-7ea4bc7163b4_DELIMITERportalId=13266236-1675-44d6-bf55-7ea4bc7163b4;portalSessionId=8aa0a2b7-57ed-4409-aa50-b59c04a2134f;token=49WXXFLSZ5GV9NOM02CFAOQO6G536GNY;_DELIMITERjcsponsor.ise.trappedunderise.com
2023-08-25 09:37:40,389 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- SAML flow initiator PSN's Host name is:jcsponsor.ise.trappedunderise.com
2023-08-25 09:37:40,389 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- Is redirect requiered: InitiatorPSN:jcsponsor.ise.trappedunderise.com This node's host name:ise32-2 LB:null request Server Name:jcsponsor.ise.trappedunderise.com
2023-08-25 09:37:40,390 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- To compare address obj with requestServerName - hostAddress:192.168.222.52 hostName:jcsponsor.ise.trappedunderise.com
2023-08-25 09:37:40,390 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- This node is the initiator (jcsponsor.ise.trappedunderise.com) this node host name is:jcsponsor.ise.trappedunderise.com
2023-08-25 09:37:40,390 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] org.opensaml.xml.parse.BasicParserPool -::::- Setting DocumentBuilderFactory attribute 'http://javax.xml.XMLConstants/feature/secure-processing'
2023-08-25 09:37:40,390 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] org.opensaml.xml.parse.BasicParserPool -::::- Setting DocumentBuilderFactory attribute 'http://apache.org/xml/features/disallow-doctype-decl'
2023-08-25 09:37:40,392 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] opensaml.ws.message.decoder.BaseMessageDecoder -::::- Beginning to decode message from inbound transport of type: org.opensaml.ws.transport.http.HttpServletRequestAdapter
2023-08-25 09:37:40,392 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] opensaml.saml2.binding.decoding.HTTPPostDecoder -::::- Decoded SAML relay state of: _13266236-1675-44d6-bf55-7ea4bc7163b4_DELIMITERportalId_EQUALS13266236-1675-44d6-bf55-7ea4bc7163b4_SEMIportalSessionId_EQUALS8aa0a2b7-57ed-4409-aa50-b59c04a2134f_SEMItoken_EQUALS49WXXFLSZ5GV9NOM02CFAOQO6G536GNY_SEMI_DELIMITERjcsponsor.ise.trappedunderise.com
2023-08-25 09:37:40,392 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] opensaml.saml2.binding.decoding.HTTPPostDecoder -::::- Getting Base64 encoded message from request
2023-08-25 09:37:40,392 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] opensaml.ws.message.decoder.BaseMessageDecoder -::::- Parsing message stream into DOM document
2023-08-25 09:37:40,394 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] opensaml.ws.message.decoder.BaseMessageDecoder -::::- Unmarshalling message DOM
2023-08-25 09:37:40,394 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] opensaml.xml.signature.impl.SignatureUnmarshaller -::::- Starting to unmarshall Apache XML-Security-based SignatureImpl element
2023-08-25 09:37:40,394 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] opensaml.xml.signature.impl.SignatureUnmarshaller -::::- Constructing Apache XMLSignature object
2023-08-25 09:37:40,394 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] opensaml.xml.signature.impl.SignatureUnmarshaller -::::- Adding canonicalization and signing algorithms, and HMAC output length to Signature
2023-08-25 09:37:40,394 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] opensaml.xml.signature.impl.SignatureUnmarshaller -::::- Adding KeyInfo to Signature
2023-08-25 09:37:40,397 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] opensaml.ws.message.decoder.BaseMessageDecoder -::::- Message succesfully unmarshalled
2023-08-25 09:37:40,397 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] opensaml.saml2.binding.decoding.HTTPPostDecoder -::::- Decoded SAML message
2023-08-25 09:37:40,397 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] opensaml.saml2.binding.decoding.BaseSAML2MessageDecoder -::::- Extracting ID, issuer and issue instant from status response
2023-08-25 09:37:40,397 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] opensaml.ws.message.decoder.BaseMessageDecoder -::::- No security policy resolver attached to this message context, no security policy evaluation attempted
2023-08-25 09:37:40,397 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] opensaml.ws.message.decoder.BaseMessageDecoder -::::- Successfully decoded message.
2023-08-25 09:37:40,397 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] opensaml.common.binding.decoding.BaseSAMLMessageDecoder -::::- Checking SAML message intended destination endpoint against receiver endpoint
2023-08-25 09:37:40,397 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] opensaml.common.binding.decoding.BaseSAMLMessageDecoder -::::- Intended message destination endpoint: https://jcsponsor.ise.trappedunderise.com:8445/sponsorportal/SSOLoginResponse.action
2023-08-25 09:37:40,397 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] opensaml.common.binding.decoding.BaseSAMLMessageDecoder -::::- Actual message receiver endpoint: https://jcsponsor.ise.trappedunderise.com:8445/sponsorportal/SSOLoginResponse.action
2023-08-25 09:37:40,397 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- SAML decoder's URIComparator - [https://jcsponsor.ise.trappedunderise.com:8445/sponsorportal/SSOLoginResponse.action] vs. [https://jcsponsor.ise.trappedunderise.com:8445/sponsorportal/SSOLoginResponse.action]
2023-08-25 09:37:40,397 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] opensaml.common.binding.decoding.BaseSAMLMessageDecoder -::::- SAML message intended destination endpoint matched recipient endpoint
2023-08-25 09:37:40,397 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- SAML Response: statusCode:urn:oasis:names:tc:SAML:2.0:status:Success
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Found attribute name : mail
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Delimeter not configured, Attribute=<mail> add value=<jcsponsor1@trappedunderise.com>
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Set on IdpResponse object - attribute<mail> value=<jcsponsor1@trappedunderise.com>
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Found attribute name : givenName
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Delimeter not configured, Attribute=<givenName> add value=<jc>
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Set on IdpResponse object - attribute<givenName> value=<jc>
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Found attribute name : objectGUID
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Attribute=<objectGUID> has no value in the response
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Found attribute name : memberOf
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Delimeter not configured, Attribute=<memberOf> add value=<JC Wifi Visitor Sponsors>
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Set on IdpResponse object - attribute<memberOf> value=<JC Wifi Visitor Sponsors>
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Found attribute name : sn
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Delimeter not configured, Attribute=<sn> add value=<sponsor1>
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Set on IdpResponse object - attribute<sn> value=<sponsor1>
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Found attribute name : userPrincipalName
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Attribute=<userPrincipalName> has no value in the response
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Found attribute name : username
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Delimeter not configured, Attribute=<username> add value=<jcsponsor1>
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Set on IdpResponse object - attribute<username> value=<jcsponsor1>
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [SAMLAttributesParser:readDict]
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.cfg.IdentityProviderMgr -::::- getDict: Jumpcloud_SSO
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [SAMLAttributesParser:readDict]: read Dict attribute=<ExternalGroups>
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Attribute <mail> NOT configured in IdP dictionary, NOT caching
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Attribute <givenName> NOT configured in IdP dictionary, NOT caching
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [cacheGroupAttr] Adding to cache ExternalGroup values=<JC Wifi Visitor Sponsors>
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Attribute <sn> NOT configured in IdP dictionary, NOT caching
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [parseAttributes] Attribute <username> NOT configured in IdP dictionary, NOT caching
2023-08-25 09:37:40,400 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cisco.cpm.saml.framework.SAMLSessionDataCache -::::- [storeAttributesSessionData] idStore=<Jumpcloud_SSO> userName=jcsponsor1@trappedunderise.com>
2023-08-25 09:37:40,401 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLAttributesParser -::::- [SAMLAttributesParser:getEmail] The email attribute not configured on IdP
2023-08-25 09:37:40,401 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- SAML Response: email attribute value:
2023-08-25 09:37:40,401 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- SAMLFacadeImpl:: IDP Groups in SAML assertion: [JC Wifi Visitor Sponsors]
2023-08-25 09:37:40,401 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- SAML Response: found signature on the reponse
2023-08-25 09:37:40,401 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- Retrieve [CN=JumpCloudSAMLUser, OU=JumpCloudSAMLIdP, O=Cisco, L=Boulder, ST=CO, C=US] as signing certificates
2023-08-25 09:37:40,401 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- SAML Response: loginInfo:SAMLLoginInfo: name=jcsponsor1@trappedunderise.com, format=urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress, sessionIndex=cd2ba616-862e-496b-8934-4b998d534345, time diff=-208, attributeValues=null
2023-08-25 09:37:41,168 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- AuthenticatePortalUser - Session:null IDPResponse:
IdP ID: Jumpcloud_SSO
Subject: jcsponsor1@trappedunderise.com
Group: JC Wifi Visitor Sponsors
SAML Status Code:urn:oasis:names:tc:SAML:2.0:status:Success
SAML Success:true
SAML Status Message:null
SAML email:
SAML Exception:nullUserRole : SPONSOR
2023-08-25 09:37:41,172 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- AuthenticatePortalUser - about to call authenticateSAMLUser messageCode:null subject:jcsponsor1@trappedunderise.com
2023-08-25 09:37:41,322 INFO [RMI TCP Connection(3085)-127.0.0.1][[]] api.services.server.role.RoleImpl -::::- Fetched Role Information based on RoleID: 6dd3b090-8bff-11e6-996c-525400b48521
2023-08-25 09:37:41,330 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cisco.cpm.saml.framework.SAMLSessionDataCache -::::- [SAMLSessionDataCache:getGroupsOnSession] idStore=<Jumpcloud_SSO> userName=<jcsponsor1@trappedunderise.com>
2023-08-25 09:37:41,330 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cisco.cpm.saml.framework.SAMLSessionDataCache -::::- [getAttributeOnSession] idStore=<Jumpcloud_SSO> userName=<jcsponsor1@trappedunderise.com> attributeName=<Jumpcloud_SSO.ExternalGroups>
2023-08-25 09:37:41,330 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- AuthenticatePortalUser - added user groups from SAML response to AuthenticationResult, all retrieved groups:[JC Wifi Visitor Sponsors]
2023-08-25 09:37:41,330 DEBUG [https-jsse-nio-192.168.222.52-8445-exec-2][[]] cpm.saml.framework.impl.SAMLFacadeImpl -::::- Authenticate SAML User - result:PASSED
When attempting to logout of the Sponsor Portal, the following error is seen.
This is expected behaviour due to the fact that JumpCloud does not support a Logout URL in the SSO Application at this time.
