Cisco ISE with Microsoft Cloud PKI

[Greg Gibbs]

• Introduction
• What is Microsoft Cloud PKI?
• Cloud PKI and Cisco ISE
• High Level Flow Example
• Solution Validation Setup
• Entra ID Groups
• License Assignment
• Confirm Group License Assignment in Intune
• Create the Cloud PKI Instance
• Download the Root and Issuing CA Certificates
• Create Certificate Profiles
• Create Trusted Certificate Profile - Cloud PKI Root
• Create Trusted Certificate Profile - Cloud PKI Issuing
• Create Trusted Certificate Profile - ADCS
• Create SCEP Profile – User Certificate
• Create SCEP Profile – Device
• Create a Wi-Fi Profile
• ISE Configuration
• Import the Cloud PKI Trust Chain to ISE
• Configure the CRL Distribution Point
• ISE Policy Configuration
• Certificate Authentication Profile
• Authentication Policy
• Authorization Policy
• ISE Live Logs

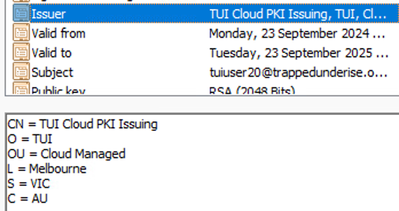

• Client Certificate Attributes
• Device (Computer) Certificate examples
• Client Supplicant Attributes

Introduction

As customers are moving to a cloud-first strategy, many are looking to decommission on-premise and/or non-cloud-native solutions in favour of more cloud-native and PaaS/SaaS delivered solutions. One solution that many customers are looking to replace (or avoid deploying in the first place) is Active Directory Certificate Services (ADCS).

Microsoft released their Cloud PKI solution to the public in early 2024 and I have had several people asking questions about using this

solution in conjunction with Cisco ISE, so I thought it would be useful to provide some guidance and examples around this. After doing some research on the solution, I used the available trial licensing to set it up in my lab and perform some testing of common 802.1x use cases with Cisco ISE.

What is Microsoft Cloud PKI?

Microsoft Cloud PKI is a PaaS (Platform as a Service) offering that is tightly integrated with Intune and licensed as either an add-on to an existing Intune license or included in the Intune Suite. It provides a tiered Certificate Authority (CA) function and is intended to manage the certificate lifecycle for Intune-managed devices.

Cloud PKI uses SCEP (Simple Certificate Enrollment Protocol) to enrol User and Device certificates on Intune-managed devices. This is similar to the SCEP enrollment provided by ADCS using NDES (Network Device Enrollment Service), but ADCS provides much greater capabilities that Cloud PKI does not (at the time of this writing). For example, ADCS provides the ability to sign Certificate Signing Requests (CSRs) from other servers, network and security devices, users, and endpoints via the Certificate Enrollment Web Service and other mechanisms. These additional capabilities are not provided by Cloud PKI at this time.

More information about Cloud PKI can be found at the following link.

https://www.microsoft.com/en-au/security/business/endpoint-management/microsoft-cloud-pki

Cloud PKI and Cisco ISE

In the case of Cisco ISE, this means that, while Cloud PKI is capable of enrolling certificates for Users and Devices authenticating against Cisco ISE, Cloud PKI is not capable of signing the certificates used by ISE itself (for example, the Admin and EAP functions). Those certificates would need to be signed by either an Enterprise CA (like ADCS) or another CA solution employed by the organization.

While there is no direct integration between Cisco ISE and Cloud PKI, there are dependencies on both sides for Users/Devices enrolled using Cloud PKI and authenticating against ISE. One such dependency is the certificate trust chain. If we consider a common use case of 802.1x with EAP-TLS, there must be mutual trust between the client (user/device) and RADIUS server (ISE).

This means that, in order for the EAP-TLS communication to succeed, both of the following conditions must be met:

• The client must have the certificate trust chain (Root and all Intermediate certificates) that signed the ISE EAP certificate in their User and/or Computer trust store (depending on the use case)
• ISE must have the certificate trust chain (Root and all Intermediate certificates) that signed the User/Device EAP certificate in its Trusted Certificates store

The only direct interaction between ISE and Cloud PKI would be ISE performing a certificate revocation check against the CRL (Certificate Revocation List) published by Cloud PKI during the Authentication stage (if configured).

High Level Flow Example

The following diagram illustrates a high level flow of the functions and communications involved in this example. As shown in the diagram, Intune is solely responsible for the following functions with no interaction from ISE.

• Installing trust chains for both the client (user/device certificates from Cloud PKI) and the ISE EAP (signed by a separate CA) certificates to the relevant user/device trust store locations.
• Enrolling the user/device certificates signed by Cloud PKI and installing them in the relevant user/device trust store locations.
• Configuring the endpoint supplicant (Wired, Wireless) as needed for 802.1x, including the necessary Trusted CA and certificate matching settings.

It is important to note that 802.1x connectivity relies on the proper certificates and supplicant configuration, so those steps must be done prior to connecting to an 802.1x secured network. As both Intune and Cloud PKI are cloud-based solutions, these processes can take place from any internet connection.

Solution Validation Setup

The following sections provide details on the lab setup that was used as an example to validate the solution. The setup was based on the following scenario.

• Entra Joined (not Hybrid Joined) Windows VM enrolled with Intune
• Windows 11 Pro Version 23H2
• Cisco ISE 3.3 patch 3
• Wireless 802.1x using EAP-TLS with User or Computer Authentication

While this example uses EAP-TLS, other certificate-based authentication methods could also be used in conjunction with Cloud PKI. See the following article for currently supported use cases involving Cisco ISE, Entra ID, and Intune.

Cisco ISE with Microsoft Active Directory, Entra ID, and Intune

Entra ID Groups

I started by creating two new Security Groups in Entra ID that were used to limit the scope of the solution validation to specific Users and Devices. My test User account and Device were added to the respective Group.

Example

License Assignment

The Cloud PKI license was assigned to the above Groups by logging into Microsoft 365 (https://admin.microsoft.com) and following these steps.

• Navigate to Billing > Licenses
• Select the Microsoft Cloud PKI subscription
• Select the Groups tab and click Assign Licenses

• Select the Groups created in the prior step

The resulting license assignments are shown.

Example

Confirm Group License Assignment in Intune

To confirm that Intune shows the license assignments, follow these steps:

• Open the Intune admin center (https://intune.microsoft.com)
• Navigate to Groups > All Groups and select the groups defined in the prior steps (e.g. Cloud PKI Users)
• Navigate to Manage > Licenses

Create the Cloud PKI Instance

Use the following steps to create the Cloud PKI instance.

1. In the Intune admin center, navigate to Tenant administration > Cloud PKI
2. On the Basics tab, provide the Name and (optional) Description and click Next



3.  On the Configuration Settings, define the settings appropriate for your environment and click Next

   • As this CA will mainly be used for testing 802.1x, only the Client auth and OCSP signing EKUs were added

     Example
      
4. On the Scope tags tab, define any necessary tags for your environment (optional)
5. On the Review + create tab, verify the settings are correct and click Create
6. Repeat the above steps for the Issuing CA

Examples

The resulting CAs will be shown.

Example

Download the Root and Issuing CA Certificates

In the Tenant administration > Cloud PKI blade, select the Root CA that was created.

• Copy the URL for the CRL distribution point and save it locally
• Next to the Download certificate field, click the Download button
• Save the certificate to a secure location

Example

• Repeat the above steps to copy the SCEP URI and save it locally
• Download the Issuing CA certificate and save it to a secure location

Example



Create Certificate Profiles

The following Certificate Profiles will be configured for this example lab:

• Trusted certificate - Cloud PKI Root
• Trusted certificate - Cloud PKI Issuing
• Trusted certificate - ADCS (CA that signed the ISE EAP certificate)
• SCEP Profile - User
• SCEP Profile - Device

In the Intune admin center, navigate to Devices > Manage Devices > Configuration

Create Trusted Certificate Profile - Cloud PKI Root

1. Click Create > New Policy
2. Platform = Windows 10 and later
3. Profile type = Templates
4. Template name = Trusted certificate
5. Click Create

   Example



6. On the Basics tab, define the Name and (optional) Description and click Next

   Example

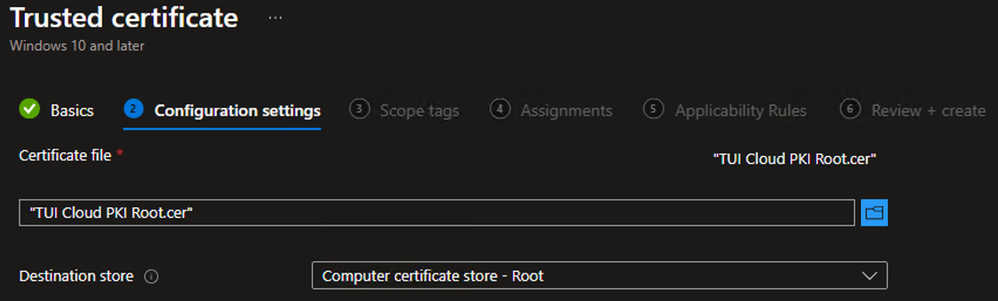

7. On the Configuration settings tab, browse the Root CA certificate downloaded in the earlier step.
8. For the Destination store, select Computer certificate store – Root
9. Click Next

   Example


10. On the Scope tags tab, select any tags necessary for your environment (optional)
11. Click Next


12. On the Assignments tab, Select Add Groups
13.  Under the Included Groups section, select the Cloud PKI Devices group, Cloud PKI Users group, and/or any other Device groups to which the Root CA certificate should be deployed



    ** NOTE: The same User group that will be used to deploy the SCEP certificate must be included in this Trusted certificate profile.
    When creating the SCEP certificate profile in later steps, this Root profile is specified. If the User group is not included here, the SCEP Profile will remain in a Pending state.

14. (Optional) Under the Excluded Groups section, select any Groups that should be explicitly excluded
15. Click Next

    Example



16. On the Applicability Rules tab, add any rule definitions required for your environment (optional)
17. Click Next


18. On the Review + create tab, verify the settings are correct and click Create



Example

Create Trusted Certificate Profile - Cloud PKI Issuing

1. Repeat steps 1 through 5 above to create a new Trusted certificate template
2. On the Basics tab, define the Name and (optional) Description and click Next

   Example



3. On the Configuration settings tab, browse the Issuing CA certificate downloaded in the earlier step.
4. For the Destination store, select Computer certificate store – Intermediate
5. Click Next

   Example

6. Repeat the steps above to define any necessary Scope tags, Device Group Assignments, and Applicability Rules
7. On the Review + create tab, verify the settings are correct and click Create



Example

Create Trusted Certificate Profile - ADCS

• Repeat the steps above to create a Trusted Certificate Profile for Root and Intermediate certificate(s) that signed the ISE EAP certificate

  Examples


Create SCEP Profile – User Certificate

1. Click Create > New Policy
2. Platform = Windows 10 and later
3. Profile type = Templates
4. Template name = SCEP certificate
5. Click Create

   Example



6. On the Basics tab, define the Name and (optional) Description and click Next

   Example



7. On the Configuration settings tab, select the User Certificate type
8. Input the Subject name format as per your requirements. For this example, I have defined the following:


   • CN = User Principal Name for the enrolled User (this value must be in the CN or SAN for ISE Authorization against Entra ID using REST ID)
   • OU = EntraID Users (defined for use as a matching condition in ISE policies)
   • O = TUI
   • L = Melbourne
   • ST = VIC
   • C = AU


9. Input the Subject alternative name as per your requirements. For this example I have defined the following:


   • URI = ID:Microsoft Endpoint Manager:GUID:{{DeviceId}} (this value is used for ISE integration with Intune MDM for device Registration/Compliance checks)
   • Email address = Email address of the enrolled user


10. Define the Certificate validity period as per your requirements
11. Define the Key Storage Provider (KSP) to be used
12. For the Key usage, select both Digital signature and Key encipherment
13. Select the desired Key size and Hash algorithm
14. Click the + Root certificate link and select the Trusted certificate profile created earlier for the Root CA certificate
15. For the Extended key usage, use the drop-down for the Predefined values and select the Client authentication as well as any other desired EKUs
16. Define the desired Renewal threshold (%)
17. In the SCEP Server URLs field, paste in the SCEP URI string that was copied during the Cloud PKI Issuing CA configuration
18. Click Next


    Example



19. On the Scope tags tab, select any tags necessary for your environment (optional)
20. Click Next


21. On the Assignments tab, Select Add Groups
22.  Under the Included Groups section, select the Cloud PKI Users group and/or any other User groups to which the identity certificate should be deployed
23. (Optional) Under the Excluded Groups section, select any Groups that should be explicitly excluded
24. Click Next

    Example



25. On the Applicability Rules tab, add any rule definitions required for your environment (optional)
26. Click Next


27. On the Review + create tab, verify the settings are correct and click Create



Example

Create SCEP Profile – Device

1. Repeat step 1 through 5 above to create a new SCEP certificate template
2. On the Basics tab, define the Name and (optional) Description and click Next


   Example



3. On the Configuration settings tab, select the Device Certificate type
4. Input the Subject name format as per your requirements. For this example, I have defined the following:


   • CN = Device Name for the enrolled Device
   • OU = Entra Joined Device (defined for use as a matching condition in ISE policies)
   • O = TUI
   • L = Melbourne
   • ST = VIC


5. Input the Subject alternative name as per your requirements. For this example, I have defined the following:


   • URI = ID:Microsoft Endpoint Manager:GUID:{{DeviceId}} (this value is used for ISE integration with Intune MDM for device Registration/Compliance checks)

     Example

6. Repeat the steps above to configure the remaining settings as per your requirements
7. Click Next
8. Repeat the steps above to define the necessary Scope tags, Device Group Assignments, and Applicability Rules for your environment
9. On the Review + create tab, verify the settings are correct and click Create



Example

Create a Wi-Fi Profile

1. In the Intune admin center, navigate to Devices > Manage Devices > Configuration
2. Click Create > New Policy
3. Platform = Windows 10 and later
4. Profile type = Templates
5. Template name = Wi-Fi
6. Click Create

   Example



7. On the Basics tab, define the Name and (optional) Description and click Next

   Example



8. Configure the Wifi Profile settings as per your environment and click Next

   Example


   ** PLEASE NOTE **
   The Certificate server names description is a bit misleading. The values specified here must be the CN value(s) for the EAP certificate presented by ISE.
   The Profile selected under the Root certificates for server validation section must be the Root CA that signed the EAP certificate on the ISE PSN. This certificate would be signed by a different CA than the Microsoft Cloud PKI.


9.  On the Scope tags tab, select any tags necessary for your environment (optional)
10. Click Next


11. On the Assignments tab, Select Add Groups
12.  Under the Included Groups section, select the Cloud PKI Devices group and/or any other Device groups to which the Wifi profile should be deployed
13. (Optional) Under the Excluded Groups section, select any Groups that should be explicitly excluded
14. Click Next


    Example



     

15. On the Applicability Rules tab, add any rule definitions required for your environment (optional)
16. Click Next


17. On the Review + create tab, verify the settings are correct and click Create

    Example

ISE Configuration

Now that the configuration is done on the Intune side, the remaining configuration must be completed in ISE.

Import the Cloud PKI Trust Chain to ISE

1. On the Primary PAN, navigate to Administration > System > Certificate Management > Trusted Certificates
2. Click Import
3. Click the Choose File button and navigate to the Cloud PKI Root CA certificate downloaded in the early steps
4. Define the Friendly Name
5. Select the checkbox for the following options:

   • Trust for authentication within ISE
   • Trust for client authentication and Syslog


6. Click Submit

   Example



7. Repeat the steps above for the Cloud PKI Issuing CA certificate downloaded in the early steps



You should now see the certificates for all required trust chains in the Trusted Certificates page.

Example

In this example, the TUI-DC1-CA is the Root CA that signed the ISE EAP Certificate

Configure the CRL Distribution Point

1. On the Trusted Certificates page, select the Issuing certificate and click Edit
2. Scroll down to the Certificate Status Validation section
3. In the Certificate Revocation List Configuration section, select the Download CRL checkbox
4. In the CRL Distribution URL field, paste the CRL distribution point URL saved in the early steps
5. Configure any additional settings as per your requirements and click Save



Example

 

ISE Policy Configuration

The use case for validating the Cloud PKI solution is similar to the one defined in the following document:

Configure ISE 3.2 EAP-TLS with Microsoft Azure Active Directory

The relevant ISE policy elements configured for this use case include the following:

• Certificate Authentication Profile
• Authentication Policy
• Authorization Policies

Certificate Authentication Profile

A Certificate Authentication Profile (CAP) is created to define the certificate attribute that ISE will use for identity. In this example, the Subject – Common Name will be used for identity.

As no Authentication can be performed against Entra ID, the Identity Store is set to [not applicable]

Example

Authentication Policy

An Authentication Policy is defined with the following conditions:

• Certificate issuer matching the CN of the Cloud PKI Issuing CA
• Certificate subject OU matching either the ‘TUI Entra Joined Device’ or ‘EntraID Users’ values defined in the Intune SCEP certificate profiles for the Device and User, respectively
• Authentication using the CAP defined above



Example

Authorization Policy

Two Authorization Policies are configured for this example use case; one for the User session, and one for the Device session.

The Authorization Policy is defined for the User session with the following conditions:

• Certificate issuer matching the CN of the Cloud PKI Issuing CA
• Certificate subject OU matching the ‘EntraID Users’ value defined in the Intune SCEP certificate profile for the User
• A REST ID lookup against the Microsoft Graph API for User membership in the Cloud PKI Users Entra ID Group

The Authorization Policy is defined for the Device session with the following conditions:

• Certificate issuer matching the CN of the Cloud PKI Issuing CA
• Certificate subject OU matching the ‘TUI Entra Joined Device’ value defined in the Intune SCEP certificate profiles for the Device

  Example

ISE Live Logs

The following screenshot shows the ISE Live Logs for the Device and User sessions from the Intune-enrolled test Windows VM.

Example

The detailed logs show the certificate Subject and Issuer attributes that were configured for the Certificate Profiles in Intune.

Example

Client Certificate Attributes

On the Windows client, use the MMC Certificate snap-ins to view the details of the certificate chain as well as the Device (Computer) and User certificates. Viewing the Computer certificate store requires local administrator permissions.

Device (Computer) Certificate examples

Example - Computer Root CA Certificates

Example - Computer Intermediate CA Certificates

Example - Computer Identity Certificate

Example - Computer Identity Certificate Issuer

Example - Computer Identity Certificate Subject



Example - Computer Identity Certificate Subject

Example - Computer Identity Certificate Path

Example - User Identity Certificate

Example - User Identity Certificate Issuer

 Example - User Identity Certificate Path

Client Supplicant Attributes

The following screenshots show the example Windows supplicant configuration applied by the Wifi Profile settings defined in Intune. To view these supplicant settings, you may need local administrator privileges and you must be connected to the SSID.

• Open the Control Panel and navigate to Network and Internet > Network Sharing Center
• Click on the Wifi connection

Example

• Click on the Wifi Properties button


  Example

• Click on the Security tab
• Click the Settings button



Example - Properties

• Click the Advanced button to see the certificate selection settings

Example - Certificate Selection Settings

[Villager]

Thanks, It's more helpful, keep going work!

[karam.nashwan]

I've been testing the exact same solution with minor change, I'm using radiusaas.com instead of Cisco ISE.
the WIFI authentication was Ok, however I'm still not able to authenticate wired clients via same method (certificates).

[Stephen.Mize]

Has anyone implemented this?  What is your experience?  Looking to do this in our environment,.
