VRF Aware IPSEC (IKEv1) VPN
Introduction
Lab Topology
Basic Configuration
IPSEC VPN Configuration
Introduction
Virtual Routing and Forwarding (VRF) is a technology for creating separate virtual routers on a single physical router. Router interfaces, routing tables, and forwarding tables are isolated on a VRF by VRF basis and therefore prevent traffic from one VRF interfering with another VRF. Which means VRF allow us to create multiple virtual networks on top single physical network.
As you know, service providers give services to different networks. And these different networks use overlapping IP addressing inside their network. So, how a service provider manage this without a conflict? Service Providers uses VRF for multiple routing instances. By doing this, they connect customer locations without any conflict. From the point of customer view, their locations are connected to the ports of a router.
IPSec (Internet Protocols Security) protocol is used to encrypt the traffic that is passing through these vrf interfaces.

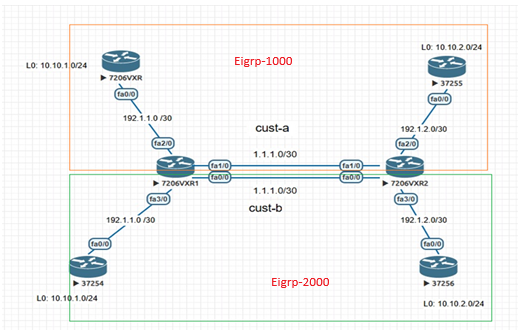

Lab Topology
R1(config-vrf)# address-family ipv4
R1(config-vrf-af)# exit-address-family
R1(config-vrf)#vrf definition cust-b
R1(config-vrf)# address-family ipv4
R1(config-vrf-af)# exit-address-family
R1(config-vrf)#exit
Step-2: configure the interfaces in the proper VRFs
R1(config)#interface fastEthernet0/0
R1(config-if)# vrf forwarding cust-b
R1(config-if)# ip address 1.1.1.1 255.255.255.252
R1(config-if)# no shutdown
R1(config)#interface fastEthernet1/0
R1(config-if)# vrf forwarding cust-a
R1(config-if)# ip address 1.1.1.1 255.255.255.252
R1(config-if)# no shutdown
R1(config)#interface fastEthernet2/0
R1(config-if)# vrf forwarding cust-a
R1(config-if)# ip address 192.1.1.1 255.255.255.252
R1(config-if)# no shutdown
R1(config)#interface fastEthernet3/0
R1(config-if)# vrf forwarding cust-b
R1(config-if)# ip address 192.1.1.1 255.255.255.252
R1(config-if)# no shutdown
Step-3: Configure Routing Protocols (Eigrp)
R1(config)#router eigrp 100
R1(config-router)# address-family ipv4 vrf cust-a autonomous-system 1000
R1(config-router-af)# network 1.1.1.0 0.0.0.3
R1(config-router-af)# network 192.1.1.0 0.0.0.3
R1(config-router-af)# exit-address-family
R1(config-router)# address-family ipv4 vrf cust-b autonomous-system 2000
R1(config-router-af)# network 1.1.1.0 0.0.0.3
R1(config-router-af)# network 192.1.1.0 0.0.0.3
R1(config-router-af)# exit-address-family
R1(config-router)# exit
R2 Basic configuration
Setp-1: Define VRF’s needed
R2(config)#vrf definition cust-a
R2(config-vrf)# address-family ipv4
R2(config-vrf-af)# exit-address-family
R2(config-vrf)#vrf definition cust-b
R2(config-vrf)# address-family ipv4
R2(config-vrf-af)# exit-address-family
Step-2: configure the interfaces in the proper VRFs
R2(config)#interface fastEthernet0/0
R2(config-if)# vrf forwarding cust-b
R2(config-if)# ip address 1.1.1.2 255.255.255.252
R2(config-if)# no shutdown
R2(config-if)#interface fastEthernet1/0
R2(config-if)# vrf forwarding cust-a
R2(config-if)# ip address 1.1.1.2 255.255.255.252
R2(config-if)# no shutdown
R2(config-if)#interface fastEthernet2/0
R2(config-if)# vrf forwarding cust-a
R2(config-if)# ip address 192.1.2.1 255.255.255.252
R2(config-if)# no shutdown
R2(config-if)#interface fastEthernet3/0
R2(config-if)# vrf forwarding cust-b
R2(config-if)# ip address 192.1.2.1 255.255.255.252
R2(config-if)# no shutdown
Step-3: Configure Routing Protocols (Eigrp)
R2(config)#router eigrp 100
R2(config-router)# address-family ipv4 vrf cust-a autonomous-system 1000
R2(config-router-af)# network 1.1.1.0 0.0.0.3
R2(config-router-af)# network 192.1.2.0 0.0.0.3
R2(config-router-af)# exit-address-family
R2(config-router)# address-family ipv4 vrf cust-b autonomous-system 2000
R2(config-router-af)# network 1.1.1.0 0.0.0.3
R2(config-router-af)# network 192.1.2.0 0.0.0.3
R2(config-router-af)# exit-address-family
The routers R3,R4,R5 and R6 should be configured with normal interface and routing protocol (eigrp).
IPSEC (IKEv1) Configuration
R1 Configuration
Step-1: Configure ISAKMP policy
R1(config)#crypto isakmp policy 5
R1(config-isakmp)# encr aes
R1(config-isakmp)# authentication pre-share
R1(config-isakmp)# group 19
R1(config-isakmp)# lifetime 28800
R1(config-isakmp)#exit
Step-2: Create Keyrings since we have to tie the PSK to a vrf, we need keyrings
R1(config)#crypto keyring KR-cust-a vrf cust-a
R1(conf-keyring)# pre-shared-key address 0.0.0.0 0.0.0.0 key cisco@123
R1(conf-keyring)#crypto keyring KR-cust-b vrf cust-b
R1(conf-keyring)# pre-shared-key address 0.0.0.0 0.0.0.0 key cisco@123
Step-3: Configure ISAKMP profiles
R1(config)#crypto isakmp profile cust-a-isakmp-profile
R1(conf-isa-prof)# vrf cust-a
R1(conf-isa-prof)# keyring KR-cust-a
R1(conf-isa-prof)# match identity address 0.0.0.0 cust-a
R1(conf-isa-prof)#crypto isakmp profile custb-isakmp-profile
R1(conf-isa-prof)# vrf cust-b
R1(conf-isa-prof)# keyring KR-cust-b
R1(conf-isa-prof)# match identity address 0.0.0.0 cust-b
Step-4: Create Transform Set
R1(config)#crypto ipsec transform-set TFS esp-aes esp-sha-hmac
R1(cfg-crypto-trans)# mode tunnel
Step-5: Configure Access Control List
R1(config)#ip access-list extended 100
R1(config-ext-nacl)#permit ip 10.10.1.0 0.0.0.255 10.10.2.0 0.0.0.255
Step-6: Create Crypto Map we need one per vrf
R1(config)#crypto map cust-a-CMap isakmp-profile cust-a-isakmp-profile
R1(config)#crypto map cust-a-CMap 10 ipsec-isakmp
R1(config-crypto-map)# set peer 1.1.1.2
R1(config-crypto-map)# set transform-set TFS
R1(config-crypto-map)# match address 100
R1(config-crypto-map)# exit
R1(config)#crypto map cust-b-CMap isakmp-profile custb-isakmp-profile
R1(config)#crypto map cust-b-CMap 10 ipsec-isakmp
R1(config-crypto-map)# set peer 1.1.1.2
R1(config-crypto-map)# set transform-set TFS
R1(config-crypto-map)# match address 100
R1(config-crypto-map)# exit
Step-7: Apply the cryptomap’s to the relevant interfaces
R1(config)#interface fastEthernet1/0
R1(config-if)# crypto map cust-a-CMap
R1(config)#interface fastEthernet0/0
R1(config-if)# crypto map cust-b-CMap
R2 Configuration
Step-1: Configure ISAKMP policy
R2(config)#crypto isakmp policy 5
R2(config-isakmp)# encr aes
R2(config-isakmp)# authentication pre-share
R2(config-isakmp)# group 19
R2(config-isakmp)# lifetime 28800
R2(config-isakmp)#exit
Step-2: Create Keyrings since we have to tie the PSK to a vrf, we need keyrings
R2(config)#crypto keyring KR-cust-a vrf cust-a
R2(conf-keyring)# pre-shared-key address 0.0.0.0 0.0.0.0 key cisco@123
R2(conf-keyring)#crypto keyring KR-cust-b vrf cust-b
R2(conf-keyring)# pre-shared-key address 0.0.0.0 0.0.0.0 key cisco@123
Step-3: Configure ISAKMP profiles
R2(config)#crypto isakmp profile cust-a-isakmp-profile
R2(conf-isa-prof)# vrf cust-a
R2(conf-isa-prof)# keyring KR-cust-a
R2(conf-isa-prof)# match identity address 0.0.0.0 cust-a
R2(conf-isa-prof)#crypto isakmp profile cust-b-isakmp-profile
R2(conf-isa-prof)# vrf cust-b
R2(conf-isa-prof)# keyring KR-cust-b
R2(conf-isa-prof)# match identity address 0.0.0.0 cust-b
R2(conf-isa-prof)#exit
Step-4: Create Transform Set
R1(config)#crypto ipsec transform-set TFS esp-aes esp-sha-hmac
R1(cfg-crypto-trans)# mode tunnel
Step-5: Configure Access Control List
R1(config)#ip access-list extended 100
R1(config-ext-nacl)#permit ip 10.10.2.0 0.0.0.255 10.10.1.0 0.0.0.255
Step-6: Create Crypto Map we need one per vrf
R2(config)#crypto map cust-a-CMap isakmp-profile cust-a-isakmp-profile
R2(config)#crypto map cust-a-CMap 10 ipsec-isakmp
R2(config-crypto-map)# set peer 1.1.1.1
R2(config-crypto-map)# set transform-set TFS
R2(config-crypto-map)# match address 100
R2(config-crypto-map)# exit
R2(config)#crypto map cust-b-CMap isakmp-profile custb-isakmp-profile
% Profile custb-isakmp-profile not found in configuration
R2(config)#crypto map cust-b-CMap 10 ipsec-isakmp
R2(config-crypto-map)# set peer 1.1.1.1
R2(config-crypto-map)# set transform-set TFS
R2(config-crypto-map)# match address 100
R2(config-crypto-map)# exit
Step-7: Apply the cryptomap’s to the relevant interfaces
R2(config)#interface fastEthernet1/0
R2(config-if)# crypto map cust-a-CMap
R2(config)#interface fastEthernet0/0
R2(config-if)# crypto map cust-b-CMap
Verification:
............................................................Thank you very much..! ................................................................................................
