Introduction: This document describes the process of configuring L2TP over IPSEC between Cisco IOS router and Android.
Prerequesites:
1. ASA with 7.x and Above
2. Android Mobile Handset

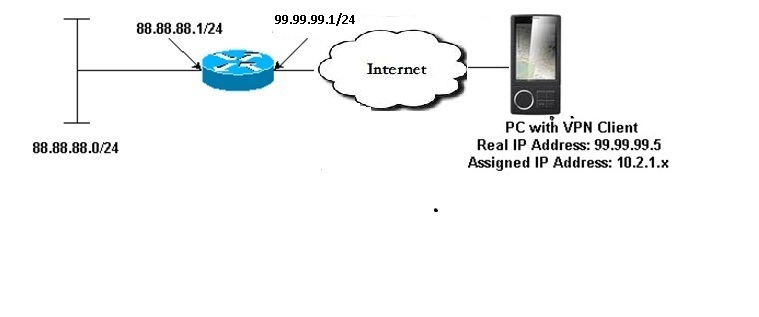

Diagram:
Configuration:
Well no lets go ahead and look into actual Configuration. Please refer the following detailed Configuration.
vpdn enable
!
vpdn-group l2tpvpn
! Default L2TP VPDN group
accept-dialin
protocol l2tp
virtual-template 1
no l2tp tunnel authentication
!
username user privilege 15 password secret
!
crypto keyring l2tpvpn
pre-shared-key address 0.0.0.0 0.0.0.0 key test
!
crypto isakmp policy 1
encr 3des
authentication pre-share
group 2
lifetime 3600
crypto isakmp key test address 0.0.0.0 0.0.0.0
crypto isakmp keepalive 10 periodic
!
!
crypto ipsec transform-set L2TP-TS esp-3des esp-sha-hmac
mode transport
!
crypto dynamic-map dynvpn 1
set nat demux
set transform-set L2TP-TS
crypto map CRYPTOMAP 20 ipsec-isakmp dynamic dynvpn
interface Virtual-Template1
ip unnumbered Ethernet0
peer default ip address pool VPN
keepalive 5
ppp authentication ms-chap-v2
interface BVI1
ip address 99.99.99.1 255.255.255.0
ip nat outside
ip virtual-reassembly
ipv6 address autoconfig default
ipv6 enable
crypto map CRYPTOMAP
!
ip local pool VPN 10.2.1.1 10.2.1.10
!---------------------------------------------------
Hope you like this information, Please leave your inputs, comments and feedbacks.
Related Information:
https://supportforums.cisco.com/thread/2030266
