Task Name
|
Workflow Rules
|
Description
|
Workflow input rules example
|
Prerequisites
|
Validated on UCSD 6.6
|
Category
|
Workflow Task
|
Components
|
|
User Inputs
|
- Number of disks
|
Output
|
Result of operation
|
Installation
- Download the attached .ZIP file below to your computer. *Remember the location of the saved file on your computer.
- Unzip the file on your computer. Should end up with a .WFDX file.
- Log in to UCS Director as a user that has "system-admin" privileges.
- Navigate to "Policies-->Orchestration" and click on "Import".
- Click "Browse" and navigate to the location on your computer where the .WFD file resides. Choose the .WFD file and click "Open".
- Click "Upload" and then "OK" once the file upload is completed. Then click "Next".
- Click the "Select" button next to "Import Workflows". Click the "Check All" button to check all checkboxes and then the "Select" button.
- Click "Submit".
- A new folder should appear in "Policies-->Orchestration" that contains the imported workflow. You will now need to update the included tasks with information about the specific environment.
The workflow:
![Screen Shot 2018-07-25 at 11.35.57 AM.png Screen Shot 2018-07-25 at 11.35.57 AM.png](https://community.cisco.com/t5/image/serverpage/image-id/15319i66F90AF20E6807EB/image-size/large?v=v2&px=999)
Workflow input:
![Screen Shot 2018-07-25 at 10.56.42 AM.png Screen Shot 2018-07-25 at 10.56.42 AM.png](https://community.cisco.com/t5/image/serverpage/image-id/15306iFBE3E92CF27597A9/image-size/large?v=v2&px=999)
![Screen Shot 2018-07-25 at 10.56.35 AM.png Screen Shot 2018-07-25 at 10.56.35 AM.png](https://community.cisco.com/t5/image/serverpage/image-id/15307iF6576BBFB56BC9FA/image-size/large?v=v2&px=999)
![Screen Shot 2018-07-25 at 10.56.27 AM.png Screen Shot 2018-07-25 at 10.56.27 AM.png](https://community.cisco.com/t5/image/serverpage/image-id/15305iB15BA522F213E6BD/image-size/large?v=v2&px=999)
Workflow run with one disk:
![Screen Shot 2018-07-25 at 11.01.11 AM.png Screen Shot 2018-07-25 at 11.01.11 AM.png](https://community.cisco.com/t5/image/serverpage/image-id/15308i50DD84910BD3A2DE/image-size/large?v=v2&px=999)
Workflow run with 2 disks:
![Screen Shot 2018-07-25 at 11.03.51 AM.png Screen Shot 2018-07-25 at 11.03.51 AM.png](https://community.cisco.com/t5/image/serverpage/image-id/15310i6F17AC7900739705/image-size/large?v=v2&px=999)

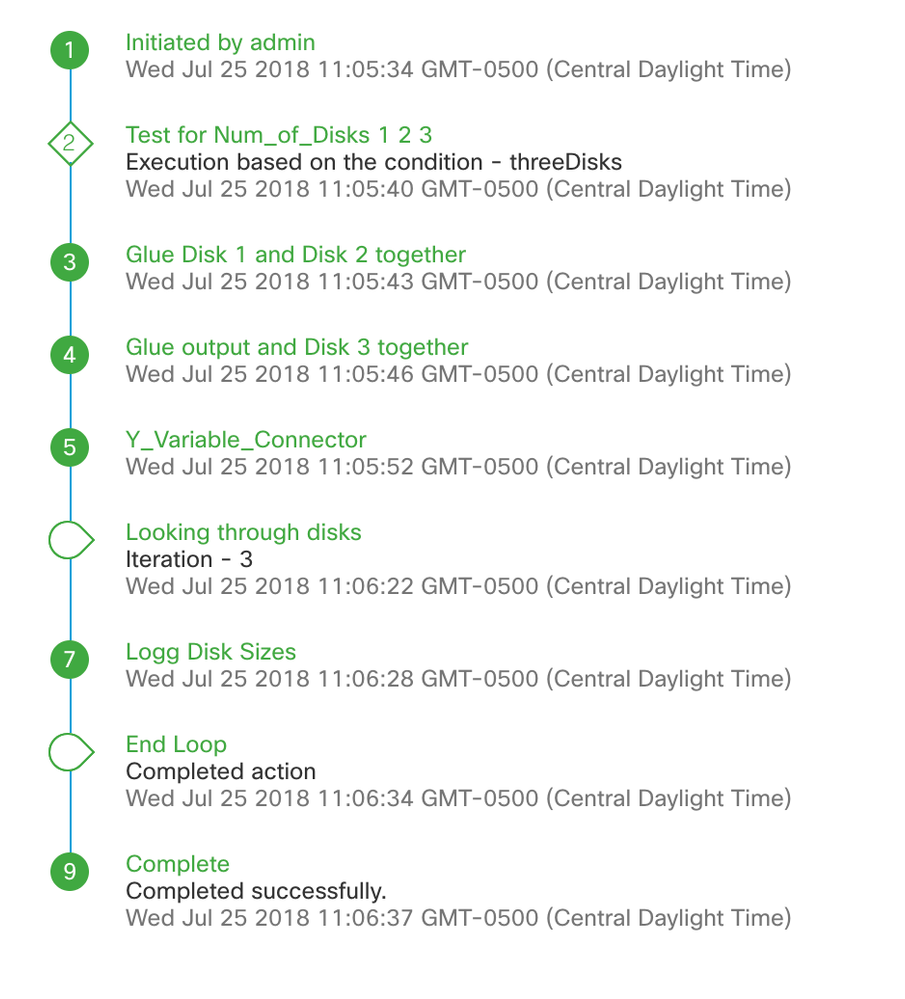

Workflow run with 3 disks:
![Screen Shot 2018-07-25 at 11.06.42 AM.png Screen Shot 2018-07-25 at 11.06.42 AM.png](https://community.cisco.com/t5/image/serverpage/image-id/15312i281C0AB27D7BFA3A/image-size/large?v=v2&px=999)
![Screen Shot 2018-07-25 at 11.06.55 AM.png Screen Shot 2018-07-25 at 11.06.55 AM.png](https://community.cisco.com/t5/image/serverpage/image-id/15313iB75A0EE2B3034495/image-size/large?v=v2&px=999)
