ACI - an alias comand

jchimenop · ‎04-28-2020

Hello all

As an example, I use a lot of times the command:

apic#show run leaf 109 interface ethernet 1/23;show run leaf 110 interface ethernet 1/23;

I want to create an alias, an script or some in my ssh profile that it could helps to get the output but with a few words

As an example

apic#show iconf 109 110 23

I tried with a bash without exit, because it didn't find the commands.

#!/bin/bash

show running-configuration leaf $1 interface ethernet 1/$3;show run leaf $2 interface ethernet 1/$3;

Thx

omz · ‎04-28-2020

Hi

Are you using shell to ssh to the apic?

You could something like this -

copy and paste in shell

intconf () {
ssh root@$1  << EOF
 show run leaf 109 interface ethernet 1/23
 show run leaf 110 interface ethernet 1/23
EOF
}

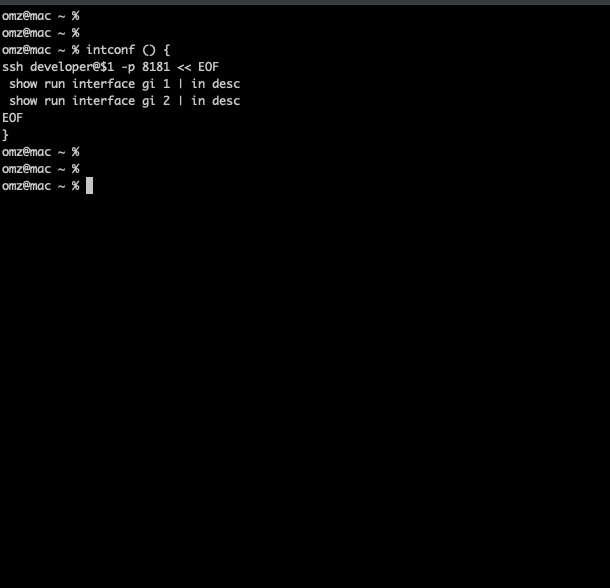

I don't have ssh access to an apic. Example on IOS-XE works like this -

you can add the function in .bashrc and it will available everytime you open terminal

hope this helps

jchimenop · ‎04-28-2020

Thank you for your post. It's amazing that what do you do.

Sergiu.Daniluk · ‎04-28-2020

Hi @jchimenop

Uff.. I must admit, this was an interesting question.

So this is the script:

apic1# cat showif.sh
#!/bin/sh
/controller/decoy/decoy-env/bin/python2.7 -m pyclient.remote exec terminal  114  show run leaf $1 interface eth 1/$3
/controller/decoy/decoy-env/bin/python2.7 -m pyclient.remote exec terminal  114  show run leaf $2 interface ethernet 1/$3

Now, how did I came with this values script you may ask? oh boy, it was interesting.

First, let's see how the "show" commands are working on APIC:

apic1# alias | grep show
sh='_exec_cmd_pager "show" "$@"'
show='_exec_cmd_pager "show" "$@"'

Ok, so it seems there is a script reference named _exec_cmd_pager.

apic1# which _exec_cmd_pager
_exec_cmd_pager () {
        if [ "${_NO_PAGER}" = "yes" ]
        then
                _exec_cmd "$@" 2> /dev/null
        elif [ "${_TRACE}" = "yes" ]
        then
                _exec_cmd "$@"
        elif [ "${_PAGER_LEN}" = "0" ]
        then
                _exec_cmd "$@" 2> /dev/null | /bin/more
        else
                _exec_cmd "$@" 2> /dev/null | /bin/more -"${_PAGER_LEN}"
        fi
        return $?
}
apic1# which _exec_cmd
_exec_cmd () {
        if [ "$_TEST_DELIM" != "" ]
        then
                printf "$_TEST_DELIM"
                _exec_py "$@"
                local _retCode=$?
                printf "$_TEST_DELIM"
                return _retCode
        fi
        _exec_py "$@"
        return $?
}
apic1# which _exec_py
_exec_py () {
        if [ "$1" = "--local" ]
        then
                shift 1
                ${PYTHON} -m pyclient.remote exec terminal ${COLUMNS} "$@"
        else
                ${PYTHON} -m pyclient.remote exec server ${COLUMNS} "$@"
        fi
}

So we found the actual cmd which runs the "show" commands, or actually any other apic commands.

Now if you want to use the line as it is in a bash script, it will still not work (I did not had time to check why), but if you change the PYTHON and COLUMNS with the real value, it works:

apic1# echo $PYTHON
/controller/decoy/decoy-env/bin/python2.7
apic1# echo $COLUMNS
114

Aaaaaand here is the result:

apic1# ./showif.sh 101 111 24
# Command: show running-config leaf 101 interface eth 1/24
# Time: Tue Apr 28 22:14:14 2020
  leaf 101
    interface ethernet 1/24
      # policy-group ansible_if_pg
      switchport access vlan 3802 tenant AutoLab application APP1 epg EPG2
      exit
    exit
# Command: show running-config leaf 111 interface ethernet 1/24
# Time: Tue Apr 28 22:14:23 2020
  leaf 111
    interface ethernet 1/24
      # policy-group ansible_if_pg
      switchport access vlan 3803 tenant AutoLab application APP1 epg EPG3
      exit
    exit

Note: Is important to verify what environment is being used for python since you will require specific modules (like requests). Also, later version of APIC version, python will change to version 3 so double check which env is being used.

Hope it helps,

Sergiu

jchimenop · ‎04-29-2020

Thank you.
It works. I'm already using that script in my environment

Sergiu.Daniluk · ‎04-29-2020

Happy to hear it helps you ^_^

Stay safe,

Sergiu

O.K. · ‎01-13-2021

Hi @Sergiu.Daniluk,

First of all, thank you for this great explanation. I know this post is a bit old, but I couldn't find anything on google relevant to my problem, so I decided to ask here.

I'm trying to basically the same thing, only not directly on the console of APIC instead, running this command via Ansible from a remote host.

If I try, for example, a basic command like"ls" and"pwd" or even a Moquery like this:

moquery -c ethpmPhysIf -f 'ethpm.PhysIf.operSt=="down" and ethpm.PhysIf.usage!="blacklist"' | egrep "dn" | grep node-1220

everything works as expected.

But when I try the run fabric command which looks like this:

/controller/decoy/decoy-env/bin/python -m pyclient.remote exec server $COLUMNS fabric 111 show vpc brief

I get a "non-zero return code" Which I can't understand. The response from APIC look like this:

msg": [
        {
            "ansible_facts": {
                "discovered_interpreter_python": "/usr/bin/python"
            },
            "changed": true,
            "cmd": "/controller/decoy/decoy-env/bin/python -m pyclient.remote exec server $COLUMNS fabric 111 show vpc brief",
            "delta": "0:00:00.397055",
            "end": "2021-01-13 13:24:29.621140",
            "failed": true,
            "msg": "non-zero return code",
            "rc": 1,
            "start": "2021-01-13 13:24:29.224085"
            "stderr_lines": [
                "Traceback (most recent call last):",
                "  File \"/usr/lib64/python2.7/runpy.py\", line 174, in _run_module_as_main",
                "    \"__main__\", fname, loader, pkg_name)",
                "  File \"/usr/lib64/python2.7/runpy.py\", line 72, in _run_code",
                "    exec code in run_globals",
                "  File \"/controller/yaci/pyclient/remote.py\", line 210, in <module>",
                "    writeRetCode(e.errno)",
                "  File \"/controller/yaci/pyclient/_state.py\", line 37, in writeRetCode",
                "    with open(retFile, 'w') as f:",
                "IOError: [Errno 2] No such file or directory: '/home/svc_switch/.6168/RETCODE'"
            ],
            "stdout": "",
            "stdout_lines": []
        },

If you have an idea and can point me in the solution's direction, I will be glad. Thank you!

Sergiu.Daniluk · ‎01-13-2021

Hi @O.K.

Have you tried changing the $COLUMNS with the real value?

Check it using this command:

apic1# echo $COLUMNS

Regards,

Sergiu

O.K. · ‎01-14-2021

Hi, thank you for your reply. I've already tried this; as you mentioned in your previous message, both of them on the console (real value or $COLUMNS) are work properly. Columns value is different for every session, and I tried to set it dynamically in Ansible, which looks as follows:

tasks:
    - name: Get the $COLUMNS value
      shell: echo $COLUMNS
      args:
        executable: /bin/zsh
      register: stdout

    - name: save the columns value in a variable
      set_fact:
        columns: "{{ stdout.stdout }}"

    - name: Run command
      shell:  /controller/decoy/decoy-env/bin/python2.7 -m pyclient.remote exec server "{{columns}}" fabric 111 show vpc brief
      args:
        executable: /bin/zsh
      ignore_errors: true
      register: query_result

but without luck.

Regards,

Oguz

Sergiu.Daniluk · ‎01-14-2021

I think is a problem with the shell module. It doesn't work with command or exec either. I do not know any module which sends CLI commands to APIC, but i guess this is a good opportunity to write your own and then publish it

Cheers,

Sergiu
