router icons greyed out and some links not visible

mulholland
Level 1
Level 1

folks

in my workbench the router icons are very faint and almost greyed out unless i click on them, also i can't see the links unless i click on the router they are connected to - any idea why this is happening?

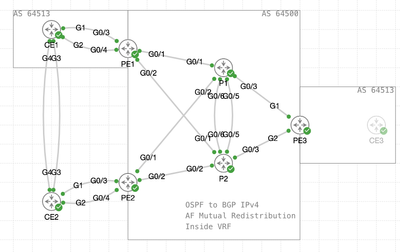

i've included a screenshot to illustrate

thanks







thanks

1 Accepted Solution

Accepted Solutions

In later versions of CML, an option was added to hide and show links. If you right click a dimmed node do you see "Show Links"? If so, left click that option. That should also un-dim the node.

Disclaimers: I am long in CSCO. Bad answers are my own fault as they are not AI generated.

View solution in original post

1 Reply 1

In later versions of CML, an option was added to hide and show links. If you right click a dimmed node do you see "Show Links"? If so, left click that option. That should also un-dim the node.
