Cisco ISE and sending an SNMP Trap test

[GlenGTR]

Hi all, I have to update the config on my Cisco ISE nodes to point their SNMP trap messages to PRTG. Is it possible to send a test SNMP trap to PRTG to confirm that it's working instead of actually triggering an event?

[Marcelo Morais]

Hi @GlenGTR ,

 please try the following ...

 At Context Visibility > Network Devices > select the NAD > click Port Config Status > Run on Selected.

Note: at Administration > Network Resources > Network Devices > select the NAD > SNMP Settings > you can change the Polling Interval to a shorter value (minimum 600 sec).

Hope this helps !!!

[GlenGTR]

Hi Marcelo and thanks for replying. I went into Context Visibility > Network Devices but I have no devices listed and it says "No data found".

But within Administration > Network Devices all my devices are listed.

[Marcelo Morais · Accepted solution]

@GlenGTR ,

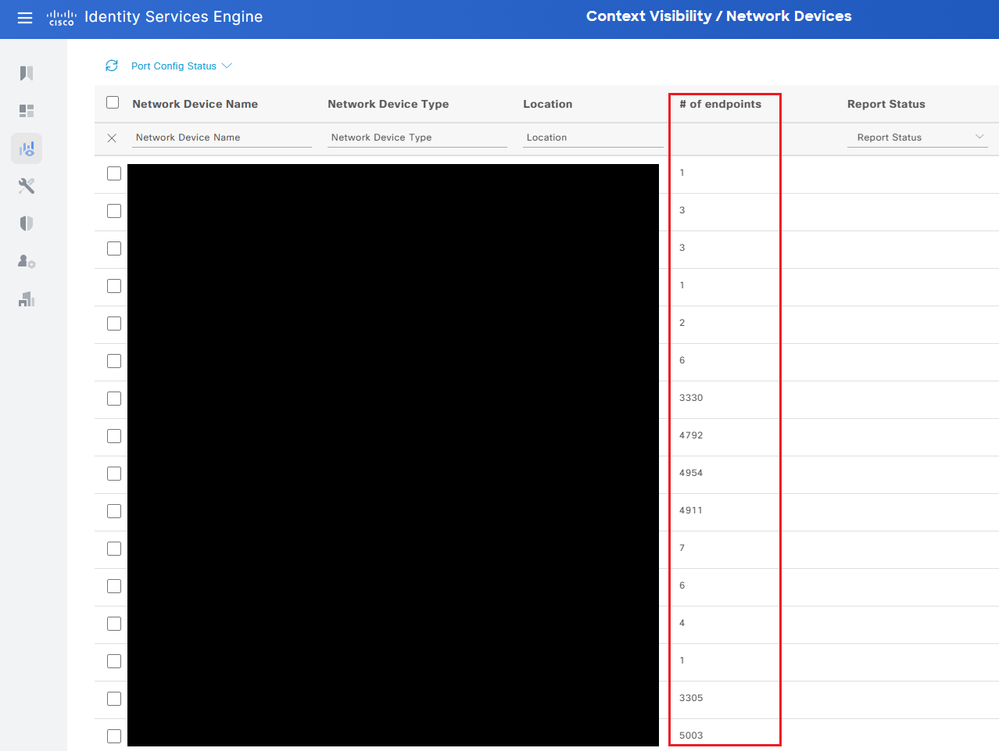

 the Context Visibility > Network Devices > contains a list of NADs that have the # of Endpoints equal to or greater than 1:

each of these Endpoints appears in Context Visibility > Endpoints, in other words, if you delete all Endpoints from an specific NAD in Context Visibility > Endpoints, then your NAD will be removed from the Context Visibility > Network Devices.

Knowing this ... you said: " ... No Data Found ... ", probably your Context Visibility > Endpoints is empty.

In this case, at Administration > Network Resources > Network Devices > select the NAD > SNMP Settings > try to change the Polling Interval to a shorter value (minimum 600 sec).

Hope this helps !!!
