configure Default Gateway on ASA stransparent

[_Ratha_]

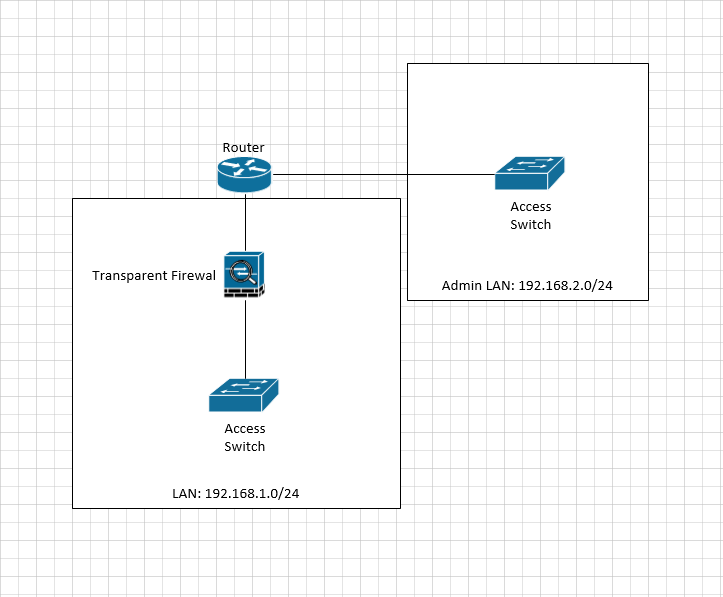

Base diagram I configure configure ASA as Transparent mode deploy in LAN 192.168.1.0/24, but administrator need to remote to manage from other LAN 192.168.2.0/24.

The problem is that Transparent don't support routing, How do I configure default gateway on ASA to allow administrator can remote to change and control on ASA.

Thank

Ratha

[Spooster IT Services]

Hi Ratha,

You can configure NAT on router to NAT the source IP from ADMIN LAN (192.168.2.0/24) to an interface IP of router when traffic is destined to ASA's management IP.

Can you let me know the Management IP of Firewall and post/attach the router's config so that i can assit you with sample config.?
