Using a Python IDE to develop services in NSO

Siliano
Level 1
Level 1

Hi all,

I'm new at NSO and I'm trying to set up PyCharm (Community Edition) to use Python API for develop services.
I'm a Junior Dev. and it would be useful to have an IDE that helps me in the development by suggesting the methods I can use; I recovered the Python APIs for NSO from a system installation in a Lab Environment. However, when I try to use the libraries, the IDE does not give me suggestions when I use "services."  .
I give a basic example on a service that processes only the name of the devices with Python logic, I'll omit the auto-generated code:



def cb_create(self, tctx, root, service, proplist):
self.log.info('Service create(service=', service._path, ')')



for device_obj in service.device_name:

vars = ncs.template.Variables()
vars.add('DEVICE', device_obj.device)
template = ncs.template.Template(service)
template.apply('stub-juniper-config-vrf-template', vars)



The logic works, I followed the guide at this link, example 89

Tips on how I can set up the IDE correctly? Thank you in advance

1 Accepted Solution

Accepted Solutions

Rodolphe Trujillo
Cisco Employee
Cisco Employee

Hi @Siliano ,
I don't know if it works in the Community Edition but here is how it can be done in the Pro version.

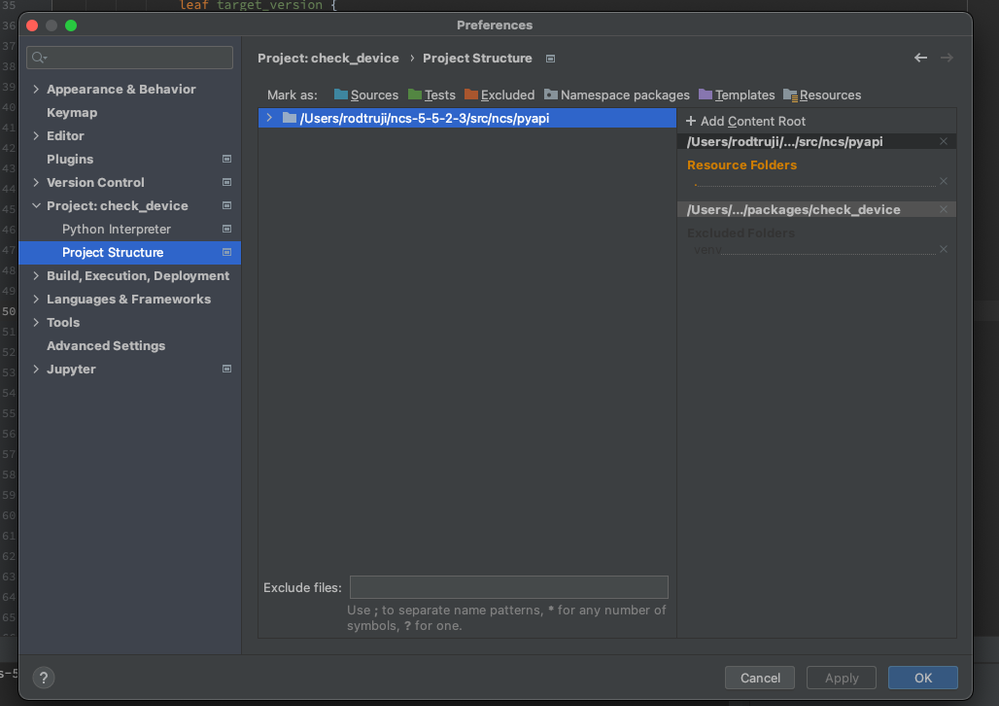

In your project go to "Preferences" => "Project [Something]" => "Project Structure", click on "Add Content Root".
Point to the path of a NSO local install on your computer , the api is in "src/ncs/pyapi" of the local installScreenshot 2022-02-09 at 15.18.09.png



Screenshot 2022-02-09 at 15.39.38.png

View solution in original post

2 Replies 2

@Siliano have you looked at installing Tabnine in your IDE?

Please mark this as helpful or solution accepted to help others
Connect with me https://bigevilbeard.github.io

Rodolphe Trujillo
Cisco Employee
Cisco Employee

Hi @Siliano ,
I don't know if it works in the Community Edition but here is how it can be done in the Pro version.
In your project go to "Preferences" => "Project [Something]" => "Project Structure", click on "Add Content Root".
Point to the path of a NSO local install on your computer , the api is in "src/ncs/pyapi" of the local installScreenshot 2022-02-09 at 15.18.09.png



Screenshot 2022-02-09 at 15.39.38.png
