IĀ“m new in this, and I want to connect the dvr with the router i have:
in the dvr
192.168.1.1 gataway
192.168.1.113 ip
8141 port
554 rtsp port
in the reuter
192.168.1.1 gataway
Port Range Forwarding Table
drvtcp [ TCP/8141~8141] 192.168.1.113 Enabled
drv554 [ TCP/554~554] 192.168.1.113 Enabled
services
drv554 TCP 554~554
drvtcp TCP 8141~8141
dvrudp8141 UDP 8141~8141
dvrudp554 UDP 554~554
(is the only way I find to do 8141 in tcp and udp)

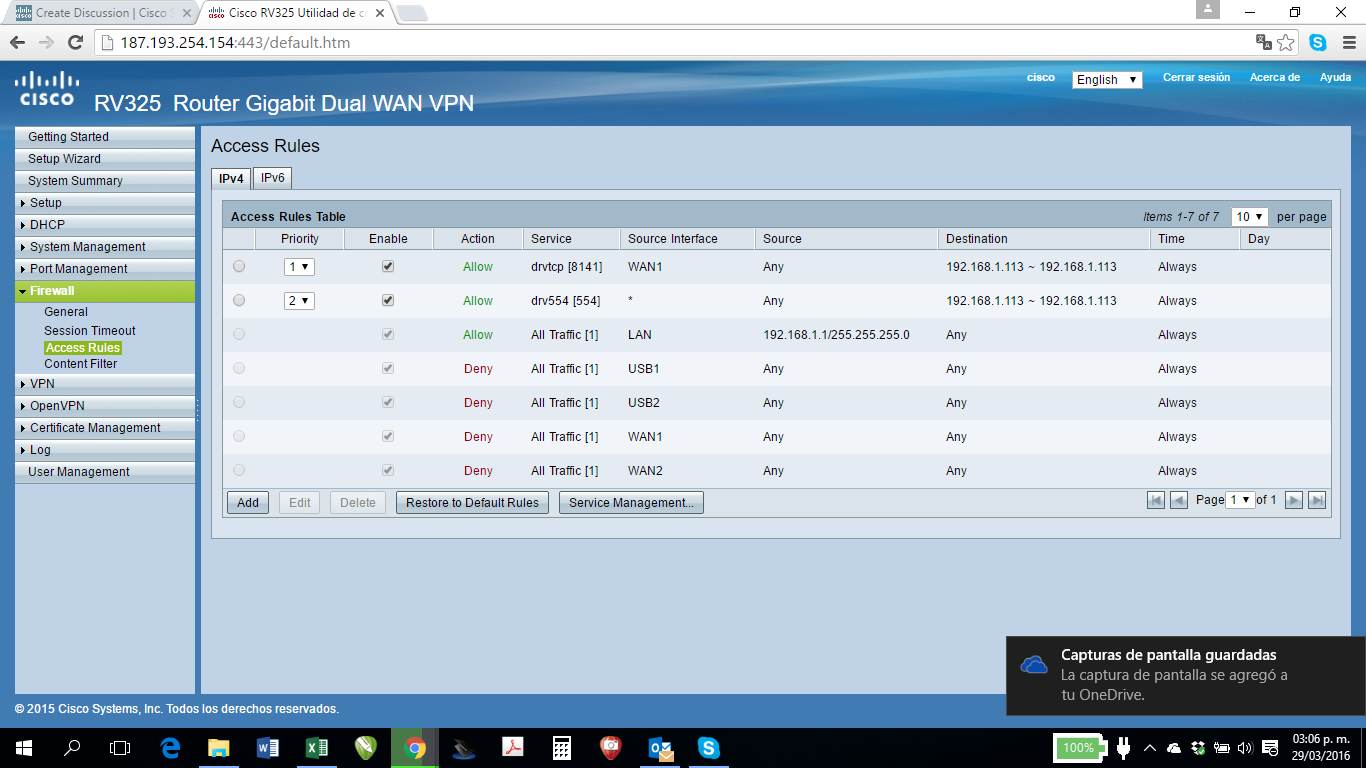

firewall Access Rules
Allow drvtcp [8141] WAN1 Any 192.168.1.113 ~ 192.168.1.113 Always
Allow drv554 [554] * Any 192.168.1.113 ~ 192.168.1.113 Always
some times I can go inside, but is only some times I read in some pages how to do this, but I think I mist something,
can you help mee please
