CISCO router 867VAE; can it do 2-way-NAT ?

[henrikpersson]

Hi,

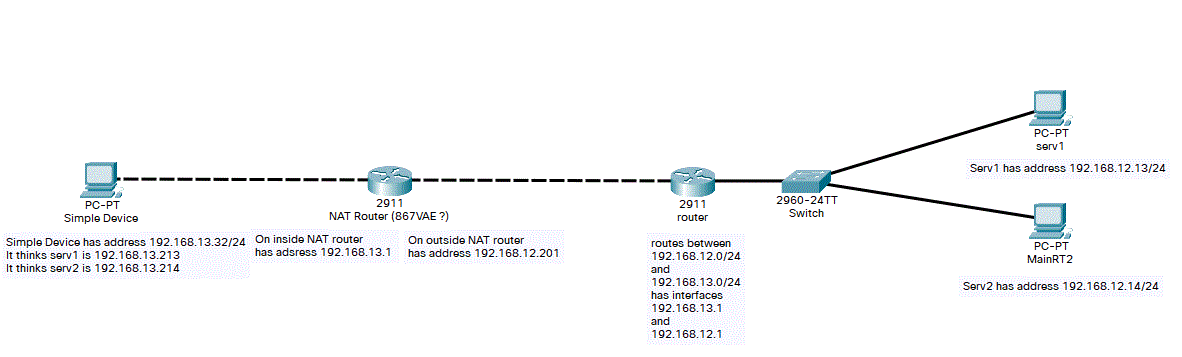

I am looking for a small router, to do some NAT separation between 2 networks.

The commands would be as following:

interface <inside-int>

ip address 192.168.13.1 255.255.255.0
ip nat inside

interface <outside-int>
ip address 192.168.12.201 255.255.255.0
ip nat outside
exit
ip nat inside source static 192.168.13.32 192.168.12.32
ip nat outside source static 192.168.12.13 192.168.13.213
ip nat outside source static 192.168.12.14 192.168.13.214

So as I know that

 2-way-NAT

is seldom used, I need some confirmation, that 867VAE (or some other small CISCO router) supports it. In packet tracer, several router types support the commands.

Best regards

Henrik

[Flavio Miranda]

Hi

 I dont recall to see explicty

support 2-way NAT

on the Datasheet. What I´ve seeing is:

●  Network Address Translation (NAT)

The router you mention, does support NAT.

https://www.cisco.com/c/en/us/products/collateral/routers/800-series-routers/data_sheet_c78-693249.html

[henrikpersson]

Hi Flavio,

thanks for the answer.

You are right about

2-way NAT

is not mentioned. But is that feature explicitly mentioned on other CISCO routers?
I know it is seldom used. So perhaps not a feature to advertise so much about.

PS: If somebody owns 867VAE, they could try from cli after conf t:

ip nat inside source static ?
ip nat outside source static ?

..just to see if router OS accepts those NAT commands both ways.

Best regards

Henrik

[Flavio Miranda · Accepted solution]

 Thats correct. As soon as the device support NAT, this command will be available. Would be a surprise to me if does not work, but I never did it on this specific router.

 Unfortunatelly I dont have one here to test.

However, this device 867VAE is already end of sale, so, if you buy it, will not be through cisco channel.  So, be care.

[MHM Cisco World]

can i see

show ip nat translation

[paul driver]

Hello

can you elaborate on what you are trying to achieve?
