common gateway of pc possibility directly connected to firewall

[Sharanjeet_Kumar]

Hello all,

A curious question. Reffered to the Image.......

is it possible that PC1 and PC2 have same gateway????

i am configuring IP on E1/2 and E1/3

if possible then how to configure it????

if possible with router only instead of firewall then configuration of the same?????

any help is appreciated!!!!!!!

[Georg Pauwen]

Hello,

you (could) have several options, but it all depends on the firewall or router you are using. What model/type devices do you have ?

[Sharanjeet_Kumar]

Hi @Georg Pauwen,

Thanks for responding!!!

lets take an example of FTD 2130....

i am connecting both PC on ethernet ports....

if it is not possible on  Firewall then do it on cisco router. i have one ISR4331

Any Other help is appreciated!!!!!

[MHM Cisco World]

for router Yes you can
condig interface in router with BDI and then assing IP to BVI, finally make the BVI is GW for both PC.
https://www.cisco.com/c/en/us/support/docs/lan-switching/integrated-routing-bridging-irb/200650-Understanding-Bridge-Virtual-Interface.html

for the ASA I think same BDI and BVI can apply and make both PC have same GW IP.

[Sharanjeet_Kumar]

Hi @MHM Cisco World,

I can do it on cisco router with BVI...

But, i am curious about are we currently using BVI???

if yes, then where we use and whats the significance of it???

i went through that link. that was helpful, but i want more information about it.

+++ is it possible with firewall?????

[MHM Cisco World]

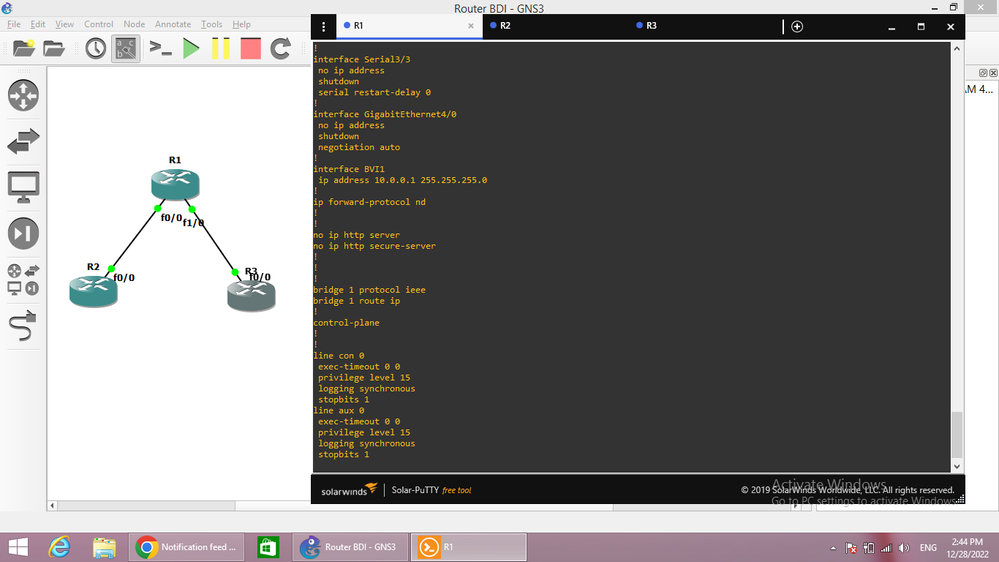

I run lab and config R2 and R3 as host and config BVI IP as GW IP in both router and it work.

for ASA I will lab and check, I am now far from my home.
thanks

[Sharanjeet_Kumar]

Hi @MHM Cisco World,

Thanks again for your precious time!!!!

I just did it and its works. no doubt in it.

But,

i am curious about are we currently using BVI???

if yes, then where we use and whats the significance of it???

i went through that link. that was helpful, but i want more information about it.

!!!!!!!

[MHM Cisco World]

in service provider the engineer use it to interconnect two customer  for L2 VPN.
the two customer connect to same SR router and hence the router need BDI/BVI to interconnect them.

[Sharanjeet_Kumar]

got it.

is this scenario possible with the firewall and two PC????

[MHM Cisco World]

I run lab, and I confirm that ASA FW can bridge two host and the two hosts have same GW which is BVI.
