Help with DHCP and static routes

Hello,

I am sorry, I am not familiar with a lot of the vocabulary for networking but I am going to give it my best.

I was given a task withing cisco packet tracer to set up a DHCP configuration, connect the routers with static routes and assign specific subnet masks. I had the most problems with dhcp and static routes. this is how the connected network looks like:





the steps I followed to get to this position:

setting up the dhcp:

in the router I typed in these commands:

Router>enable
Router#config terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#ip dhcp pool R1
Router(dhcp-config)#network 192.168.10.0 255.255.255.224
Router(dhcp-config)#default-router 192.168.10.1
Router(dhcp-config)#exit

192.168.20.0 255.255.255.224 for router 2

192.168.30.0 255.255.255.168 for router 3

and then I set each pc to use dhcp which gives each pc a pretty random ip

address

router 1: 10.0.0.1 , router 2 : 20.0.0.1 , router 3 : 30.0.0.1

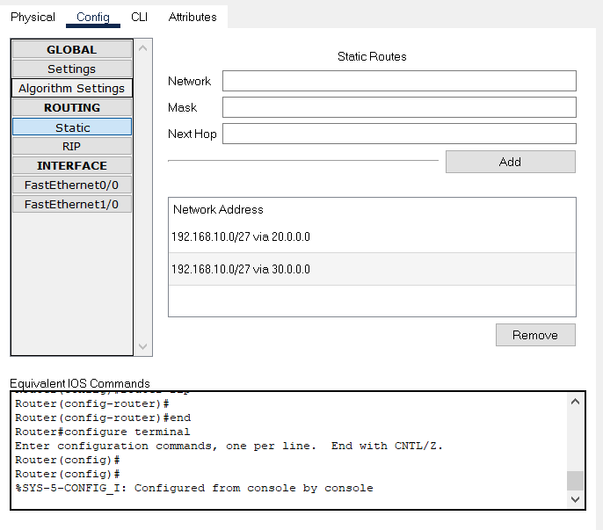

and then attempted to connected them using the static route menu: 


and made similar routes on each router. I though this would allow me to send messages in-between computers in different dhcp networks but it does not. I though I followed the tutorials and guides on youtube and such correctly but I guess I am still missing something. I am thinking it might be something to do with the switch in the middle but i am not sure. any help would be greatly appreciated!



1 Reply 1

Georg Pauwen
VIP Master VIP Master
VIP Master

Hello,



if possible, post the zipped Packet Tracer project (.pkt) file...
