Static routes aren't working

DeathTheHusky
Level 1
Level 1

Hello community !



I just passed my networking essential and i'm trying to resolve my previous practical works to mastering routing concept.

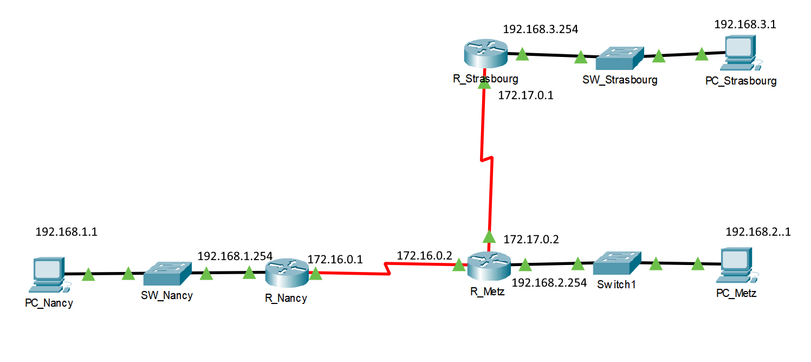

The plan is:


Nancy shouldn't communicate with strasbourg, so i am using an Static route

I configure for now 2 routes, Metz and Strasbourg before to test them and to configure more devices:



R_Metz

ip route 192.168.3.0 255.255.255.0 172.17.0.1

show ip route



C 172.16.0.0/16 is directly connected, Serial0/0/0

C 172.17.0.0/16 is directly connected, Serial0/0/1

C 192.168.2.0/24 is directly connected, FastEthernet0/0

S 192.168.3.0/24 [1/0] via 172.17.0.1







R_Strasbourg

ip route 192.168.2.0 255.255.255.0 172.17.0.2

Show ip route



C 172.17.0.0/16 is directly connected, Serial0/0/1

S 192.168.2.0/24 [1/0] via 172.17.0.2

C 192.168.3.0/24 is directly connected, FastEthernet0/0



I can't ping the 2 PC set up.

Why ? i can't explain. But it's a troubleshooting that my pratical work give without the solution.



Could you say to me what's next ?

Thank you !



1 Accepted Solution

Accepted Solutions

Hello,



most of the required static routes were missing. Your PCs did not have a default gateway configured. Find attached the revised file with end-to-end connectivity (this was saved in PT version 7.3).

View solution in original post

4 Replies 4

Hello,



post the zipped Packet Tracer project (.pkt) file.

The file

Hello,



most of the required static routes were missing. Your PCs did not have a default gateway configured. Find attached the revised file with end-to-end connectivity (this was saved in PT version 7.3).

Okay you right for the default gateway thank you, it was the problem !!



For the static routes it was normal i just tested strasbourg-metz and did not configured the other routes

PS: you made a route for Strasbourg to Nancy and as i said in my exercice they shouldn't communicate



Thank you again for the correction it helps me a lot.
