Hey guys,
I am trying to set up an 887 to use fe0 as a WAN port to connect to another router that was provided preconfigured by my ISP (and i have no access to change settings on it)
i am able to connect to the one20 router (from the ISP) and out to the internet using a laptop plugged to its fe0 and using ip: 202.134.232.146, sn:255.255.255.252, gateway: 202.134.232.145. so it is working fine.
My problem comes when trying to set up the 887 to route it all.

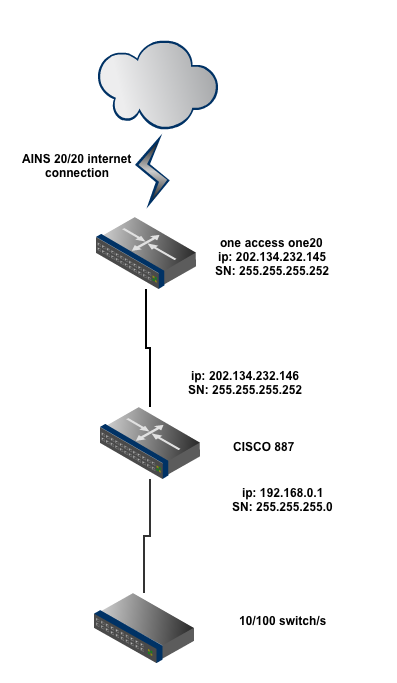

Here is a quick little network diagram of what i am trying to do...
http://i29.photobucket.com/albums/c287/xacoupe/EMC.png
here is where i have gotten to with the config. In this state i can ping 202.134.232.146, but not 145 (the one20) and not out to the internet.... WHAT AM I DOING WRONG?!?
Current configuration : 2284 bytes
!
version 12.4
no service pad
service timestamps debug datetime msec
service timestamps log datetime msec localtime
service password-encryption
!
hostname emcmelb
!
boot-start-marker
boot system flash:c870-advsecurityk9-mz.124-20.T2.bin
boot-end-marker
!
logging message-counter syslog
logging buffered 512000
enable secret
!
no aaa new-model
!
!
dot11 syslog
ip source-route
no ip dhcp use vrf connected
ip dhcp excluded-address 192.168.0.1
ip dhcp excluded-address 192.168.0.165 192.168.0.180
!
ip dhcp pool emcmelb-dhcp
network 192.168.0.0 255.255.255.0
domain-name essentialmedia.com.au
dns-server 202.126.100.178 202.126.100.157
default-router 192.168.0.1
lease infinite
!
!
ip cef
ip domain name essentialmedia.com.au
ip name-server 203.0.178.191
ip name-server 8.8.8.8
!
!
!
!
username drew password
username admin password
!
!
crypto isakmp policy 10
encr 3des
authentication pre-share
lifetime 86000
crypto isakmp key Loe8TrPhBi8RuBiorI address 203.217.21.142
crypto isakmp keepalive 300 30 periodic
!
!
crypto ipsec transform-set emc-trans-set esp-3des esp-sha-hmac
!
crypto ipsec profile policy1
set transform-set emc-trans-set
!
archive
log config
hidekeys
!
!
ip ssh time-out 30
!
!
!
interface ATM0
no ip address
logging event subif-link-status
load-interval 30
shutdown
no atm ilmi-keepalive
dsl operating-mode auto
dsl enable-training-log showtime
!
interface FastEthernet0
switchport access vlan 2
!
interface FastEthernet1
!
interface FastEthernet2
!
interface FastEthernet3
!
interface Vlan1
ip address 192.168.0.1 255.255.255.0
ip nat inside
ip virtual-reassembly
!
interface Vlan2
ip address 202.134.232.146 255.255.255.252
ip nat outside
ip virtual-reassembly
!
ip forward-protocol nd
ip route 0.0.0.0 0.0.0.0 202.134.232.145
no ip http server
no ip http secure-server
!
ip nat inside source list emcmelb-ip interface Vlan2 overload
!
ip access-list extended emcmelb-ip
permit ip 192.168.0.0 0.0.0.255 any
!
access-list 10 permit 192.168.0.0 0.0.0.255
!
!
!
!
control-plane
!
!
line con 0
no modem enable
line aux 0
line vty 0 4
password
login
transport input all
transport output all
!
scheduler max-task-time 5000
end
