I am getting the Change of Authorization (CoA) Failed. Am getting this on all the switches configured for ISE
ISE Version : 2.1.0.474
Switch Version ROM
C4506-E 03.06.03.E 15.0(1r)SG10
C6509-E 12.2(33)SXJ1 12.2(17r)SX5
Our endpoints is both 802.1x and non 802.1x. The endpoints with MAB are successful authenticated but the problem is that the COA is not working so that the ISE can identify the AD username.
We are using EasyConnect (PassiveID)
Please see below

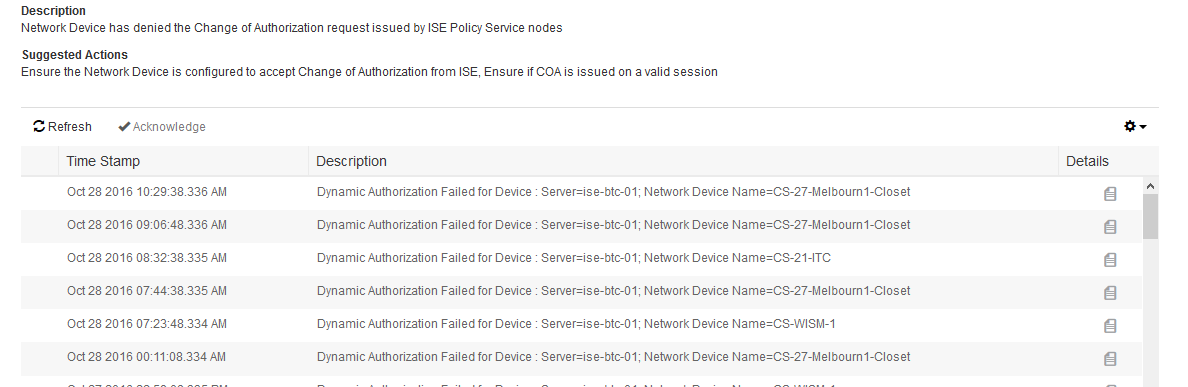

Dynamic Authorization Failed for Device
image - CoA Warning.png
I have go through the suggested actions.
CoA type on the ISE is set to Reauth
image- CoA type
ISE is connected to DC
image - ISE-connected-DC.png
image - ISE-join-DC
Configured CoA on both switches
aaa server radius dynamic-author
client XX.XX.XX.XX server-key passkey
client XX.XX.XX.XX server-key passkey
server-key passkey
Evaluation configuration Validator on the C6509 switch. As you can see below the “radius-server vsa send accounting and radius-server vsa send authentication “ is configured.
image- C6509
But on the C4506, this have the same configuration with the above switch but the Evaluate configuration Validator complain about this commands
image - C4506
aaa group server radius ISE-Group
server name ISE-1
server name ISE-2
radius server ISE-1
address ipv4 XX.XX.XX.XX auth-port 1812 acct-port 1813
key PASSKEY
!
radius server ISE-2
address ipv4 XX.XX.XX.XX auth-port 1812 acct-port 1813
key Passkey
!
Can you please help. I can send you the authorization and authentication policy set if that can help
Best Regards,
Tokunboh Lapite (Toks)
