Set temperature thresholds on C3850 ?

johnsmunoz · ‎05-26-2023

I'm currently have several WS-C3850-24T, 16.12.08 (CAT3K_CAA-UNIVERSALK9)

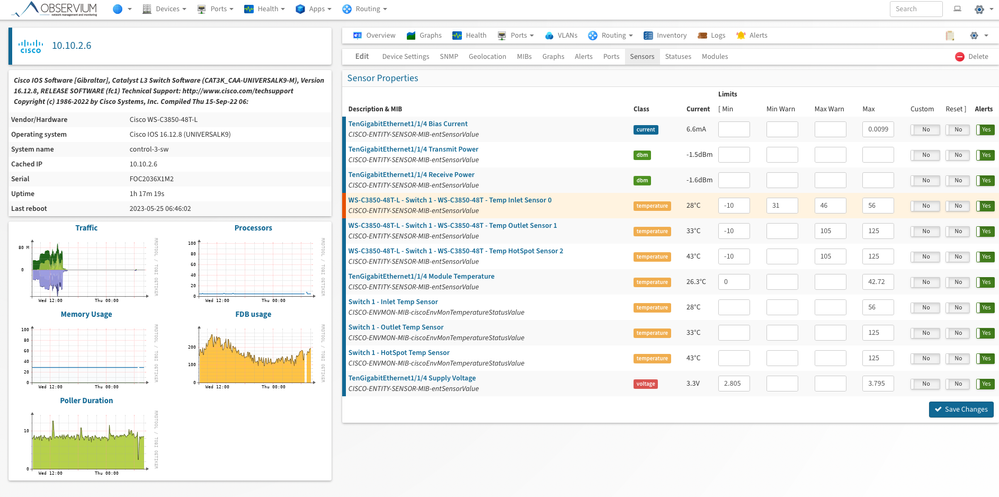

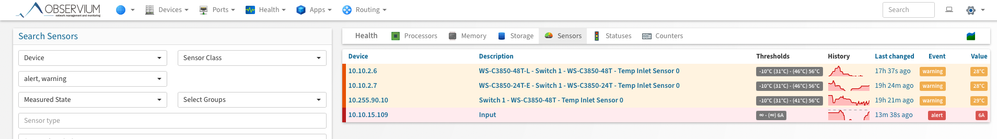

I'm monitoring with Observium and it's showing that the current temperature value is beyond the "Min Warn" value.

This value is being read from the devices. (if I manually change them in the software they re-poll and return)

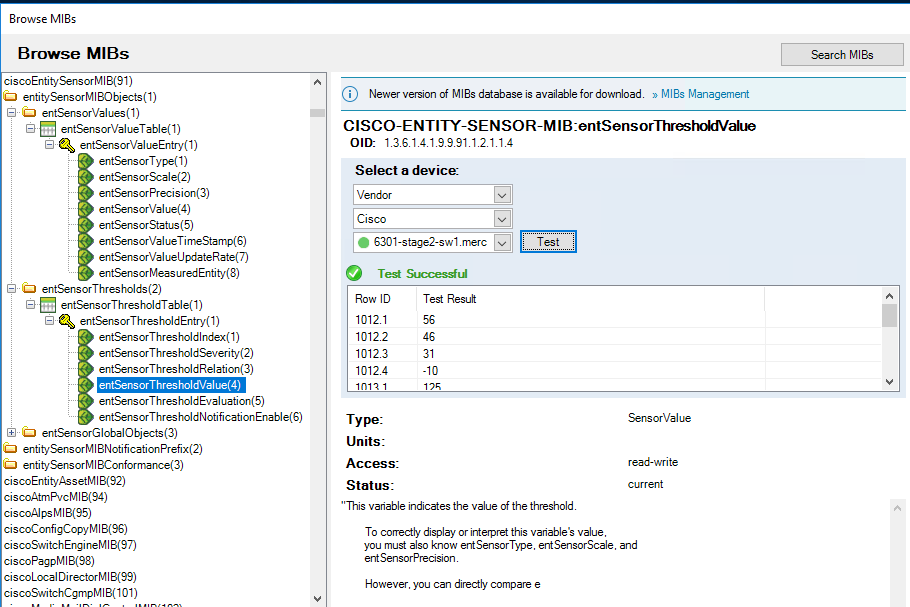

It appears that it's pulling the min value from OID 1.3.6.1.4.9.9.91.1.2.1.1.4 row 1012.3

Does anyone know where I can change that min warn value? It's not appearing in the environment status.

6301-stage2-sw1#show environment temperature status
Inlet Temperature Value: 28 Degree Celsius
Temperature State: GREEN
Yellow Threshold : 46 Degree Celsius
Red Threshold : 56 Degree Celsius

Hotspot Temperature Value: 42 Degree Celsius
Temperature State: GREEN
Yellow Threshold : 105 Degree Celsius
Red Threshold : 125 Degree Celsius

marce1000 · ‎05-26-2023

- You can't change temperature thresholds on the device ,

M.
